Optical Density |
0~3.8D |
|
Spatial Resolution |
40800pixel/line |
|
Film Size |
5" × 7"to 14" × 17" |
|
Detector |
Professional μ-lens CCD |

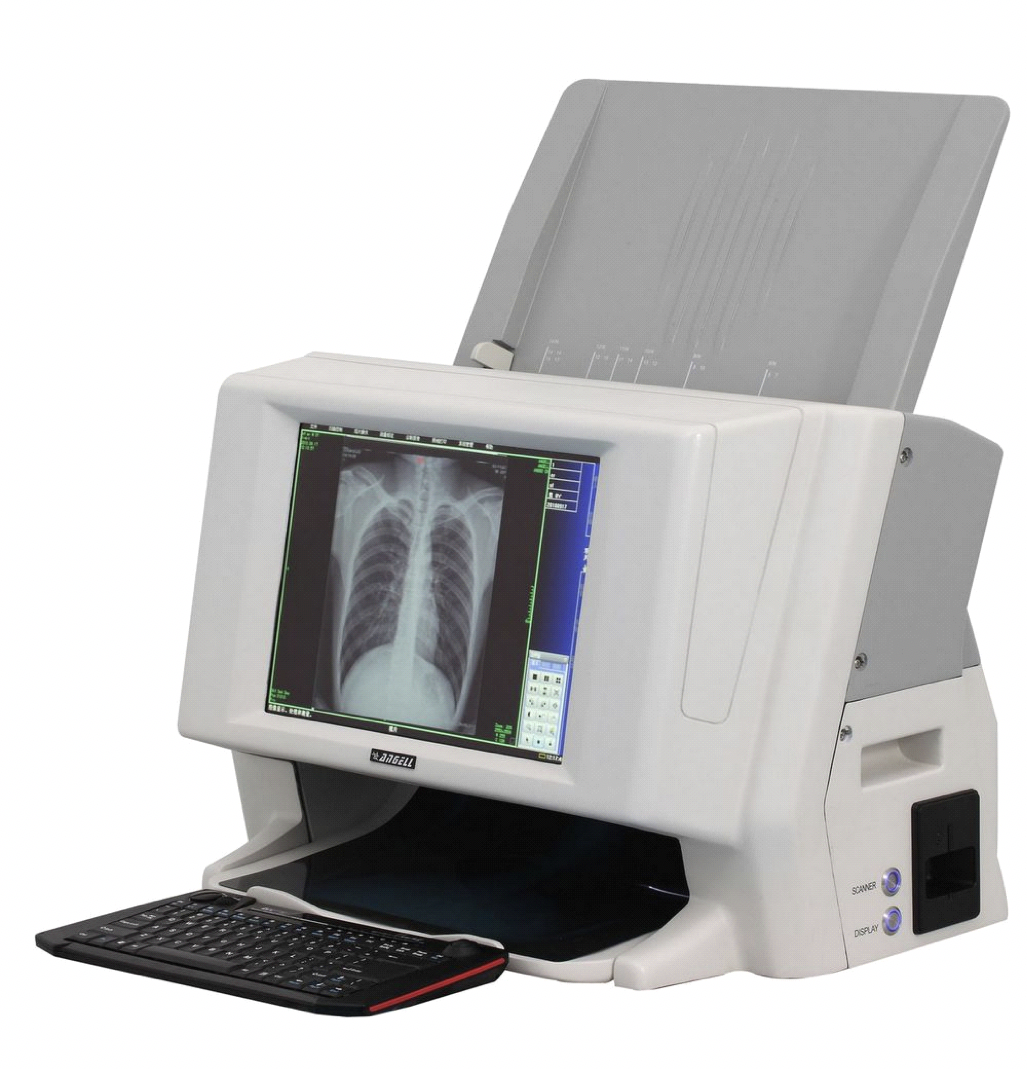

Multifunctional Film Digitizer
CHX-A3G
Leading the future of telemedicine Multi functional film digitizer specification
CHX-A3G digitizer integrates the film digitizer, computer and 3G communication technology, which comes with multifunction, high-performance and integrated characteristics to satisfy the flexible telemedicine and remote collaboration requirements. Angell 3G digitizer can not only provide the high definition digital image but also can be compatible with the 3G wireless network device.
Integrate with multifunction
Easy to read the medical insurance IC card One equipment with double applications
Specification
|
Grayscale |
16bits |
|
Optical Density |
0~3.8D |
|
Spatial Resolution |
40800pixel/line |
|
Film Size |
5" × 7"to 14" × 17" |
|
Operation System |
Win2000/XP/Vista |
|
Operating Environment |
Ambient temperature: 5°~35° Relative |
|
Illuminator |
Cold cathode-ray tube |
|
Film Type |
Medical films, Document |
|
Image Format |
JPEG,DICOM;BMP |
|
Hardware Interface |
USB2.0 |
|
Detector |
Professional μ-lens CCD |
|
Power Requirements |
220V/50HZ/80W |
|
Scanner Dimension |
21.6×15.6×26.4 inch |
Function
· Film Digitizing
Flexibly digitize the x-ray film and the patient information into the DICOM image which is compatible with the international standard.
Completely reappear the detailed information of the scanned film to improve the grayscale value in diagnosis.
· Information Storage
Conveniently store and manage the image, patient information, and report by digital data in professional workstation.
·Image Procession
Various image processing functions: windows level, zoom, pan, crop, invert,
rotation, etc.
Available for measurement in length, angle, square and mark in any area of the
image.
Convenient for research by making comparison with different patient images in
the same interface.
Image division: CT, MRI images can be divided into different single frames to
dynamic display.
Easy to save as JPG, BMP format to use in other documents.
•Diagnosis Report
Professional report functions with the preview images of the patient to prevent the confusion about the film and the report.
•Film Print
Compatible with various film printers; Print films after image processing or integration with different scanned films.
•Case Management
Store and inquiry all patient information in the database of the workstation according to different terms, such as name, age, sex, positioning, etc.
•Network Application
Compatible with the worklist server and PACSserver from LAN or public network, which is useful for telemedicine.
