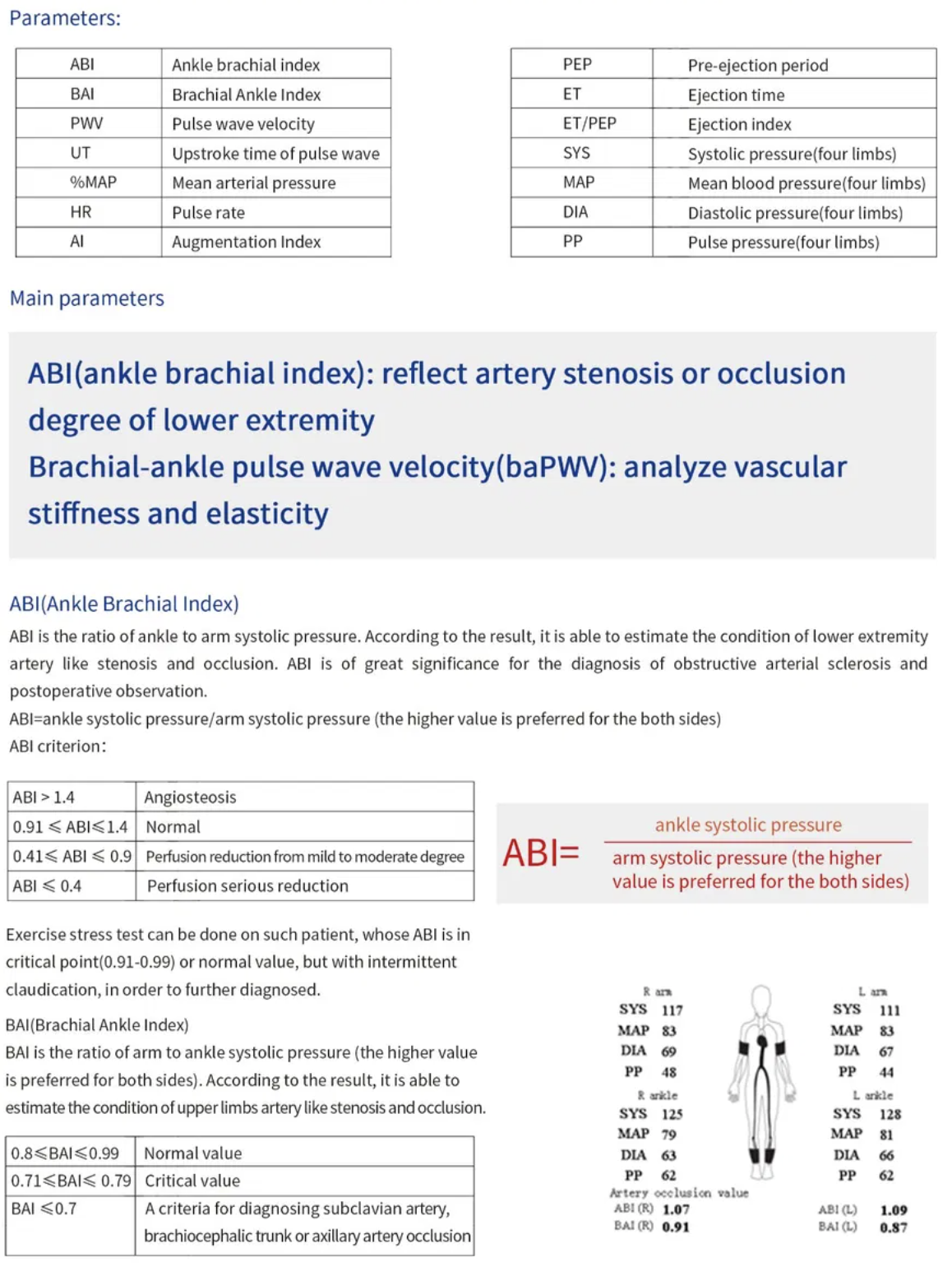

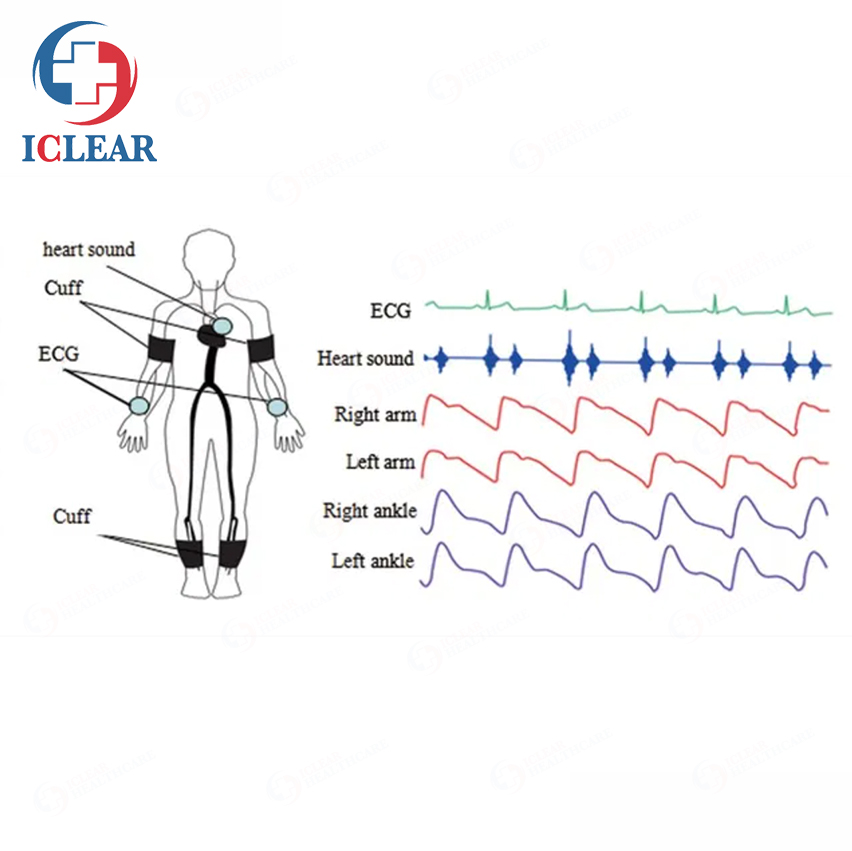

Within the same cardiac cycle, ECG, heart sound and limb pulse wave signals are collected to calculate the pulse wave conduction velocity baPWV to evaluate the degree of vascular sclerosis; limbs are synchronously pressurized and limb blood pressure is measured to calculate the ankle-brachial index ABI, which evaluates the degree of arterial stenosis and obstruction in the lower limbs.
Main application departments: cardiovascular internal medicine, physical examination center, vascular surgery, endocrinology, neurology, hypertension and so on.
Product features
1. Convenient operation, no need for manual intervention after starting the examination, automatic report generation;
2. perfect medical record management, can carry out multiple examinations for the same patient, and provide appointment function;
3. case data review function, users can conveniently browse case data;
4. automatic generation of diagnostic results, users can select diagnostic phrases to edit the diagnostic results;

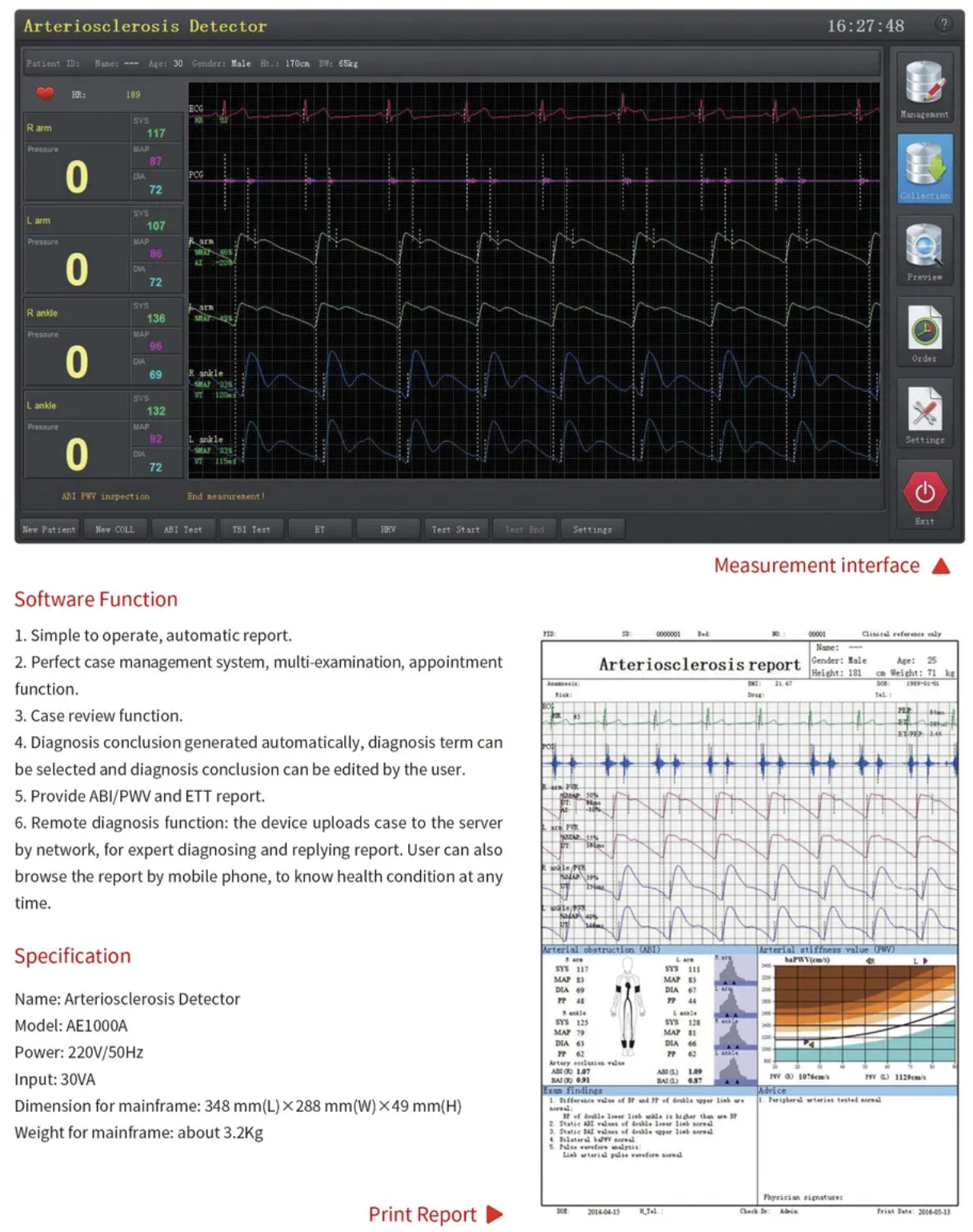

5. provide ABI\PWV report and exercise load report with illustrated contents and clear results;
Physical Characteristics
Product Main unit dimensions (L×W×H)
348 mm × 288 mm × 49 mm Approx. 3.2 kg (excluding accessories)
Module Program:
1000A 248 mm×163 mm×57 mm Approx. 1.7 kg (excluding accessories)
