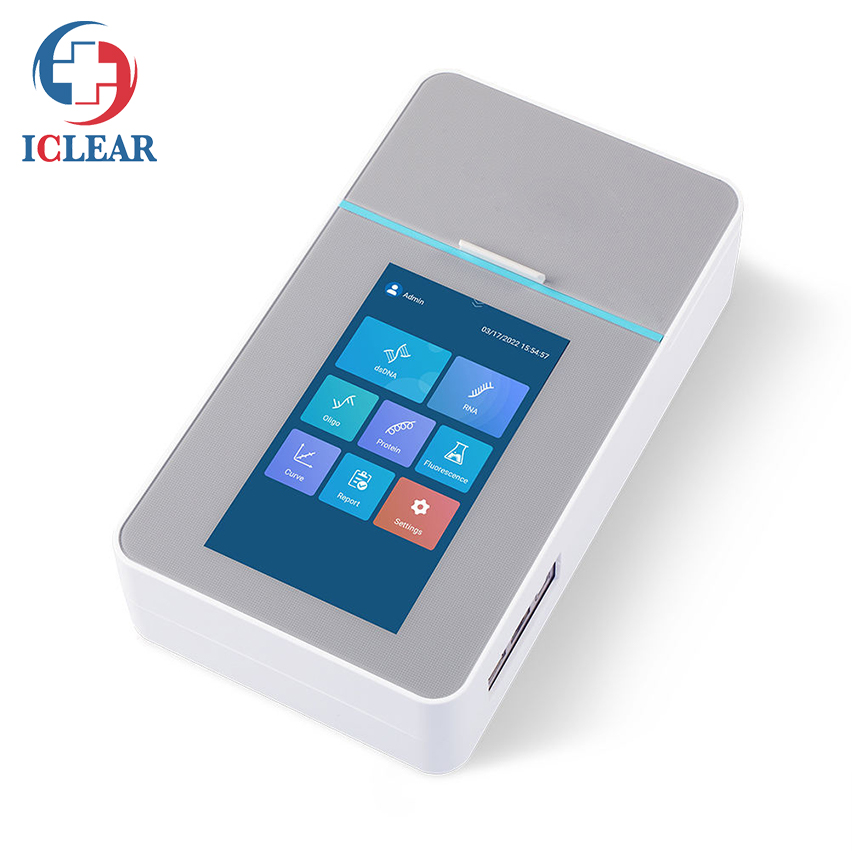

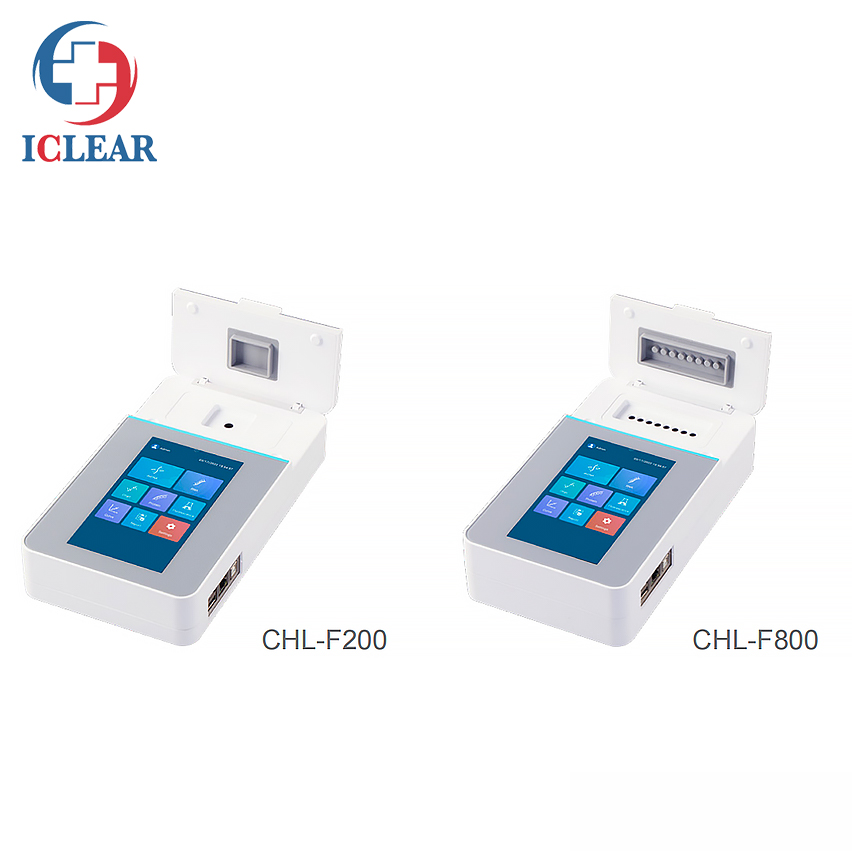

CHL-F200/F800

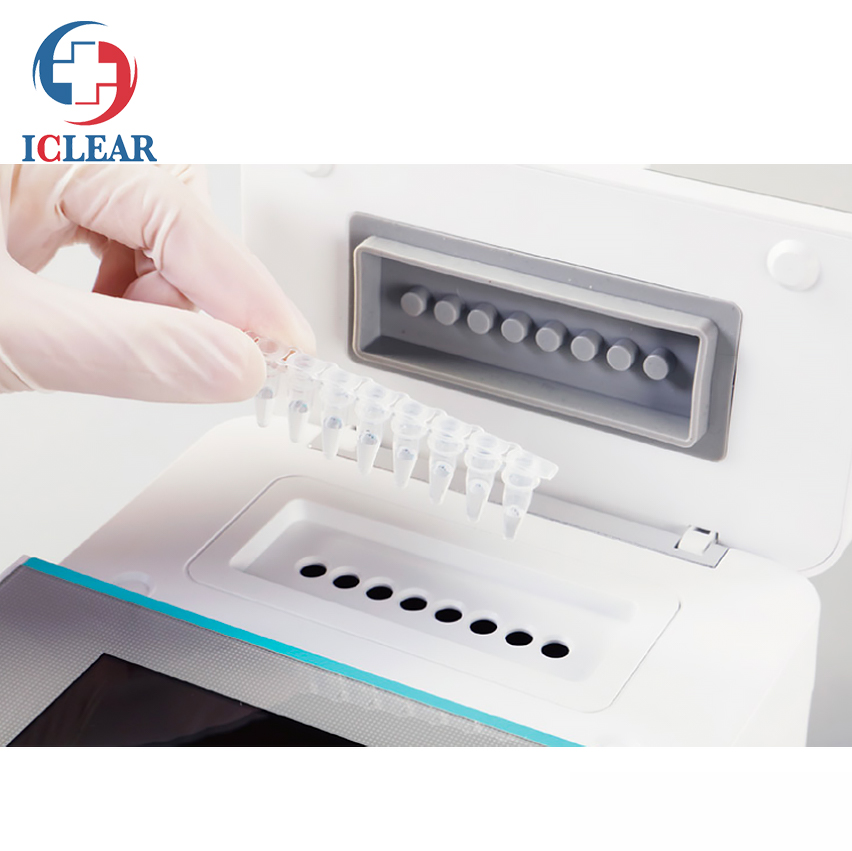

The new fluorometer F200 and F800 are used forhighsensitivity quantitative analysis of DNA, RNA and proteinF800 is available to do the fluorescence detecting for 8samples in simultaneous. High precision detection methodreduces the variation effectively. Easy and humanizedsoftware, intuitive user interface and rapid test methodgreatly shorten the testing time.
| Model | F200 | F800 |
| Light source | Blue LED; Red LED | |
| Excitation filter | Blue: 470±15 nm; Red: 625±20 nm | |
| Emission filter | Green: 525-570 nm; Red: 670-725 nm | |
| Detector | Photodiodes; measurement capability from 320-1100 nm | |
| Sample tube type | 0.5ml PCR tube | 0.2ml PCR tube |
| Linear range | 5 orders of magnitude | 4 orders of magnitude |
| Sensitivity (detection limit) | <0.1 pg/μL (dsDNA HS) | <1pg/μL (dsDNA HS) |
| Measurement time | ≤5 s/sample | ≤6s/8 samples |
| Input power | 24 VDC 2 A | |
| Operating voltage | 100-240 V@50-60 Hz | |
| External port | USB (Type A)×2, USB (Type B)×1, LAN ×1 | |
| Display | 7-inch touch screen | |
| Size(W×D×H) | 161 mm×287 mm×61 mm | 161 mm×287 mm×76 mm |
| Weight | 1.6 kg | 2 kg |
| Storage capacity | 20000 programs | |
