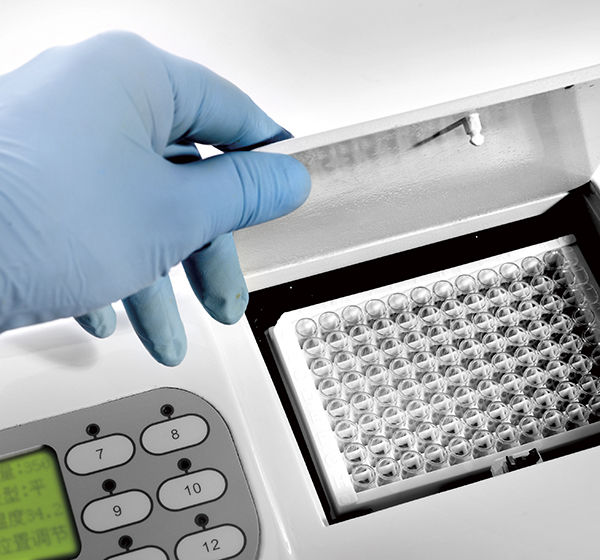

96 Wells Double-line Elisa Microplate Washer
CHL-W120
Unique double-line washes system
Built-in ELISA plate incubator to control the heat cycle temperature (37℃±0.3℃)
Keyboard selects strip cleaning
Easy maintenance of ELISA plate tray
Build-in 100 sets of micro-plate washer programs
Interchangeable wash head for various plates
Variable shaking and soaking time
Automatic liquid monitoring system
Aerosol protects coverage
Double filtering, automatic circle flushing
Separate aspiration probe and soaking probe design, preventing cross-infection
Main technical specifications:
Wash Head: 8-pin, 12-pin, interchangeable
Washes Plate: 8- and 12- strips, 96- strip, 48- Elisa Plate
Washes Flat: Flat-bottom, Round-bottomed, V-bottom, U-bottom
Soak Time: 0.1~9.9
Wash Cycles: 1 to 99
Liquid residue: ≤ 1 μ l / hole
Add liquid uniformity: CV ≤ 2%
Liquid adding: 50-1,000ul adjustable
Liquid level sensor: Waste liquid, lotion or distilled water shortage alarm
Display: 192 * 64 Graphic LCD
Input: Soft Keyboard
Power Supply: AC220V±22V; 50HZ±1HZ
Temperature: 10℃~30℃,
Humidity: ≤70%
Dimension: 43CM (L) *38CM (W)*12CM (H)
Weight: 8kg
