10x plan eyepieces 20mm field of view high eye point up to 21mm
binocular viewing head inclined 30º rotatable 360º
inward facing with positive click stops
condenser with iris diaphragm with phase-contrast/dark-field socket
Coaxial coarse and fine focus mechanism with markings. Fine focus sensitivity 0.001mm
Dust cover clear blue filter power cord immersion oil

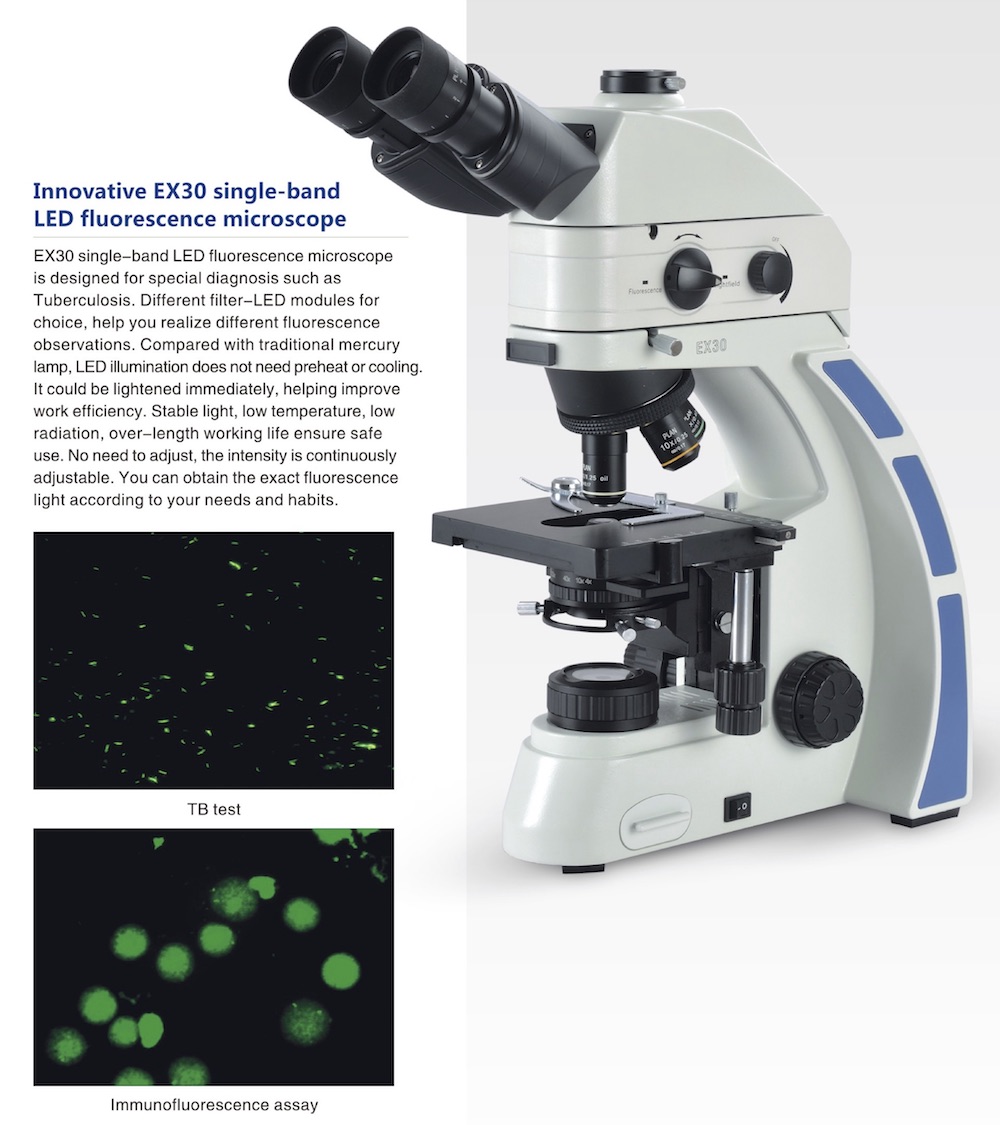

5X Lab Compound Binocular Biological Microscope
CHL-EX30 series
| PL10X20T |
High eye-point wide-field plan eyepiece, PL10X20T, FN20mm with adjustable diopter |
|
| OIP4 | OIP Infinity plan Achromatic objective 4X/0.10,WD=11.9mm | |
|
OIP10 OIP20 |
OIP Infinity plan Achromatic objective 10X/0.25,WD=12.1mm OIP Infinity plan Achromatic objective 20X/0.4,WD=1.5mm |
|
| OIP40s | OIP Infinity plan Achromatic objective 40X/0.65,WD=0.36mm | |
| OIP100s | OIP Infinity plan Achromatic objective 100X/1.25（oil）,WD=0.18mm | |
| EX30BH30R |
30°inclined gemel binocular viewing head, 360° rotatable, interpupillary distance range: 50-75mm |
|
| EX30FLED |
Coaxial focus system with tension adjustable, coarse: 28mm per rotation. with upper limit and tighness adjustment. single high brightness 3W LED (predetermine filament center) with continuous intensity control, external transformer 100V-240V |
|
| BS-NPI4 | Reversed quadruple nosepiece | |
| BS-SGM | 150mmX140mm double layer mechanical stage with underhand, move range 76X50mm, precision 0.1mm. | |
| EX30-CDK1.25 | N.A.1.25 Koehler illuminatory condenser with socket for phase contrast and darkfield accessories | |
| Hexagon spanner M3 | ||
| Hexagon spanner M1.6 | ||
| Foam and paper carton(Size: 57.1X55.4X27.8cm, 1set/ctn) | ||
