High-Frequency Mobile Digital FPD C-arm System

Band nameICLEAR
Model No.CHX-PLX118F
CertificateIOS CE FDA
Add to Favorites

Quick Details

Max rated capacity : Tube Current 4mA Tube Voltage 120kV
 Automatic Fluoroscopy: Tube Voltage:40kV~120kV Adjust Automatically
Tube Current  : 0.3mA~4mA set manually
Manual Fluoroscopy: Continuous Tube Voltage:40kV~120kV
Continuous Tube Current : 0.3mA~4mA
Pulse Fluoroscopy: Continuous Tube Voltage 40kV~120kV
                               Continuous Tube Current 4.1mA~30mA
Pulse frequency: 0.1~25fps Continuously Adjustable

Packaging & Delivery

270cm*191cm*292cm

NW:685KG GW: 880KG

Product Description

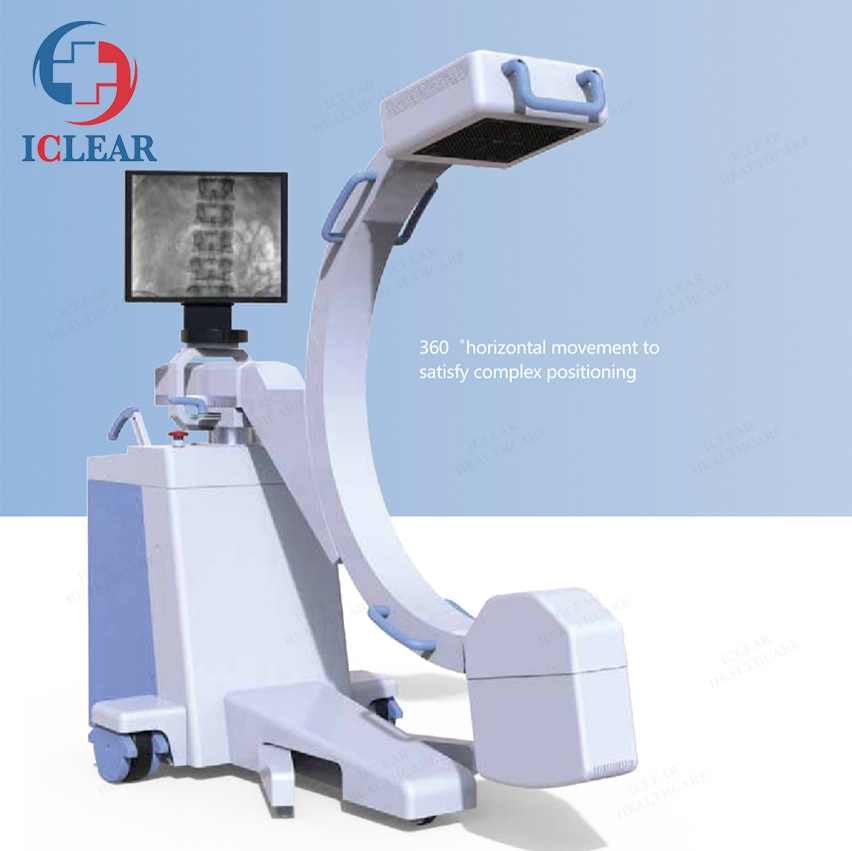

High-Frequency Mobile Digital FPD C-arm System
CHX-PLX118F


Application:
Emergency Department, General Surgery, Spine Surgery, Orthopedics, Urology,
Gynecology, Trauma, Pain Management, Plastic Surgery, Operating Room, etc.

Configuration:

1 C-arm new design mainframe 1 set
2 Combined high-frequency high-voltage X-ray generator monoblock
(5.0kW, 110 kHz,40-120kV)
1 set
3 Thales Imported 9* 9-inch Dynamic flat panel detector 1 set
4 Medical using ultra-low illumination digital radiography 1 set
5 Digital acquisition workstation software 1 set
6 Imported dense grain grid 1 set
7 Electrically adjustable beam (collimator) 1 set
8 19 inch IM medical LCD monochrome monitor 3 sets
9 Unique hand-held controller 1 set
10 Footbrake exposure 1 set

Features:

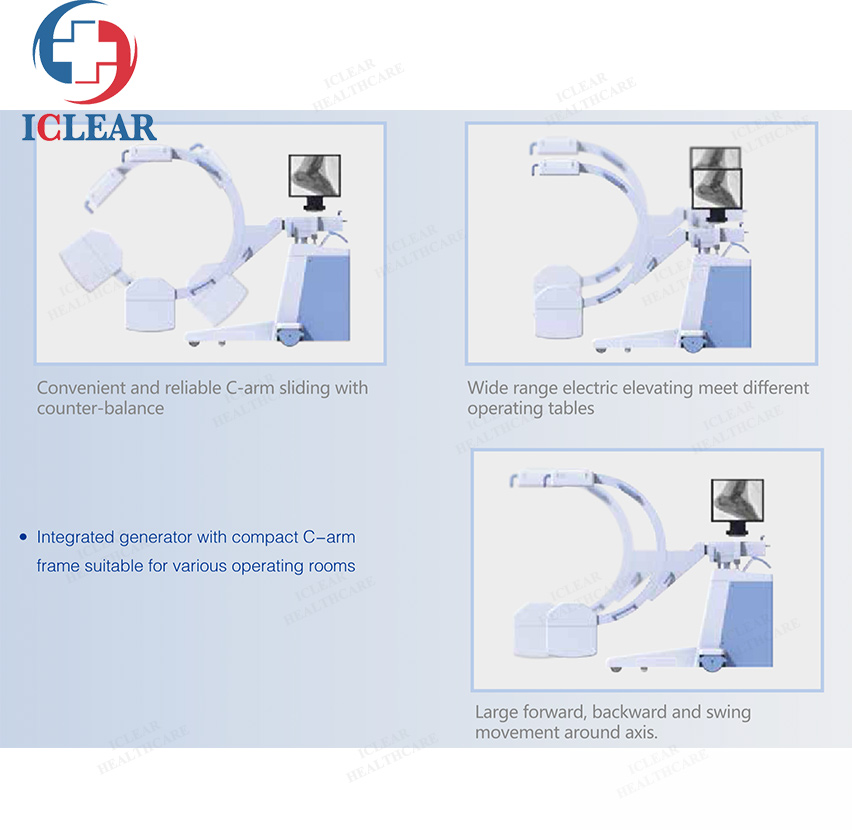

1, With a compact appearance, light design, easy to operate
2, Unique base electric auxiliary support arm design, it's more secure for use.
3, A unique hand-held controller design, convenient to operate working mode.
4, With a high-quality knockdown X-ray generator to reduce radiation.
5, With the Perspective KV, MA automatically track fluoroscopy to make the image brightness and clearness optimum

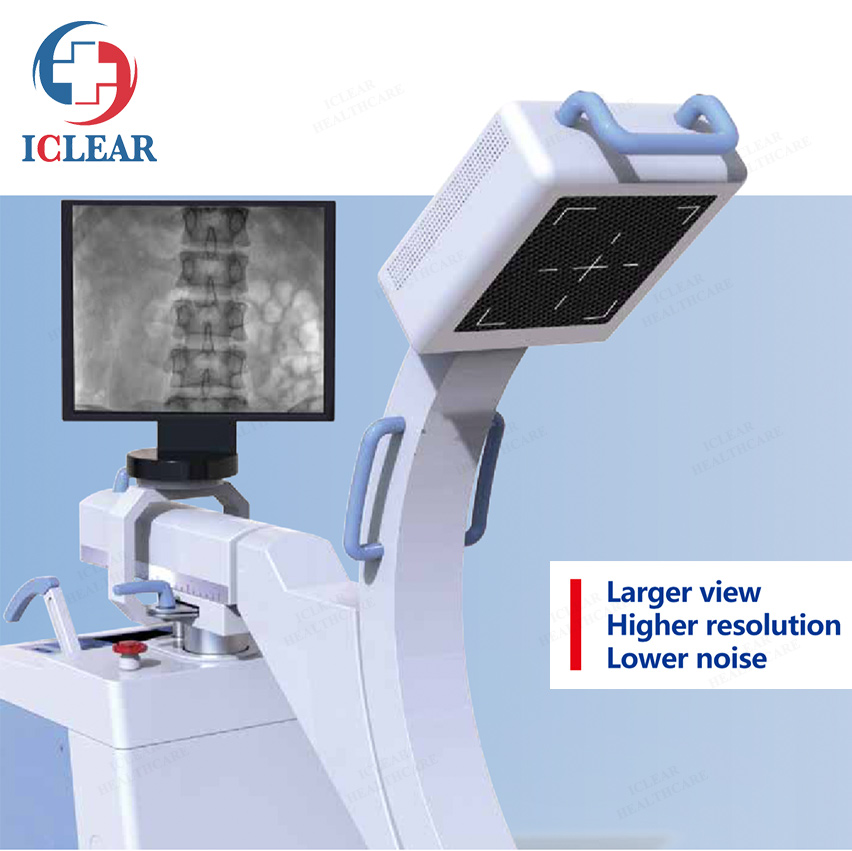

6, imported FPD 9*9inch acquisition, ensure a sharp image.
7, Workstation:
Registration: registration, medical records, Worklist
Collection: Start collection; prepare video, reset, horizontal mirror, vertical mirror, window adjustment, magnifying glass, negative image
Open silhouette, edge enhancement, recursive noise reduction
Processing; four windows, nine windows, sharpening, horizontal mirror, vertical mirror, text annotation, length measurement
Paper Report: save, preview, expert annotation.
Dicom features: Dicom browsing, web service,  Dicom3.0  interface to connect with PACS, OR HIS SYSTEM, and dry film printer

  1. Automatic dynamic motion detection when fluoroscopy to avoid movement-related blurring, no silhouette.
  2. The human graphic interface on the workstation for select different body parts; like children, or adults, lateral or formal standing to do exposure.

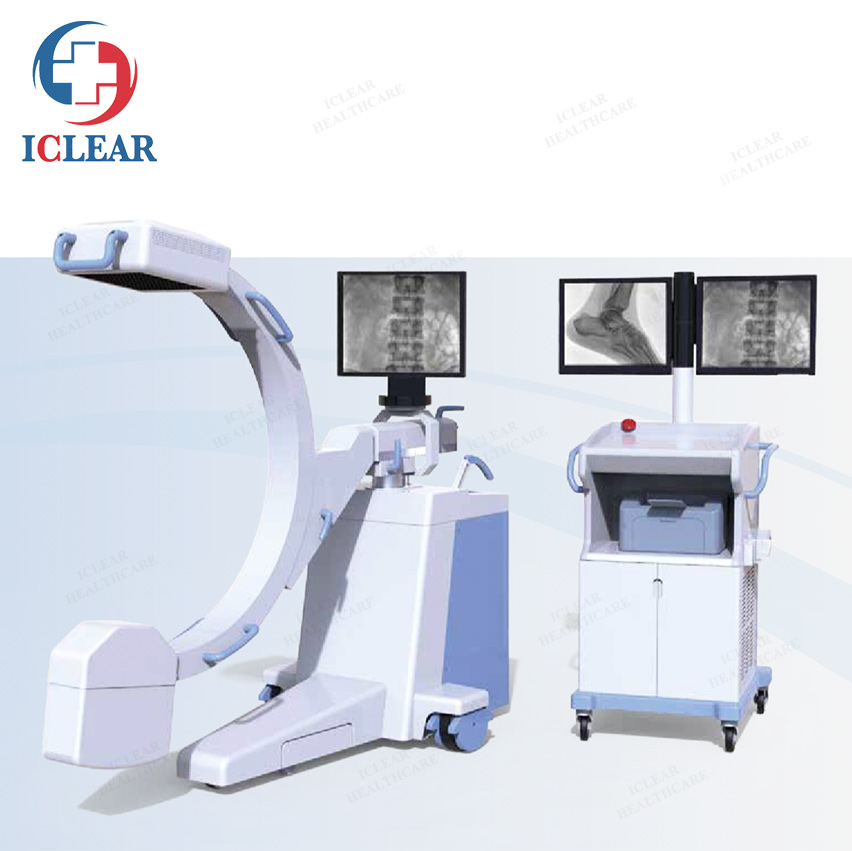

  3. 3 sets of synchronous monitors to help doctors have a great observing experience.
  4. Error Code alarming for overloading of current, kV, or power and any problems.
  5. Equipped with an emergency stop button to sudden failure or wrong operation.
