* Display: 10.4 inch high visibility color TFT display
* Ventilation Mode: SIPPV, IPPV, SIMV, PSIMV, PSV, CPAP, PCV
* Minute Volume: Greater than or equal to 18L
* Back~up Power Supply: At least 4 hours
* Tidal Volume: Adjustable range: 20~1500ml, Display range: 0~2000ml

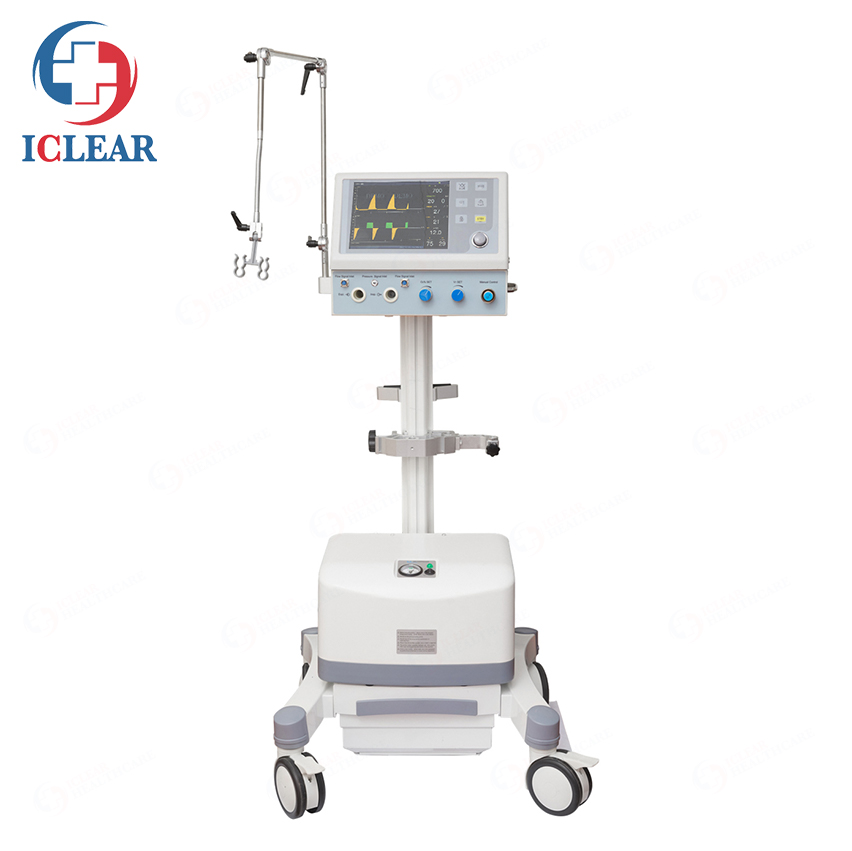

Hospital Advanced Economic Medical ICU Ventilator PA900B for Critical Care
CHH-PA900B series
* Display: 10.4 inch high visibility color TFT display
* Ventilation Mode: SIPPV, IPPV, SIMV, PSIMV, PSV, CPAP, PCV
* Minute Volume: Greater than or equal to 18L
* Back~up Power Supply: At least 4 hours
* Tidal Volume: Adjustable range: 20~1500ml, Display range: 0~2000ml
* Respiratory Rate: 1~99bpm
* Inspiratory/expiratory (I:E) ratio: 4:1~1:4
* PEEP: 0~10cmH2O
* SIMV Rate: 1~20bpm
* Inspiratory Pressure Trigger: ~10~10cmH2O
* Trigger Sensitivity (flow): 1~10L/m
* Inspiratory Plateau: Adjustable from 0~50% of inspiratory time
* Adjustable Oxygen Concentration: 21~100%
* Gas Supply Requirement: 280~600 kPa medical grade oxygen and compressed air supply
* Pressure Limit: 1.0kPa~6.0kPa
* Maximum Safe Operating Pressure:≤6.0kPa
* Tidal Volume Alarm: Upper Limit: 10~2000ml, Lower Limit: 0~1800ml
* Airway Pressure Alarm:Upper Limit: 0.1~6kPa, Lower Limit: 0~5kPa
* Oxygen Concentration Alarm:Upper Limit: 22~100%, Lower Limit: 21~80%
* Air compressor PN~3000
