PRODUCT DETAILS

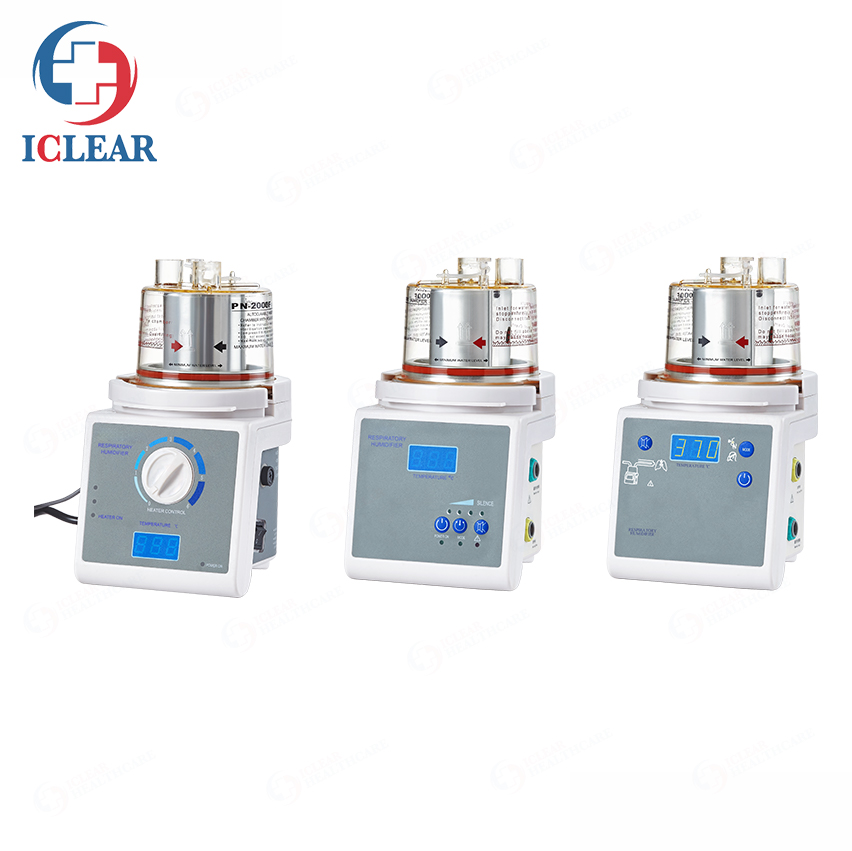

Adult/Infant Respiratory Heated Humidifier Compatible with F&P Mr850
Band nameICLEAR
Model No.CHH-VH850
CertificateISO
Add to Favorites
Quick Details
Over-heat protection: 115 ±3ºC
Range of temperature setting: invasive model: inlet: 40ºC outlet: 37ºC, noninvasive model: inlet: 34ºC outlet: 31ºC
Alarm parameter: airway: too high/low alarm, inside pipeline: too high/low alarm
Packaging & Delivery
100*630*840 mm 1.5KG
Product Description
Adult/Infant Respiratory Heated Humidifier Same Function with F&P Mr850
CHH-VH850
Instruction
VH850 humidifier cna match with ventilator, it applied to ICU, oy any where respiration needed.
purposeincrease the temperature and humidity of the gas in the breathing circuits.
principlehumidifier should match with chamber which is full of distilled water.
characteristicprecise temperature control
accessorieschamber, conducting wire, temperature sensor wire.
applicationapplied to all brand adult/infant ventilator/CPAP.
1.Voltage: 220 ±22V
2.Supply frequency: 50-60Hz
3.Capacity of connection: ≤60W
4.Capacity of heating: ≤150W, 110ºC
5.Over-heat protection: 115 ±3ºC
6.Range of temperature setting: invasive model: inlet: 40ºC outlet: 37ºC,noninvasive model: inlet: 34ºC outlet: 31ºC
7.Alarm parameter: airway: too high/low alarm,inside pipeline: too high/low alarm
Advantages:
1.Patients with sputum more smooth.
2.Pre-atomization or airway drop is not necessary for sputum aspiration.
3.Pulmonary infection was significantly reduced.
4.Convinent operation.
5.Temperature control and humidity settings can enhance patient comfort.
6.Application: adult, infant, and neonates.
