Handheld Medical Vein Detector Vein Viewer
CHI-V3
Structure

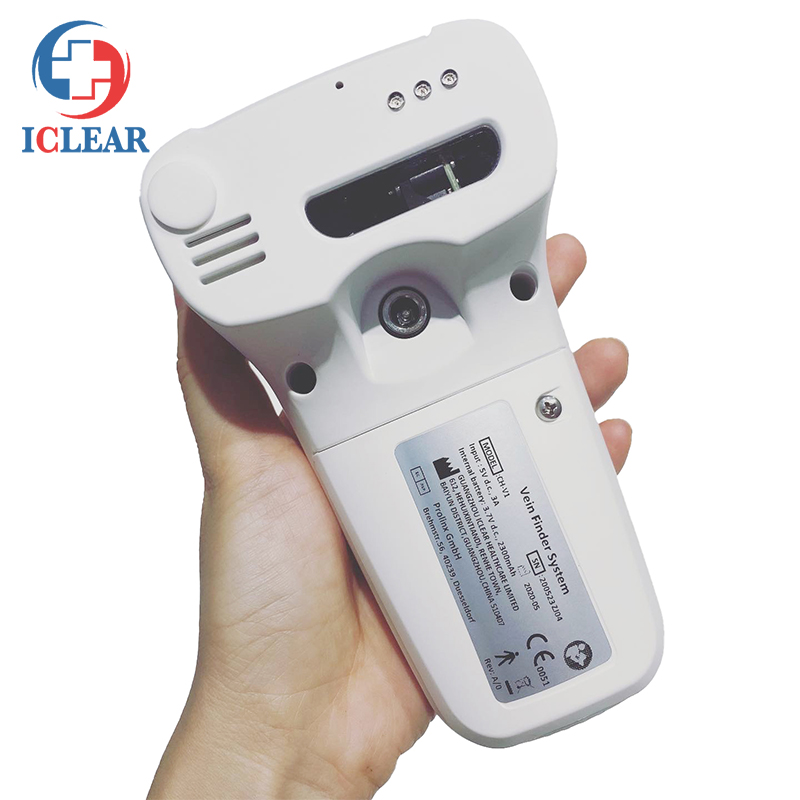

Handheld portable infrared vein finder consists of light source, image processing module, battery, and case. The case includes function buttons and indicator lights.
Intended Application
Finding subcutaneous veins.
Operating Principle

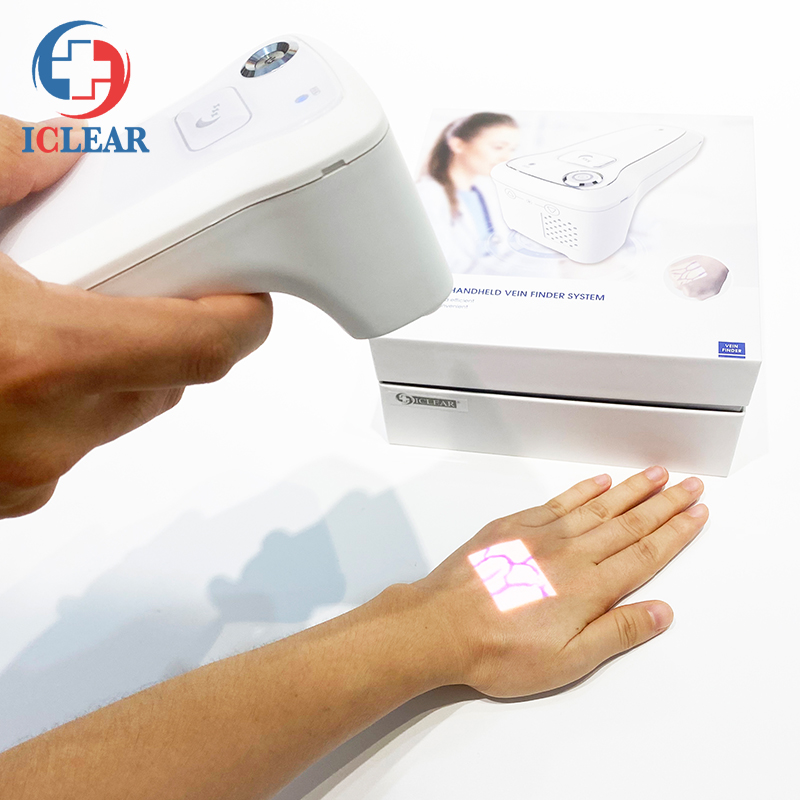

A handheld portable infrared vein finder acquires the image of subcutaneous veins, the image which results from dealing with image signal is projected onto the surface of the skin. Thus, subcutaneous vein images will be displayed on the skin surface of the corresponding position.
Technical Parameter
Effective positive projection distance: 29cm~31cm
Light projection: 300lux~1000lux
Active radiation contains wavelength light: 750nm~980nm
Electrical source: lithium-ion polymer batteries
Service voltage: d.c. 3.0V~4.2V
Net weight: 0.28±0.02kg
Prevent into the liquid level: IPX0
Method of Application
Before using the product, medical staff should be familiar with how to correctly locate it in order to get the best detection effect. In the process of use, it is recommended that the medical staff take a touch and visual observation information for reference, combined with the projected image results to determine the actual location of veins. Please try to keep observed skin smooth and tight, give priority to choose areas of the organization with fewer scars, spots, or hair.
