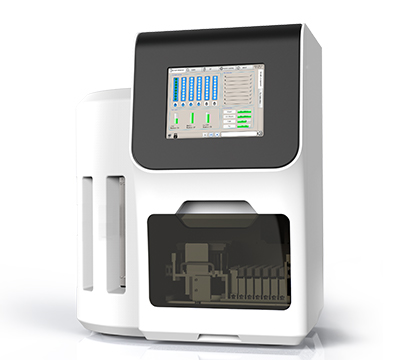

POCT Fully Automated immunofluorescence Quantitative Analyzer
CHL-G1600
CHL-G1600 is a bench-top diagnostic analyzer. Combined together with bar-coded, ready-to-use strip cassettes, Getein1600 is designed to deliver accurate testing results in minutes. The elegant design makes Getein1600 can be used to great advantage in both routine and EMERGENCY testing situations in the clinical arena. Considering Its superior performance, compact design, easy of use, and minimal maintenance, Getein1600 is the optimal choice for clinics, research laboratories, and biotechnology companies.
TEST ITEMS
Cardiac Marker-- cTnI, NT-proBNP, D-Dimer, CK-MB, NT-proBNP/cTnI, CK-MB/cTnI, CK-MB/cTnI/Myo, hFABP, CK-MB/cTnI/hFABP
Renal Function--CysC, mAlb, NGAL, β2-MG
Inflammation Monitoring-- hs-CRP+CRP, PCT
Diabetes--HbA1c
Fertility--HCG+β
|
Assay Method |
Lateral Flow Chromatograpgy (Immunofluorescence) |
|
Test Result |
Quantitative |
|
|
|
|
Sampling Material |
Whole blood, plasma, serum, urine |
|
Language |
English/Chinese
(Spanish, French, German, Russian, Arabic, Vietnamese etc. are under developing)
|
|
Display |
10.4 Inch LCD Screen; Resolution 800 x 600 |
|
Printer |
Internal Thermal Printer |
|
Working Environment |
Relative Humidity < 70%
Air Pressure 70.0kpa ~ 106.0kpa
|
|
Power Supply |
AC 100~240V, 50~60Hz |
|
Data Storage |
10,000 results can be saved |
|
Dimensions |
Height 620mm
Width 410mm
Length 530mm
|
|
Weight |
55 KG |
Test Procedures:
1. Switch on the device power and turn on the printer, entering the testing interface
3. Add the blood samples and dilute in turn
2. Put in coated wells and pipette tips
4. Put the testing cartridge clip into the analyzer
5. Select the test item and click the item button to start test
6.Select all designed test items and start to fully automatic test. The results will be printed and uploaded automatically.
