Rapid test: 4-10 minutes for results

Applied samples: Whole blood plasma and serum

High precision: Typical CV% at cutoff is less than 10%

Multi-channel testing: Up to 10 channels

Easy operation: CLIA waiver compliance

High sensitivity: pg/ml

Ultra wide dynamic range: Up to 9 orders of magnitude

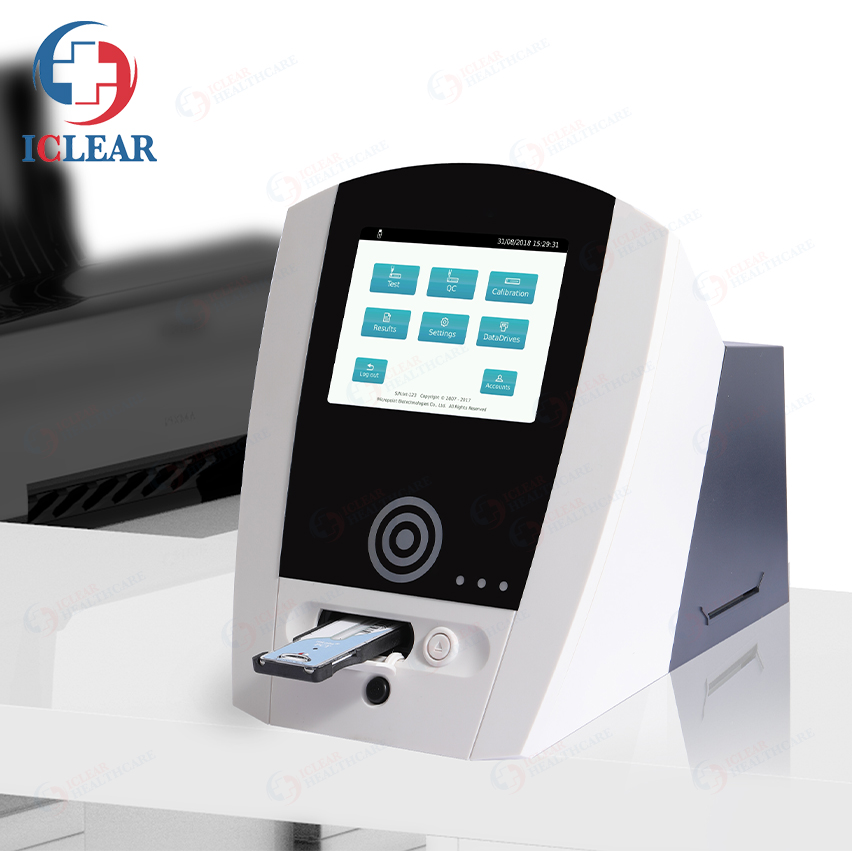

Precision POC Testing Device/Dry fluorescence immunoassay analyzer

CHL-iLab100

The mLabs Platform is an immunoassay diagnostic platform based on our patented micro-fluidic technologies and advanced fluorescence detection. The result is an accurate, rapid, and reliable POCT system. This compact unit helps diagnose of a number of cardiac diseases within minutes, including deep vein thrombosis, pulmonary embolisms, stroke, sepsis, heart attack, congestive heart failure, and angina.

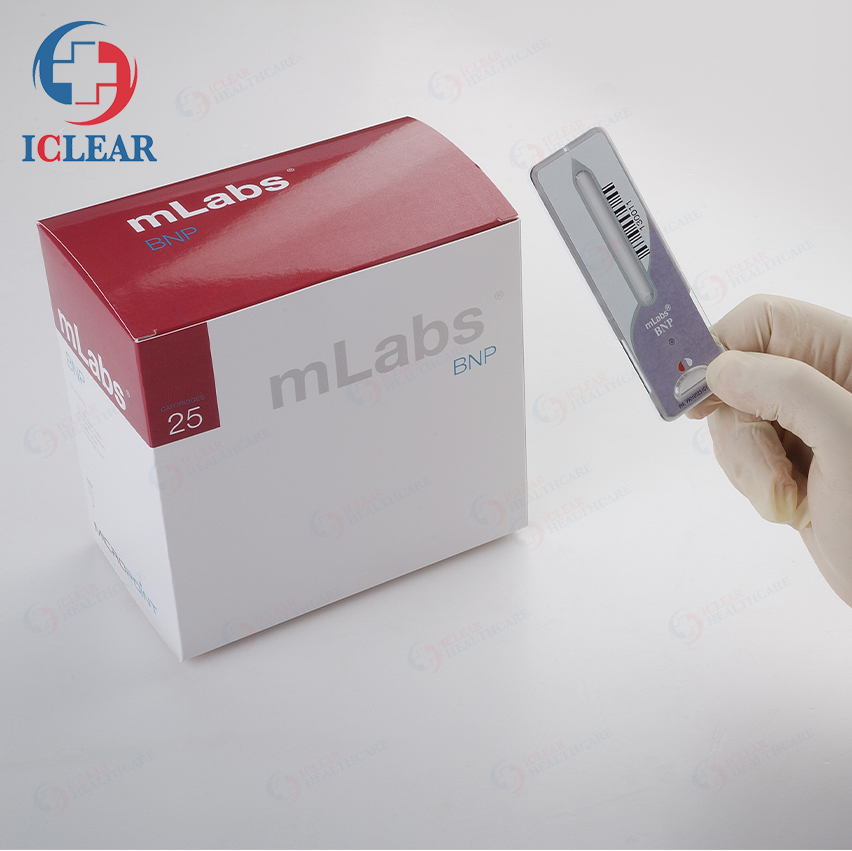

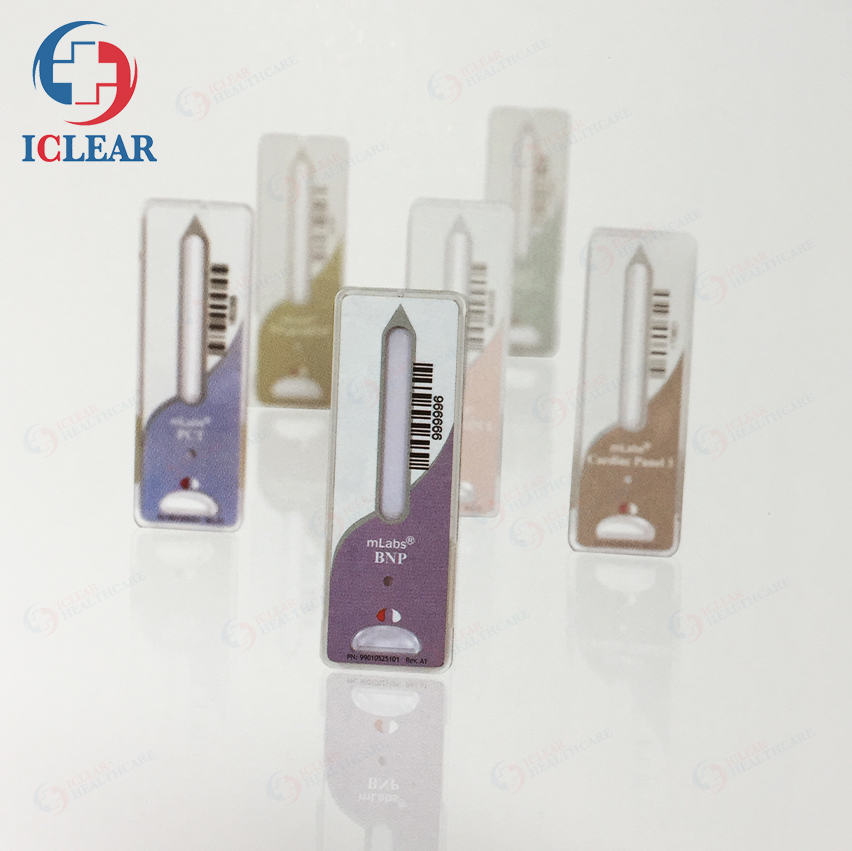

The platform includes the Immuno-meter and disposable microfluidic cartridges.

Features include:

Rapid test: 4-10 minutes for results

Applied samples: Whole blood, plasma and serum

High precision: Typical CV% at cutoff is less than 10%

Multi-channel testing: Up to 10 channels

Easy operation: CLIA waiver compliance

High sensitivity: pg/ml

Ultra wide dynamic range: Up to 9 orders of magnitude

Diagnostics on Demand for POC

A quantitative immunoassay rapid testing platform

Features

• CLIA waiver compliance

• LIS connectivity

• Real time smart internal feedback loop

for optical signal calibration

• mLabs® data drive for auto QC

• Integrated internal barcode scanner

Detection Method

Highly precise and reliable quantitative fluorescent

detection

Wide Dynamic Range

Dynamic tunable testing technique

Wide diagnosis range, pg/ml-μg/ml


Ease of Use

One touch performance

Results in 4 to 8 minutes

High Repeatability

Less than 1%

Available mLabs Tests:

D Dimer

BNP

NT-proBNP

PCT

Troponin I

Cardiac Panel 3

Collection Tubes


Interface

Display:

Keyboard:

I/O:

Printer:

5.7" color display

Touchscreen

USB x2, RS232 X1, RJ45 x1

Built 55mm thermal printer

Memory Capacity

Patient records: Stores up to 1000 patient records

QC Sample results: Stores up to 100 QC results

Optics

Tunable testing range:

Reporting range:

pg/ml - g/ml

1 pg/ml ~ 100g/ml

Software

OS: Windows

Patient Detection: Parameter Specific

Language: Multi-language
