CRISPR-based Mini Real Time Isothermal Fluorescence PCR Analyzer
CHL-Gene8C/Gene8C2

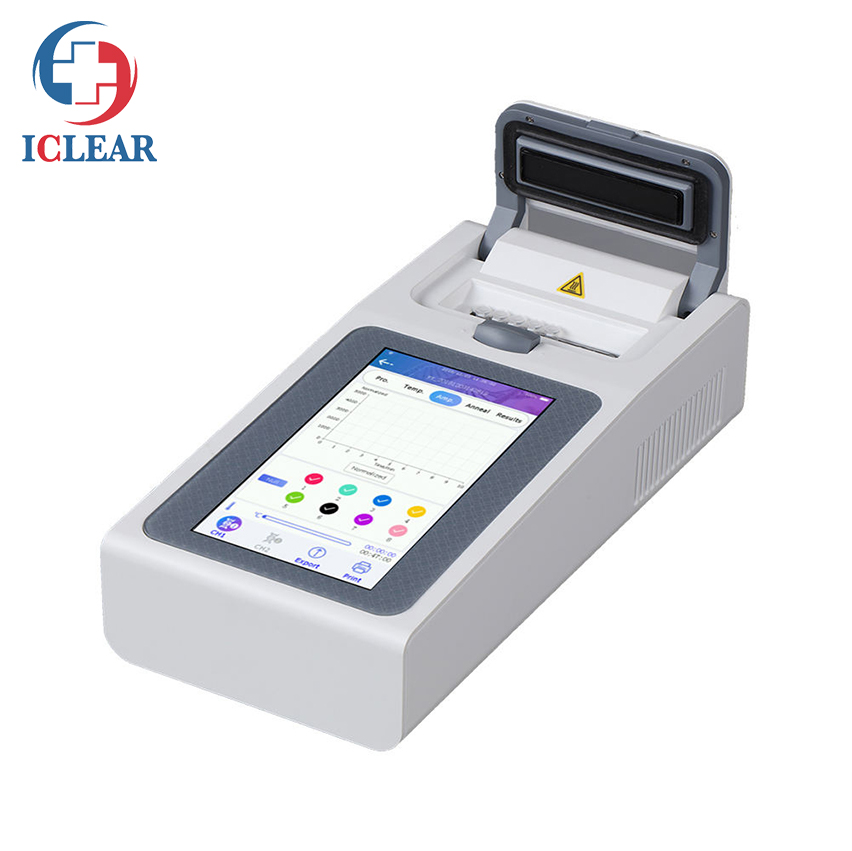

CHL-Gene-8C/Gene-8C2 is an Isothermal fluorescence PCR instrument, it is a compact, lightweight, low cost, stand alone, sensitive instrument suitable for field based and point of care diagnostic applications.
The Gene-8C/Gene-8C2 is a portable instruments that provides measurement of one fluorophore, and the Gene-8C2 provide measurement of two fluorophores.
We designed these to run any isothermal amplification method that employs target detection by fluorescence measurement. The CHL-Gene-8C/Gene-8C2 boast low power requirements and includesa rechargeagle Lithium-polymerbattery that can keep it running for 2-5 hours.
CHL-Gene-8C/Gene-8C2 have a 7inch touch screen. Realtime temperature and fluorescence data are displayed graphically and in real-time during a run and all of the data are held in the instrument's large internal Flash memory. These data are permanently stored and can be reviewed at any time after the run has finished or uploadedto a PC or an android mobile via USB link or WIFI.
Features
1. Small footprint, low-cost and easy to use, suitable for bench top and field applications
2. Purpose-designed sophisticated instruments that support any isothermal DNA/RNA amplification method employing fluorescence readout
3. 7 inch touchscreen, and offers stand-alone operation, it no need for a host computer

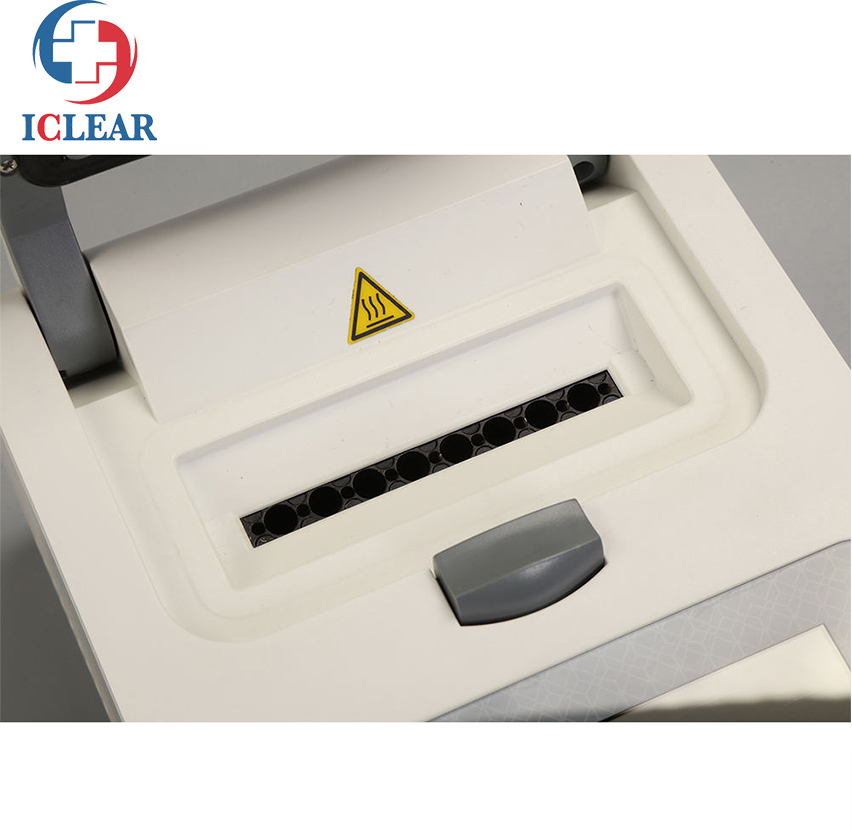

4. Support eight standard 0.2ml tubes
5. One channel or two channel fluorescence detection per tube

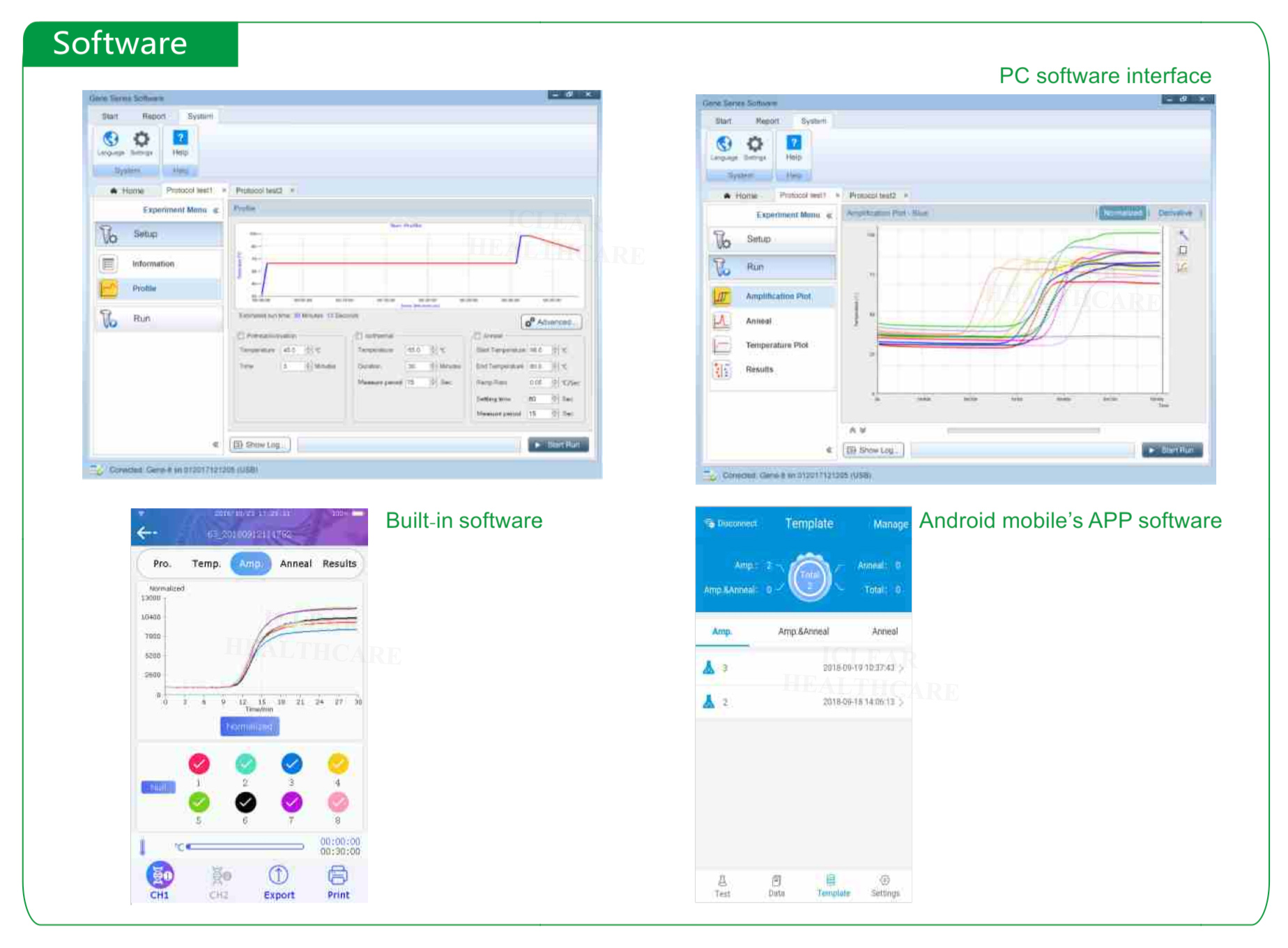

6. Easy to use advanced desktop software and APP software (Android mobile) for the test configuration management and export
7. Testing temperature range: RT. to 99℃

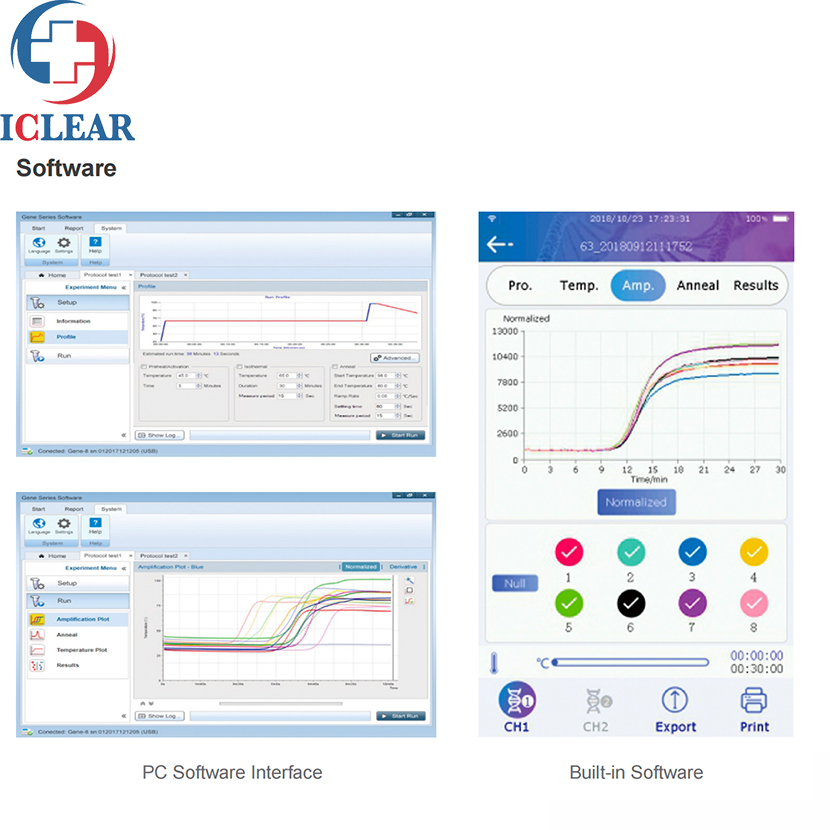

8. PC software, APP software and bulit-in software for powerful and validated data analysis and review
9. Easy access to data via USB interface and WIFI
10. Use independently via touch screen, link to computer via a USB cable or link to android mobile via WIFI
11. To link printer via USB cable and print the text data and results which you require
12. Mains or battery-powered
|
Model |
CHL-Gene8C |
CHL-Gene8C2 |
|
Sample Number |
8 wells (1x8 strip) |
8 wells (1x8 strip) |
|
Sample Volume |
15ul-150ul |
15ul-150ul |
|
Touchscreen |
7 inch |
7 inch |
|
Temperature control range |
ambient - 99℃ |
ambient - 99℃ |
|
Temperature accuracy |
±0.1℃ |
±0.1℃ |
|
Temperature uniformity |
±0.15℃ |
±0.15℃ |
|
Heating speed |
2℃/S |
2℃/S |
|
Cooling speed |
2℃/S |
2℃/S |
|
Channels |
one |
two |
|
Power Adapter |
DC15V 8A |
DC15V 8A |
|
Dimensions (WxDxH) mm |
145x305x100mm |
145x305x100mm |
|
Weight |
1.9kg |
1.9kg |
