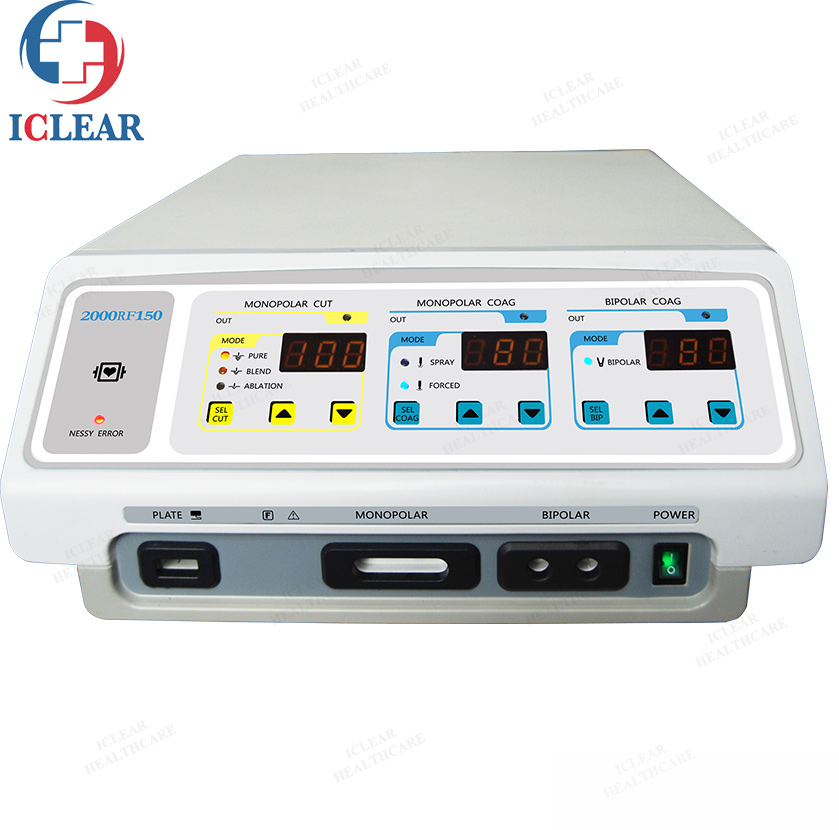

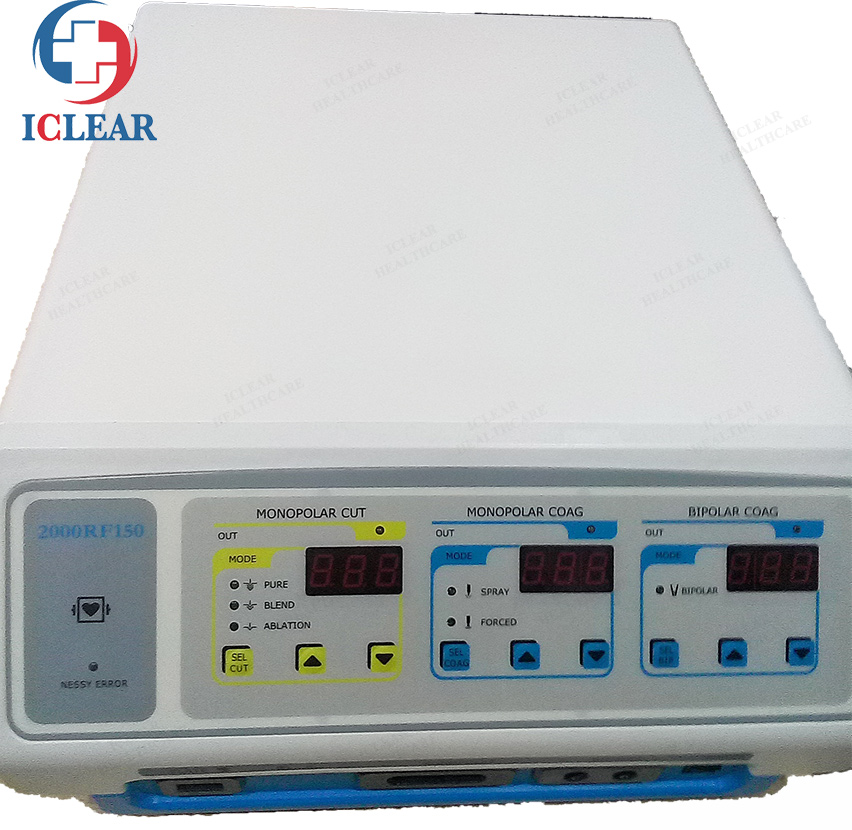

150 W Bipolar Coag Radiofrequency Surgical Electrocautery Unit
CHW-2000RF
Main Features
-
Max 150W Radiofrequency Surgical Unit, with mono-polar and bipolar function.
-
Six working modes: pure cut, blend, ablation, spray coag, forced coag, bipolar coag.
-
Wide clinical applications, such as the general surgery, dermatology, orthopedic surgery, cardiology, gynecology, , oncology, neurosurgery, ophthalmology, ENT, Stomatology, etc.
-
Microprocessor controlled, digital display. With audible and visual indicators and errors codes during the process of outputting.
-
Both hand and foot controlled.
-
Separate power display and outlet socket for mono-polar cut, mono-polar coag,and bipolar coag, each output can be individually configured.
-
It redefines the surgical results with 4MHz radio wave technology, minimizes heat dissipation and cellular alteration while cutting and coagulation soft tissues.
-
Low temperature, non-carbide, no adhesion, Less bleeding, quick recover.
-
Protection against over-voltage and over-current.
-
Convection refrigeration without ventilator.
-
Mounted on a 4 wheels cart(optional).
Technical Specifications
Power: 220V±22V, 50Hz±1Hz(110V±11V, 60Hz)
Operating frequency: a)Monopolar:4MHz b) Bipolar:1MHz
Power rating: 1100VA±10％
Six working modes:
◆Mono-polar Cut
a) Pure cut：1W～150W( Load 700Ω)
b) Blend：1W～100W(Load 700Ω)
c) ablation：1W～100W(Load700Ω)
◆Mono-polar Coag
d) Spray Coag：1W～80W( Load 700Ω)
e) Forced Coag：1W～100W( Load 700Ω)
◆Bipolar
f) Bipolar Coagulation: 1W～120W( Load 200Ω)
◆Power Consumption: ≤1100VA

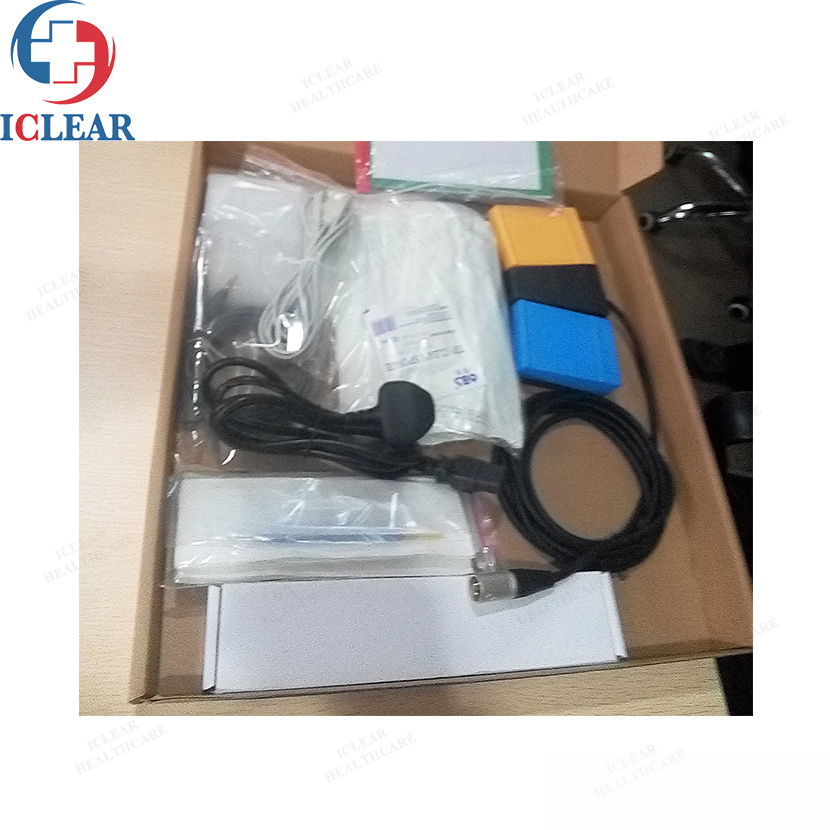

Configuration Sheet
Electrisurgical Pencil 5pcs
Neutral Electrode 1pcs
Neutral Electrode cable 1pcs
Footswitch 1set
Bipolar Forceps 1pcs
Bipolar forceps cable 1pcs
Electrodes 10pcs
