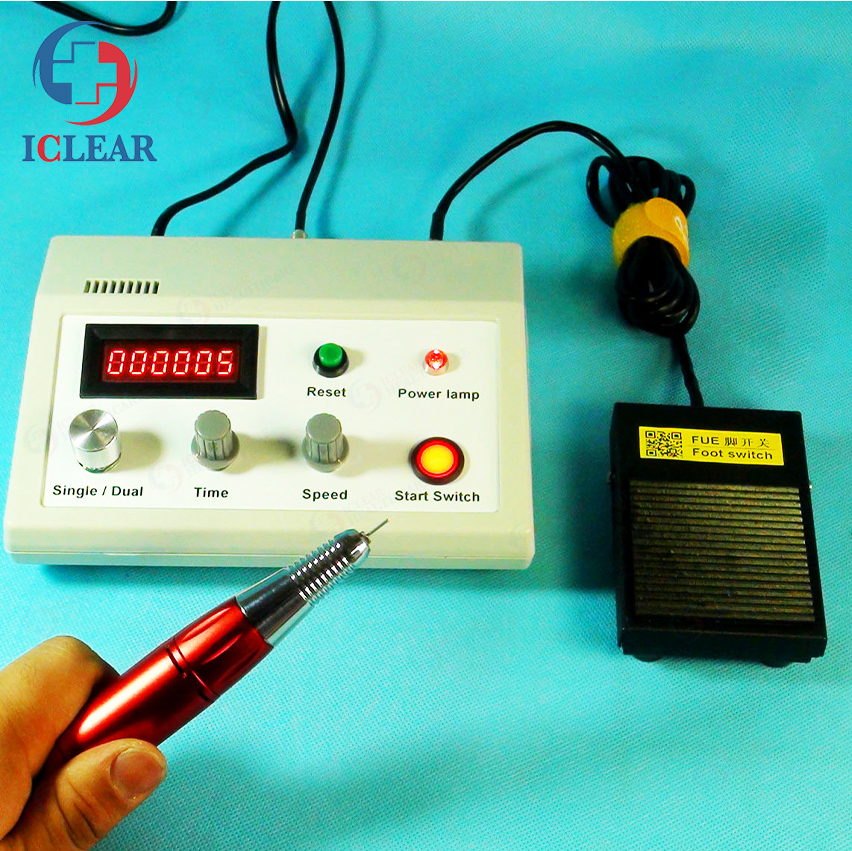

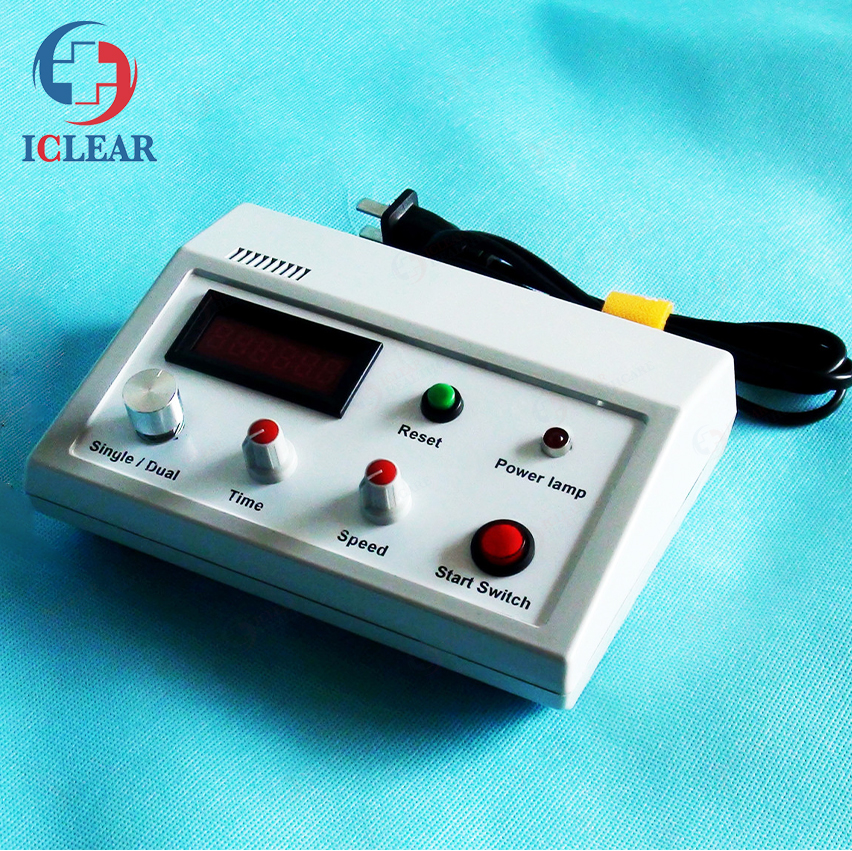

Product Overview:
This product adopts an integrated circuit (chip) as the central control, and the foot switch realizes simple operation function switching and accurate counting of the number of operations during the operation process. The electric handle is very lightweight, greatly reducing the operating intensity. Precision instruments are suitable for scientific research, transplantation, extraction, laboratory, and other industries.

Product features:
1. F1A can achieve a dual display of counting and rotation (handle rotation synchronization)
2. F1A forward and reverse rotation, adjustable speed, ultra-low noise
3. Brushless DC motor with handle, high-temperature disinfection concentricity, long service life
4. Low machine failure rate

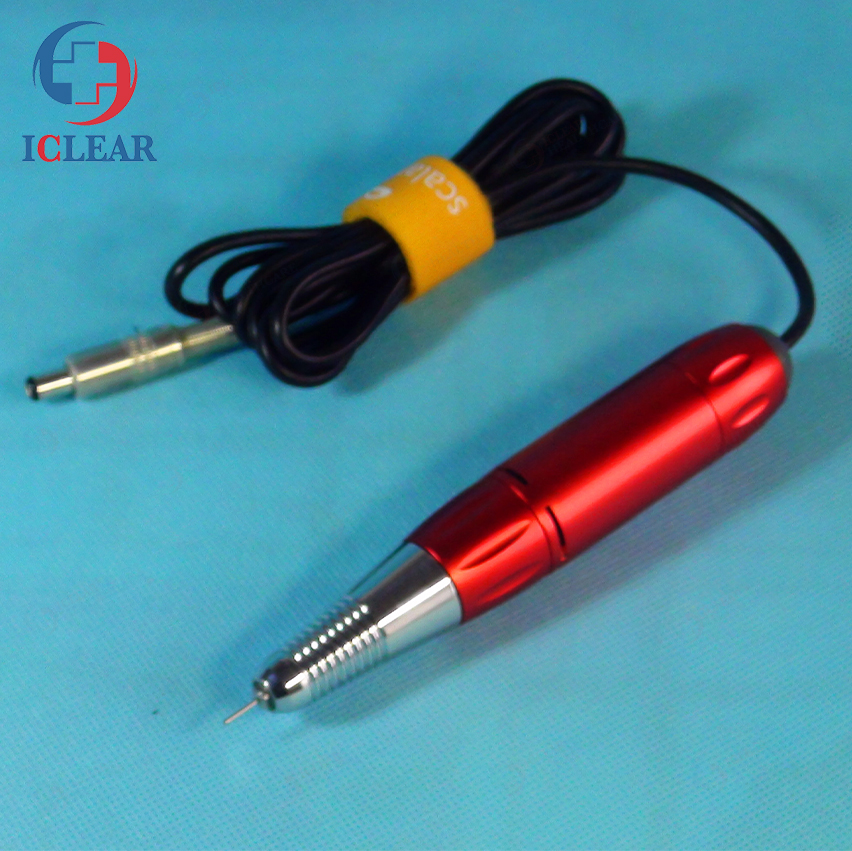

Handle specifications:
Handle collet 0.8: hollow core needle (outer diameter/blade 0.8mm inner diameter 0.7mm)
Handle collet 1.0: hollow needle (outer diameter/blade 1.0mm inner diameter 0.9mm) standard configuration
Handle collet 1.2: hollow core needle (outer diameter/blade 1.2mm inner diameter 1.1mm)

Technical indicators:
Input voltage: AC22.6v ± 5%/50Hz ± 1Hz (domestic), AC11.6v ± 5%/50Hz ± 1Hz (foreign)
Input power: 35w
Motor value: Micro DC brushless motor
Fuse tube: 2A/24V 5mmx20mm
Speed range: 500rpm -6000rpm

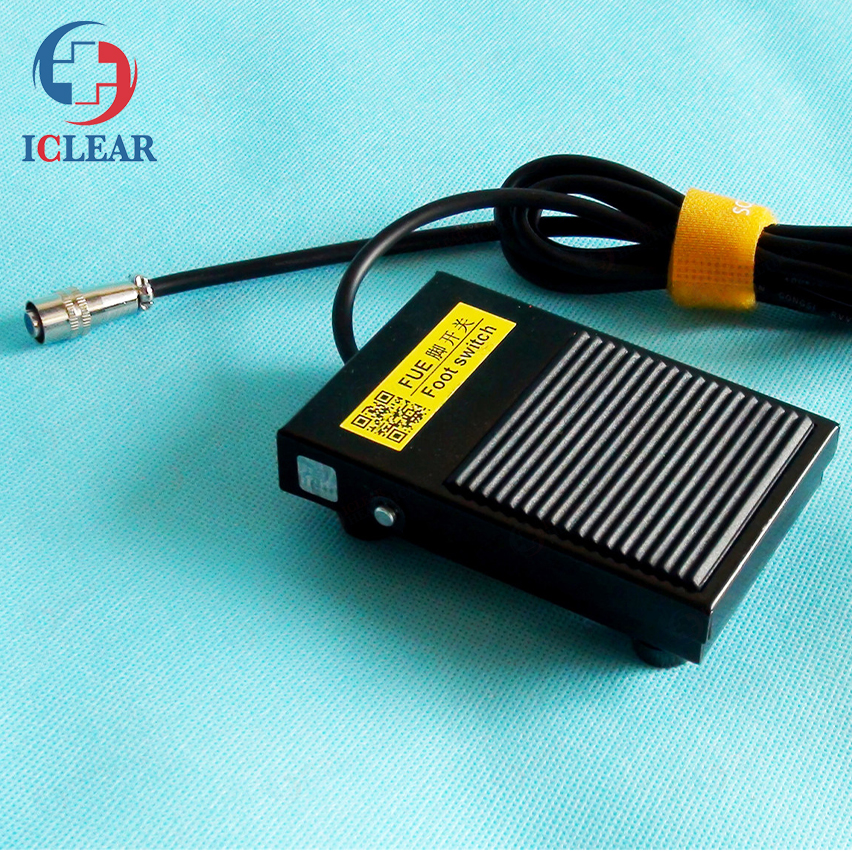

Switch direction change: foot switch; Extremely convenient for opening/changing direction
Noise value:<58Db
Rotation cycle: Switching between single rotation and reciprocating
Counting system: This device integrates the foot counting system with the switch, and when the pedal is pressed, the motor operates. Release the pedal, the motor stops and counts once
