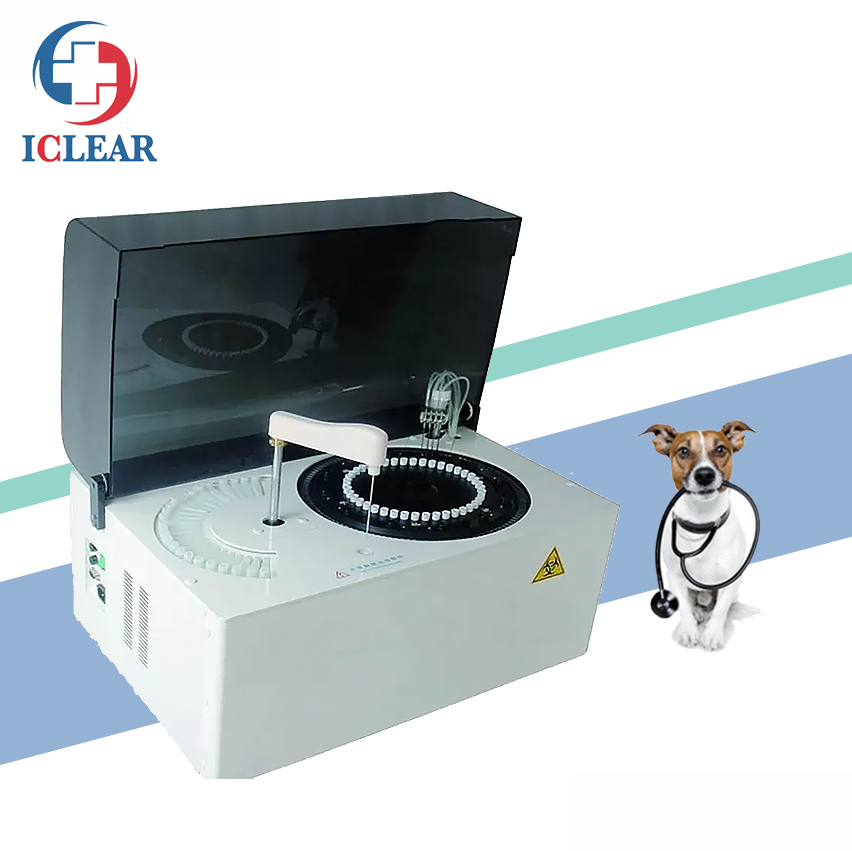

160T/H Vet Lab Animal Automated Biochemistry Analyzer

CHL-G1020

Specifications
Equipment type        Fully automatic discrete, STAT priority
Analysis rate          Constant speed 160T/H (without ISE)
Test principle          Colorimetry, turbidimetry
Analysis method       End-point, 2 kinetics, fixed-time, etc. support single/double wavelength, linear and non-linear calibration

Sample System
Sample Tray          42 sample positions, random access of all samples
Sample Volume       2-50ul, 0.1ul increment
Sample probe         Liquid level detection, the remaining detection, collision protection etc.
Sample Containers    Sample cups, Microtube, Original blood-collection tube, etc.

Reagent System
Reagent Tray         25 reagent positions, two-ring design
Reagent Volume      R1:25-300ul, R2:10-150ul, 0.1ul increment
Reagent Probe        Liquid level detection, the remaining detection, collision protection etc.
Reagent Refrigeration    4-15ºC, independent power supply, 24-hour non-stop refrigeration

Reaction System
Reaction Tray        Rotating tray, 120 cuvettes
Cuvette             Reusable high quality cuvette, Optical diameter 6mm
Reaction Volume     180-500ul
Incubation system    Bi-directional liquid-air device
Temperature         37ºC±0.1ºC with real-time display

Optical System
Light source           12V35W halogen lamps, over 2000 hours
Photoelectron road     after spectrophotometry
Wavelength           340,405,450,510,546,578,630,700nm
Absorbance range     0-3.500Abs
Resolution            0.0001Abs

Operating System
PC operating system       Windows XP or above
Analysis control software      English version graphical operating software
