Veterinary Endoscope Imaging System Portable Animal Flexible Video Endoscope

Band nameICLEAR
Model No.CHV-DW
CertificateNone
Add to Favorites

Quick Details

After-Sale Service: Online Technical Support
Display Size: 3.5"LCD Full View
Effective Picture Element: 400(H)X400(V)
Power Input: 5V ,Li-3.7
Menu Language: 15 Language Options
Storage: SD/TF Memory Card ,up to 32GB
Long Working Time: 4 Hrs Continuous Working Time
Specification: 2.8mm/4.8mm
Battery Type: Rechargeable Lithium Battery

Packaging & Delivery

Carton

Product Description

Veterinary Endoscope Imaging System Portable Animal Flexible Video Endoscope
CHV-DW Series


Structure composition

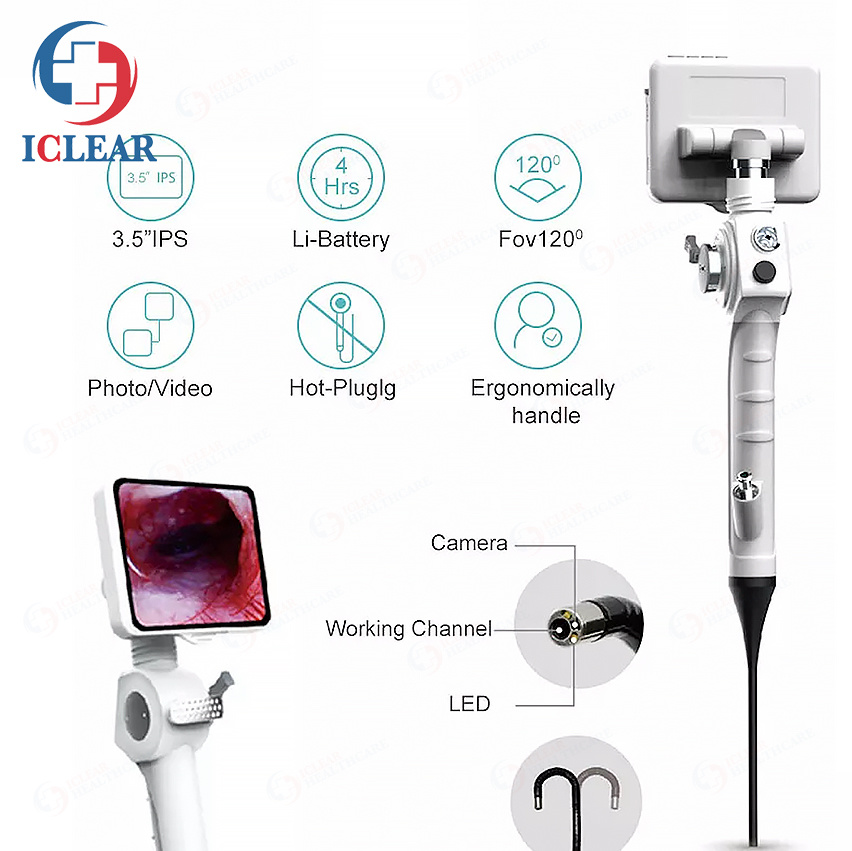

The animal image type endoscope is an integrated endoscope composed of a 3.5-inch main body, a handle, and an insertion tube.
Features
The ALL in ONE model is easy to carry out for diagnosis and treatment, with working channels and suction functions;
The 3.5-inch IPS high-definition screen can be adjusted up and down with one hand; the Lithium battery can be used for 4 hours when fully charged;
It supports taking photos and videos, and the images can be output and externally connected to the monitor to facilitate teaching, image storage and medical record filing;
FOV120° field of view angle;
Can be connected to various types of disposable laryngoscope blades
Handle design accords with ergonomics




Parameters
Tip Articulation:2 ways
Bending Angle:180-270 degree
Light Source: LED Light Sources
Camera Lens View Angle(Fov):120°±5°
Focus Range: 5-80mm
Operating Temperature:-10°C to +70°C
Water Resistance: IP67

Model Bending Angle Outer diameter Work channel Insertion length View angle Lighting system
DW48 U180° /D 180° 4.8mm 2.6mm 600m 180° LED
DW28 U180°/D180° 2.8mm 1.2mm 600mm 180° LED
