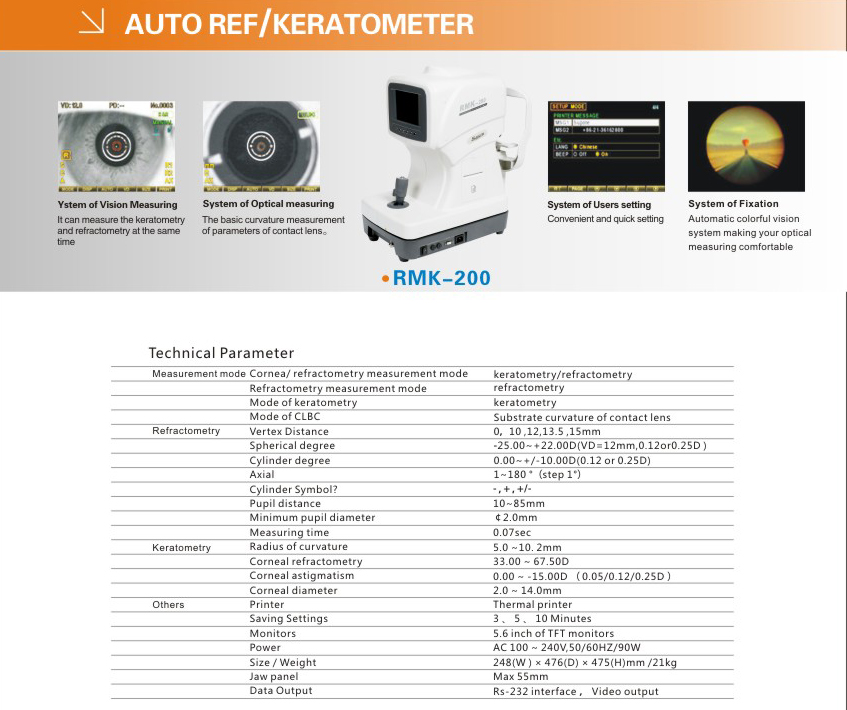

Technical parameter

Measurement mode

Cornea/refractometry measurement mode：

Keratometry/refractometry

Refractometry measurement mode

Refractometry

Mode of keratometrt

Keratometry

Mode of CLBC

Substrate curvature of contact lens

Refractometry

Vertex distance

0 , 10 , 12 , 13.5 , 15mm

Spherical degree

-25.00~+22.00D(VD=12mm,0.12or0.25D)

Cylinder degree

0.00~+/-10.00D(0.12 or 0.25D)

Axial

1~180° （step 1°）

Cylinder symbol

-， + ， +/-

Pupil distance

10~85mm

Minimum pupil diameter

¢2.00mm

Measuring time

0.07sec

Keratometry

Radius of curvature

5.0~10.2mm

Corneal refractometry

33.00~67.50D

Corneal astigmatism

0.00~-15.00D

Corneal diameter

2.0~14.0mm

Others

Printer

Thermal printer

Saving settings

3、5、10 minutes

Monitors

5.6 inch of TFT monitors

Power

AC100~240V,50/60HZ/90W

Product Size/weight

248W×476D×475H（mm）21kg

Package size

670W×500D×740H（mm）

Jaw panel

Max  55mm

Data output

Rs-232 interface , Video output
