PRODUCT DETAILS

Lab Water Bath Nitrogen Blowing Sample Vaporator

Band nameICLEAR
Model No.CHL-D12
CertificateIOS CE
Add to Favorites

Quick Details

CHL-D12 Sample Concentration consists of a base and stand assembly, sample holder and gas distribution system.
The round, stainless steel water bath of CHL-D12 is thermostatically controlled and will maintain water temperature from ambient temperature to 99℃.

Packaging & Delivery

Overall Dimensions (LxWxH): 280x240x500mm

Product Description

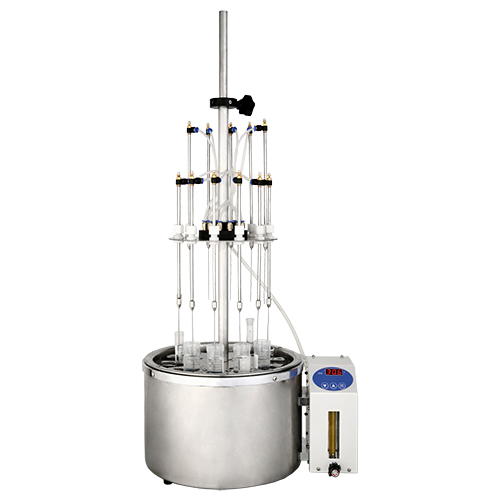

Lab Water Bath Nitrogen Blowing Sample Vaporator


CHL-D12


CHL-D12 Sample Concentration consists of a base and stand assembly, sample holder and gas distribution system. Test tubes are held in place by a spring-loaded sample holder and support tray. Each position is numbered. The gas passes through an adjustable flow meter to the distribution manifold. Flexible tubing leads to valve-tube assemblies at each position. Depending on the test-tube size and solvent volume they can be individually raised or lowered to the correct height. Needles blow gas onto the surface of the solution resulting in rapid evaporation of the solvent. All materials used are laboratory quality and can withstand contact with organic solvents.

The round, stainless steel water bath is thermostatically controlled and will accurately maintain water temperature from ambient temperature to 99℃.

Features
1. LED display, 12 positions
2. Compact size takes minimal hood space
3. Water bath provides gentle heat
4. Circular stand turns so each sample is accessible from the front
5. Accommodates samples in test tubes 10 to 29mm diameter, Volumes from 1ml to 50ml
5. A gas flow meter with valve, controls and indicates gas consumption
6. A needle valve adjusts gas flow at each position
7. Stainless steel 130mm- gauge needles standard
8. All metal parts are made of stainless steel, nickel chromed brass or anodized aluminum
9. Plastic parts are laboratory grade and will withstand contact with common organic solvents
10.Temperature setting range: Ambient temperature ~ 99℃
11.Temperature control accuracy: ±1℃

Specifications

Model

CHL-D12

Temperature control range

RT.+5°C~99°C

Temperature control accuracy

±1°C

Tube size

10-29mm

Beaker / Tube size

<Φ30mm

Gas flow

0-15L/min

Nitrogen Consumption

330ml/min

Needle Length

128mm

Accommodates samples

12pcs

Inner dimension

Φ260x150mm


No

Code

Descriptiomn

01

AS-06080-00

CHL-D12, AC220V/AC120V, 50/60Hz, 1000W

02

AS-06081-01

128mm neeedles(just for CHL-D12)
