Lab Thermostats Dry bath Thermo Shaker Incubator with Cooling and Heating Function

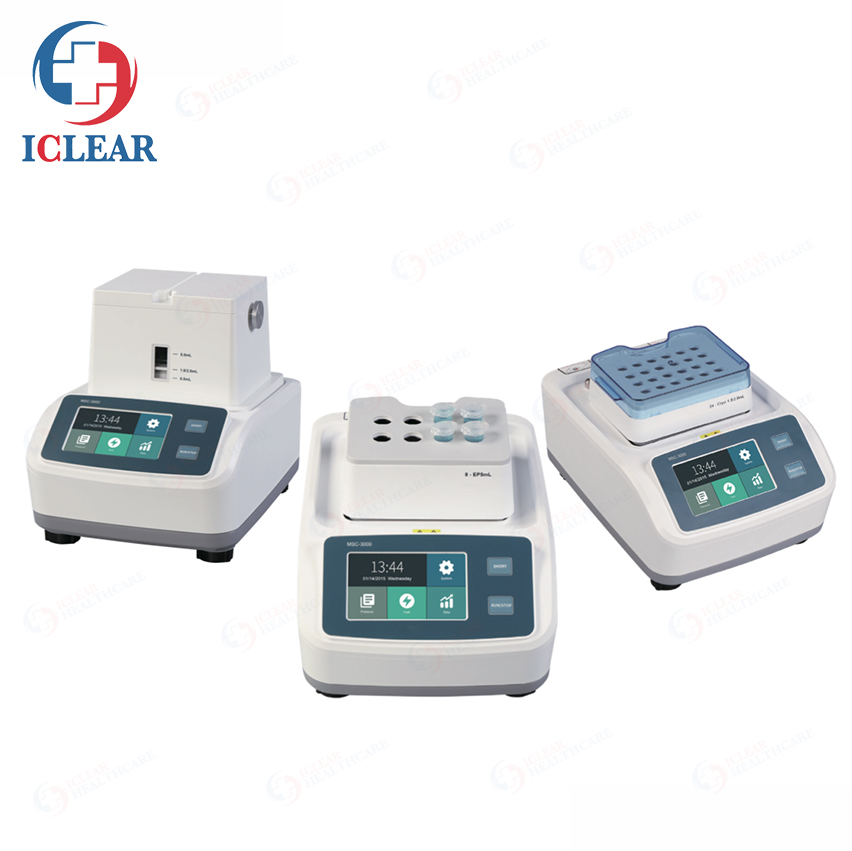

CHL-MS3000 Series
Temperature Control and Mixing Instrument
CHL-MS3000 / CHL-MSC3000 is an upgrade of the existing thermo shaker incubator operation mode. Diferent from the common instrument parameter setting through membrane keys, CHL-MS3000 / CHL-MSC3000 uses 4.3-inch color LCD screen combined with the graphical operation interface to give users a better experience. Various program editing options, such as shaking start time, cycle steps, heating rate, etc., help to fnd the best experimental conditions.
Convenient block replacement method, only need to fip the block handle to quickly replace. In addition, thermo lid accessories with a magnetic port design can efectively improve the temperature uniformity in the test tube, avoid changes in the concentration of reagents in the test tube caused by liquid evaporation and condensation, and ensure the stability of the reaction conditions.
Features
01 Stable Performance and Long Service Life
Microprocessor control, good temperature control linearity, accurate shaking speed, small fuctuation.
DC brushless motor drive, long service life, maintenance-free.
Built-in over-temperature protection device, more reliable to use.
02 Excellent Performance, Precise Temperature Control
Full power heating or other heating rate gears can be chosen to prevent the experiment from failing due to uneven temperature changes.
Optional thermo lid accessories can efectively improve the temperature uniformity in the test tube.
Optional full power cooling and other cooling rate gears.
03 Multiple Block Choices, Faster Loading and Unloading

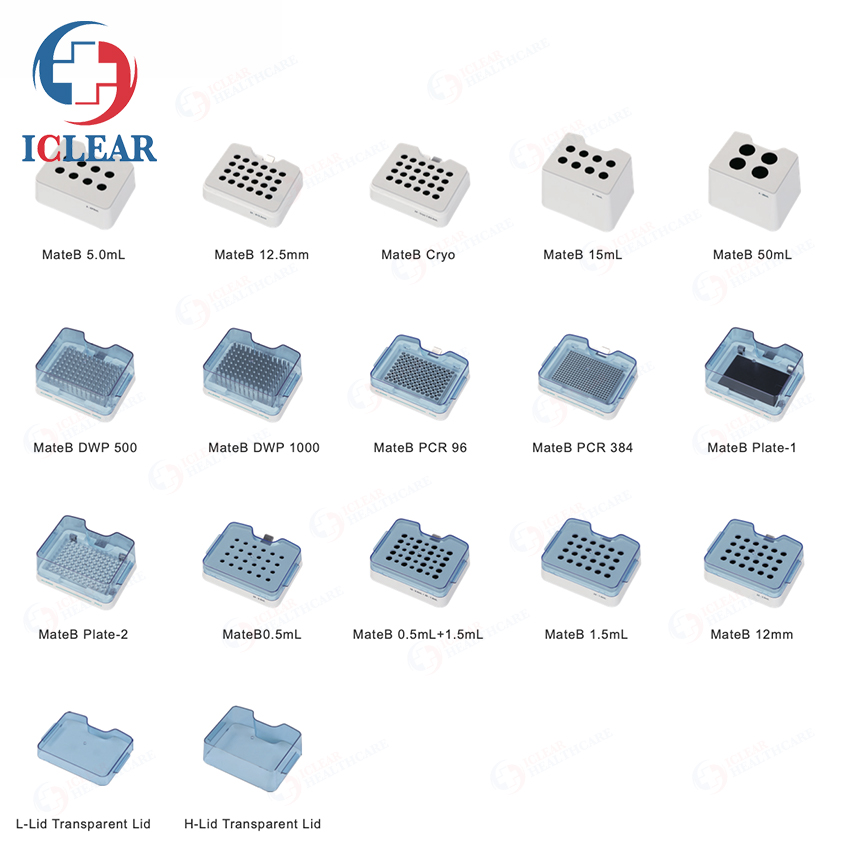

Various blocks are available, and can be customized.
New designed method of block loading and unloading, blocks can be replaced without tools.
04 Open Design, More Comprehensive Program Settings
Various heating methods can be chosen according to the experimental needs.
Shaking method can be set according to requirements, and both forward and reverse rotation can be set.
Program continuous operation function, multiple programs are connected to each other, no need to set repeatedly.
CHL-MSC3000 low-temperature storage function, the program is completed, and the samples can be automatically stored in low-temperature.
05 Smarter and Easier to Use
4.3-inch color LCD screen display, intuitive and easy to operate.
Power failure self-recovery function, the device can automatically resume operation according to the originally set procedure after power failure recovery.
Various standard sample blocks are available, and the blocks can be automatically identifed.
Specifications
|
Model |
MS-3000 |
MSC-3000 |
|
Temperature Control Range |
Room temperature +5°C~105°C |
0°C~105°C |
|
Temperature uniformity |
≤0.5°C |
≤0.5°C |
|
Timer |
1min~99h59min |
1min~99h59min |
|
Temp. Control Accuracy |
±0.5°C (@30-50℃) |
±0.5°C (@30-50℃) |
|
Display Accuracy |
±0.1°C |
±0.1°C |
|
Mixing Speed |
100~3000rpm |
100~3000rpm |
|
Heating Time(25 to 100°C) |
≤15min (Test environment temperature 20℃~30℃) |
≤15min (Test environment temperature 20℃~30℃) |
|
Cooling Time |
---- |
≤20min (Ambient temperature ≤20℃: 20℃~0℃) |
|
≤20min (Ambient temperature ≤25℃: Room temperature~4℃) |
|
≤20min (Ambient temperature ≤30℃: Room temperature~10℃) |
|
Program Number |
50 |
50 |
|
Dimension (mm) |
318 x 154 x 220 |
318 x 154 x 220 |
|
Weight |
10kg |
10kg |
