PRODUCT DETAILS

Portable Lab 2200rpm 2 pcs PCR plates Mini Microplate Centrifuge

Band nameICLEAR
Model No.CHL-MPC25
CertificateIOS CE FDA
Add to Favorites

Quick Details

•It can accept below formats:
--96-well, 384-well PCR standard plates with skirted, non-skirted
--96-well Elisa plates
--8x0.2ml PCR strip tubes
--0.2ml PCR tubes

Packaging & Delivery

290x360x140 mm 3.6kg

Product Description

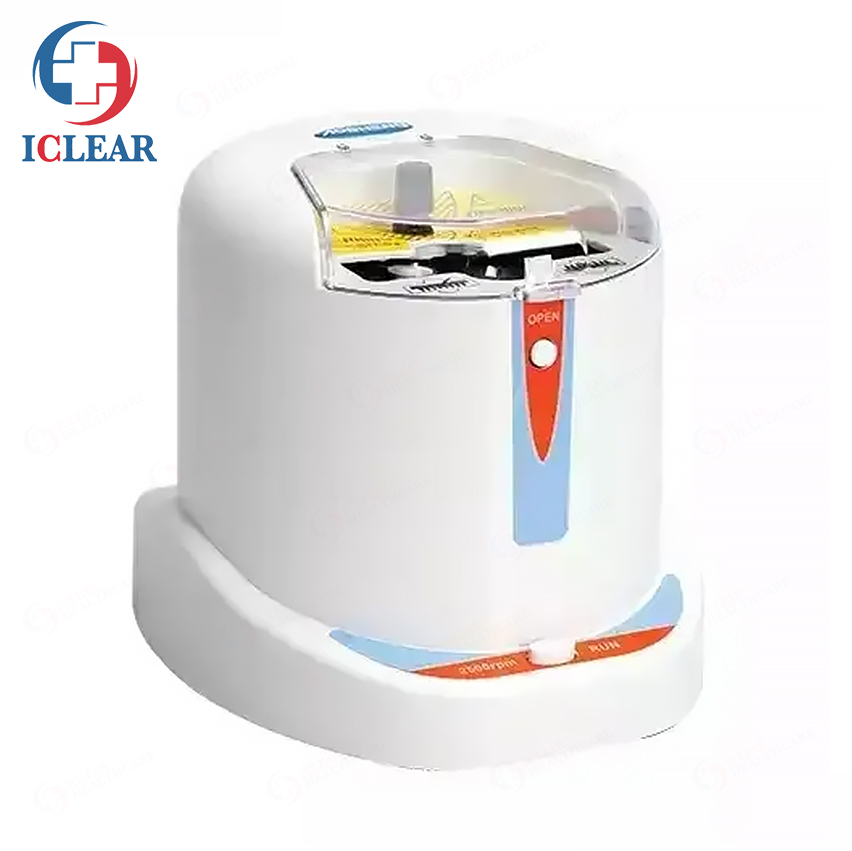

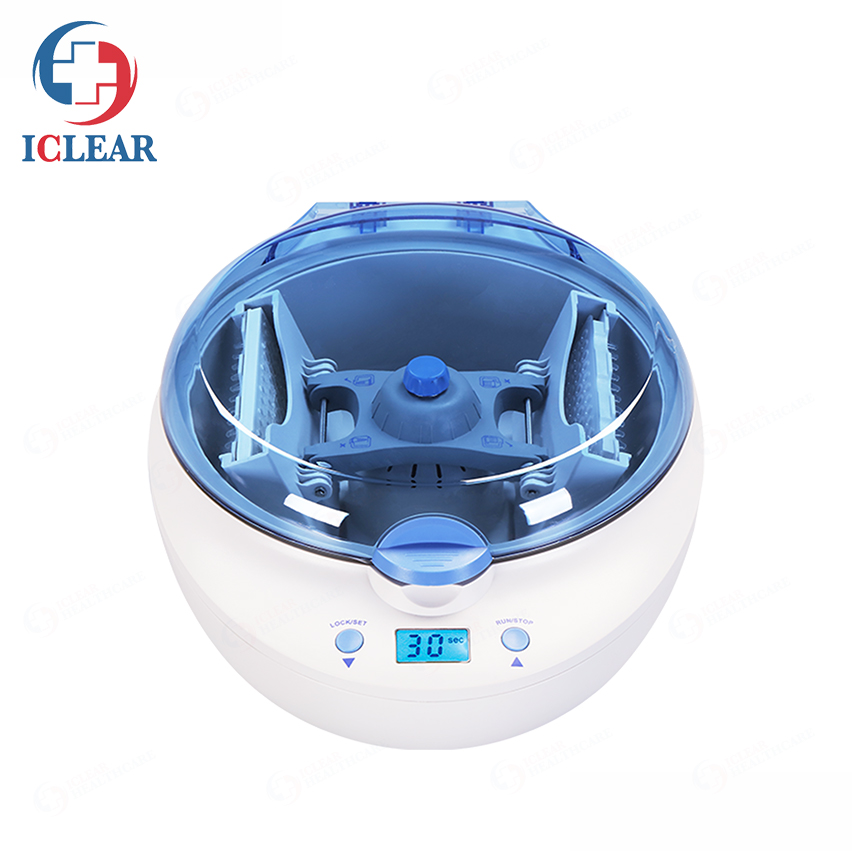

Portable Lab 2200rpm 2 pcs PCR plates Mini Microplate Centrifuge
CHL-MPC25


The CHL-MPC25 microplate centrifuge adopts a unique horizontal rotor design (patented). The microplates or centrifuge tubes are placed symmetrically on the inclined rotor frame. The rotor frame is thrown from the inclined position to the horizontal position by centrifugal force, so as to ensure the rapid release of hanging wall droplets. CHL-MPC25 adopts a streamlined design, with a small size, beautiful appearance and low running noise. It is an upgraded version of the Mini-P25 microplate centrifuge produced by our company, and it is also an ideal companion for PCR experiments!

Features
•Unique design for the horizontal rotor centrifuge (patented)

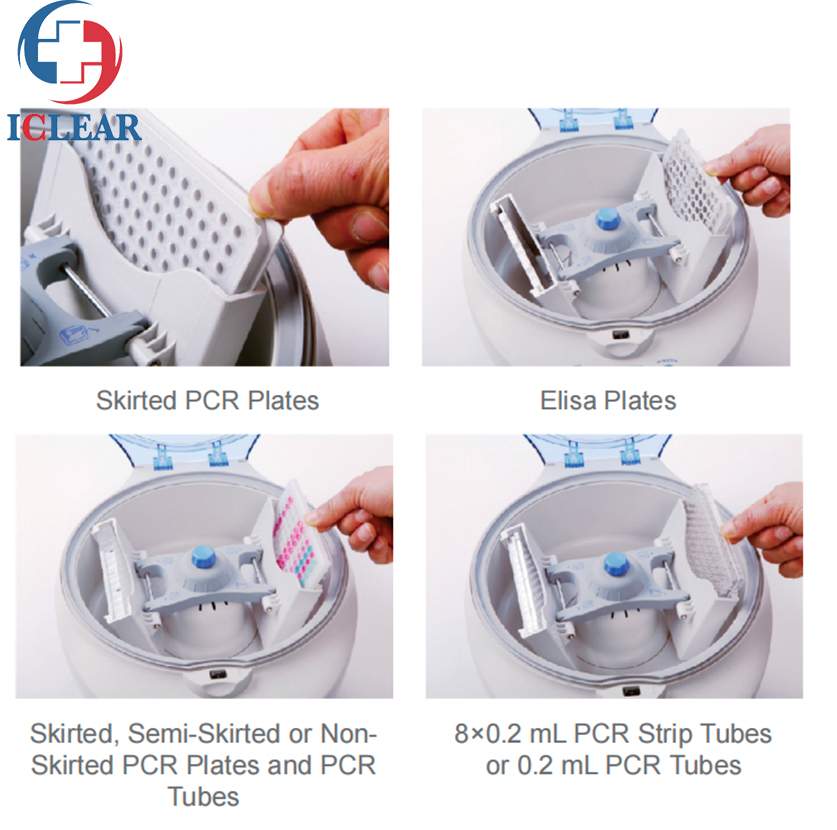

•It can accept the below formats:
 --96-well, 384-well PCR standard plates with skirted, non-skirted
 --96-well Elisa plates
 --8x0.2ml PCR strip tubes
 --0.2ml PCR tubes
•Short-spin and timing of two operations make the tests more convenient
•Streamline design with a more compact shape and transparent PC lid
•Braking time from max. speed: less than 30sec
•Timer can be set up to 10 minutes

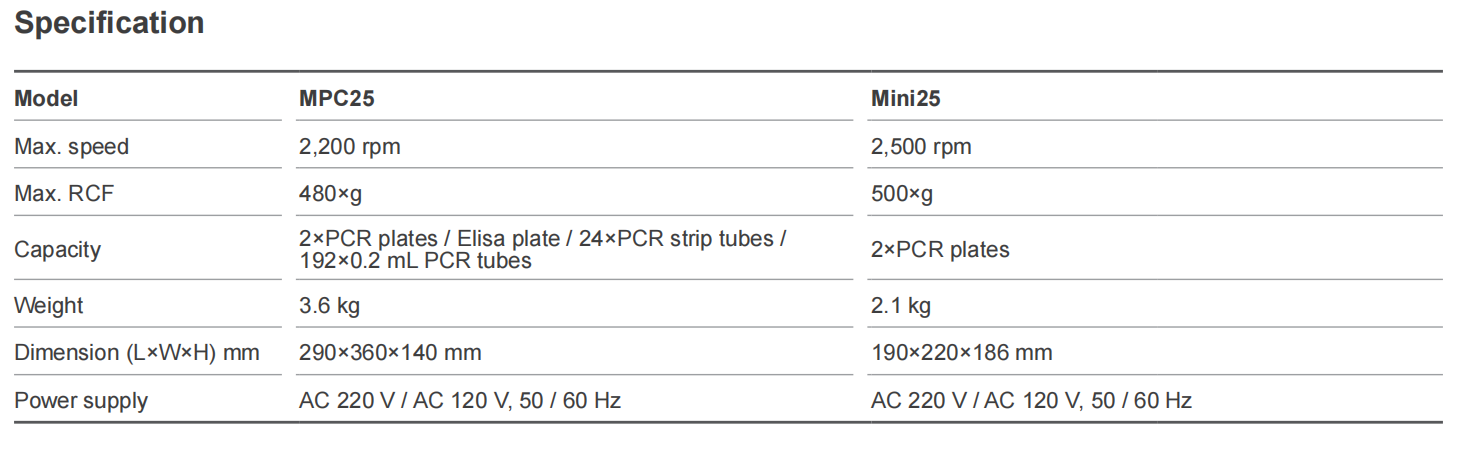

Model CHL-MPC25
Capacity 2 pcs PCR plates / Elisa plates / 8x0.2 ml PCR strip tubes / 0.2 ml PCR tubes
Maximum Speed 2,200rpm
Maximum RCF 480 x g
Time setting 0~10 min
Dimension (W×D×H) mm 290x360x140 mm
Weight 3.6kg
Power AC220V or AC120V, 50/60Hz
Accessories
Code Description
CH-08091-01 Adaptor for PCR plates with skirt and without skirt
CH-08091-02 Adaptor for 8x0.2ml strip or 0.2ml PCR tubes
