PRODUCT DETAILS

High Frequency Digital Mobile DR Radiography X Ray

Band nameICLEAR
Model No.CHX-GM130D
CertificateIOS CE FDA
Add to Favorites

Quick Details

Output Power:2.5kW
Frequency:50kHz
Fixed anode focus:1.5mm
Tube Voltage:40-100kV (Step 1kV)
Tube Current:25-50mA
mAs:1.0-160mAs (45 steps)

Packaging & Delivery

Overall dimensions: 1390 (length) × 850 (width) × 1620 (high) (mm)

Weight: 178kg

Product Description

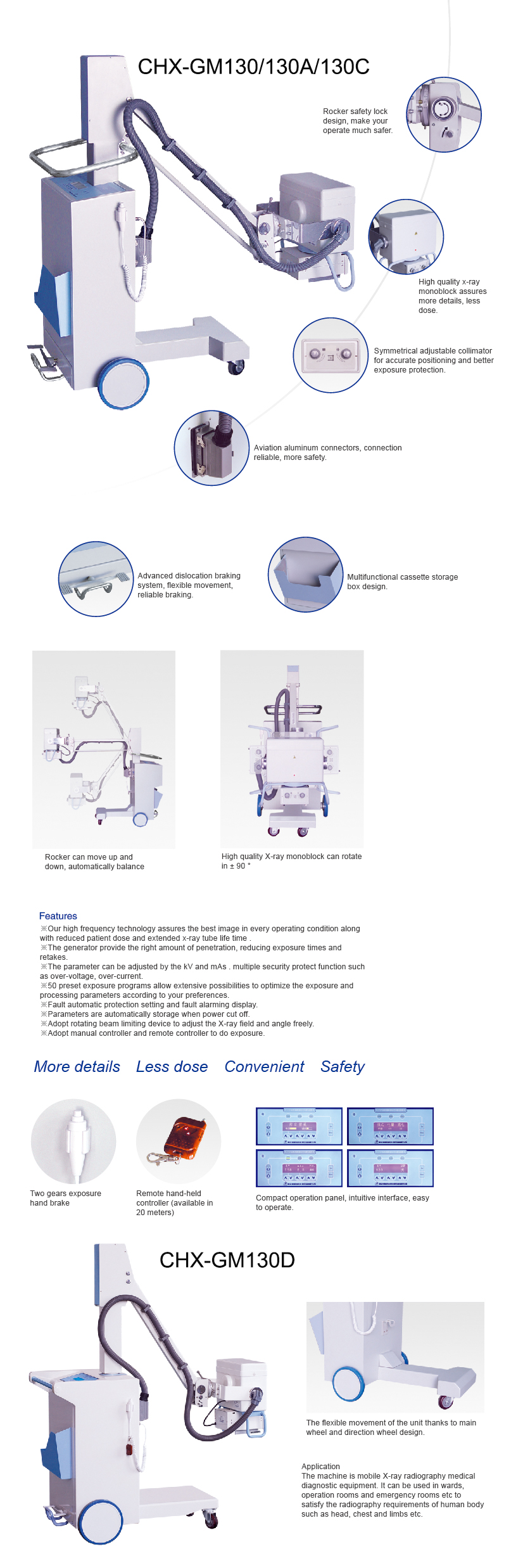

High Frequency Digital Mobile DR Radiography X Ray


CHX-GM130D

Technical parameters  of Mobile x ray digital equipment(CHX-GM130 )

Power Output:  2.5KW
Frequency:  25kHz

Tube voltage:  40~100kV

Power supply:  220V±10%,50kHz



Features of mobile x ray machine (CHX-GM130)

1. Structure designed based on anthropotomy, with compact appearance, and easy to operate.

2. With high frequency inverter to emit high quality X-ray and low dose on skin.

3. With techniques of KV analog closed loop control, mAs digital closed loop control and micro-processing real-time control to ensure precision and repeatability of the dose.

4. With kV, mAs two button adjustment, LCD display, multifunction of safeguard.
5. With 50 preset exposure programs, and can be modified and stored by the user for convenient operation.
6. With a high-quality knockdown X-ray generator to reduce irradiation, which is much safer to environment and operator.
7. With a symmetrical  beammonitor to adjust the X-ray field and a collimator lamp to locate the filed to ensure accurate radiography.

Standard Configuration



No.

Item

Quantity

1

Combined X-ray generator and high frequency inverted power supply

1

2

New main frame of Mobile X-ray system

1

3

X-ray equipment control system

1

4

Rotatable adjustable collimator

1

5

Remote control

1
