PRODUCT DETAILS

Adult/Infant Respiratory Humidifier for ventilator

Band nameICLEAR
Model No.CHH-AVH20
CertificateISO CE
Add to Favorites

Quick Details

Adopting mircroprocessor contactless control reliability and stability
Economic design and space saving
Stepless temperature adjustment date display real time monitoring cnvenient and direct viewing
Automatic temperature control temperature protection safe and effective
Accessory can be carried on regular sterilization or high temperature sterilization

Packaging & Delivery

20*20*41cm 2.5kg

Product Description

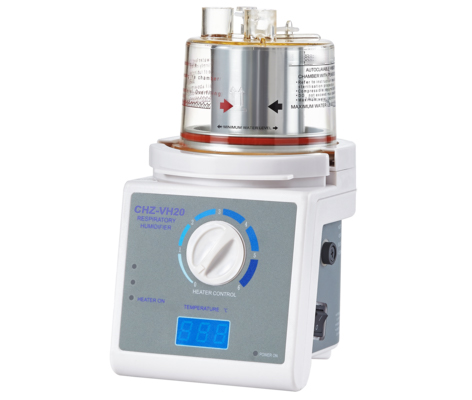

Adult/Infant Respiratory Humidifier for ventilator


CHH-AVH20

It is a kind of humidifying control devices that adopts principle of thermal equilibrium, microprocessor control and heat-sensitive sensor. It heats and humidifies for breathing circuit that patients need mechanical ventilation. It controls the temperature automatically, and equipped with over-heat protection device.

Main machine:
Application range: match with ventilator for heating and humidifying;
Control function: automatic temperature control;
Protection function: dry and over-heat protection;
Temperature monitor: digital display 0℃~75℃
Application temperature: 30℃~75℃
Maximum temperature: 75℃

Technical specification:
Power: 220V±22V 50Hz±1Hz
Input rate: ≤85W+15%
Size: 135*170*150(mm)
Working temperature: 5℃~40℃
Storage relative temperature: -10℃~+40℃
Storage relative humidity: ≤90%
Atmospheric pressure: 860hPa~1060hPa

Chamber:
Maximum water capacity: 280ml(PN-2000F Adult)
Maximum water capacity: 230ml(PN-2000FA Infant)
Maximum flow: 180L/min
Maximum working pressure: 2kPa
Inlet: 15mm F
Outlet: 22mm M
