Benchtop Rapid Steam Sterilizer Automatically Medical Surgical Ophthalmic Instruments Sterilization Equipment

Band nameICLEAR
Model No.CHL-TMXD35D
CertificateCE
Add to Favorites

Quick Details

Product Description
This sterilizer is a safe, reliable and automatically controlled small rapid desktop sterilization equipment, suitable for medical and health, pharmaceutical, scientific research and other units. Provides rapid sterilization of surgical, dental, and ophthalmic instruments, glassware, pharmaceuticals, media and fabric dressings, and foodstuffs that are resistant to saturated steam.

Packaging & Delivery

Gross/Net: 92/78Kg

Product Description

Benchtop Rapid Steam Sterilizer Automatically Medical Surgical Ophthalmic Instruments Sterilization Equipment

CHL-TMXD35D


CHL-TMXD35D
Product Description

This sterilizer is a safe, reliable and automatically controlled small rapid desktop sterilization equipment, suitable for medical and health, pharmaceutical, scientific research and other units. Provides rapid sterilization of surgical, dental, and ophthalmic instruments, glassware, pharmaceuticals, media and fabric dressings, and foodstuffs that are resistant to saturated steam.
Performance and Features
• Fast 4-6 minutes for sterilization
• Internal circulation system of soda and water, no steam is discharged to the outside, the environment is clean and dry

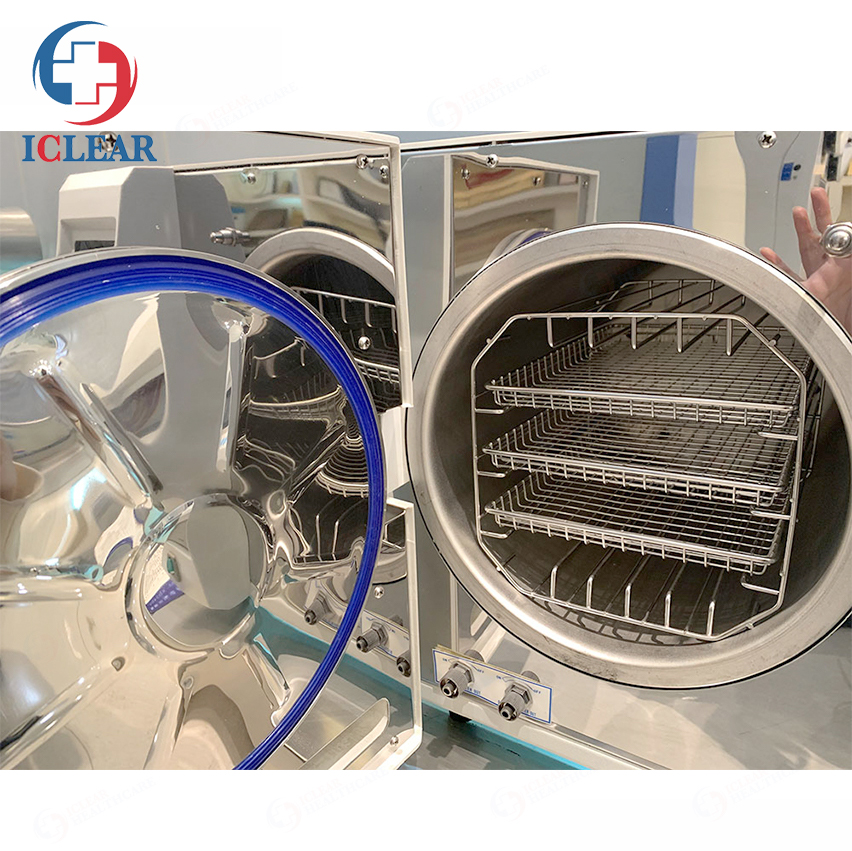

• Equipped with four-layer stainless steel sterilization tray
• Microcomputer displays working status, touch keys
• The sterilization chamber is made of high quality stainless steel
• Three fixed sterilization programs and user-adjustable programs
• Water cut protection control
• Buzzer reminds automatic shutdown when the cycle is over
• Automatic control of the whole process of adding water, heating, sterilizing, steam exhausting and drying
• Automatic discharge of cold air
• With dry function

• Door safety interlocks

Technical Parameter

Model CHL-TMXD35D CHL-TMXD50D
Technical parameter
Sterilization chamber volume 35L 50L
φ300×500mm φ340×550mm
Fixed work stress 0.22Mpa
Rated operating temperature 134℃
Sterilization temperature selection 105-134℃
Timing time selection range 0-99min
Sterilization chamber thermal uniformity ≤±1℃
Power/Supply Voltage 2.7KW/AC220V.50Hz
Disinfection tray (mm) 400×200×30(4piece) 500×250×30(4piece)
Overall dimensions of the whole machine (mm) 730×550×510 770×600×540
Packaging size (mm) 780×670×650 840×710×690
Gross/Net 92/78Kg 105/89Kg

CHL-TMXB20J
Product Description
This sterilizer is a safe, reliable and automatically controlled small rapid desktop sterilization equipment, suitable for medical and health, pharmaceutical, scientific research and other units. Provides rapid sterilization of surgical, dental, and ophthalmic instruments, glassware, pharmaceuticals, media and fabric dressings, and foodstuffs that are resistant to saturated steam.
Performance and Features
• Indicator light shows working status
• Quick 4-6 minutes for sterilization
• Sterilization temperature and sterilization time can be set by yourself
• Internal circulation system of soda water, no steam is discharged to the outside, the environment is clean and dry
• Over-temperature, over-pressure automatic protection function
• Water cut protection control
• Automatic discharge of cold air
• Equipped with three-layer stainless steel sterilization tray
• Sterilization chamber made of high quality stainless steel
• Auto shutdown with buzzer at end of sterilization cycle
Technical Parameter

Model CHL-TMXB20J CHL-TMXB24J
Technical parameter
Sterilization chamber volume 20L 24L
φ250×420mm φ250×50mm
Fixed work stress 0.22Mpa
Rated operating temperature 134℃
Sterilization temperature selection 105-134℃
Timing time selection range 0-60min
Sterilization chamber thermal uniformity ≤±1℃
Power/Supply Voltage 1.5KW/AC220V.50Hz(AC110V.60Hz)
Disinfection tray (mm) 340×200×30(3piece) 400×200×30(3piece)
Overall dimensions of the whole machine (mm) 480×480×384 580×480×384
Packaging size (mm) 700×580×500 800×580×500
Gross/Net 44/40Kg 50/45Kg
