Features
1. "3D Rotating High-Speed Motion" for quick disruption of those fibrous tissues and resistant cells
2. 50 programmable memory settings and user-optional condition settings
3. A wide range of rotation speed settings from 4 to 7 m/s, increment 0.05m/s

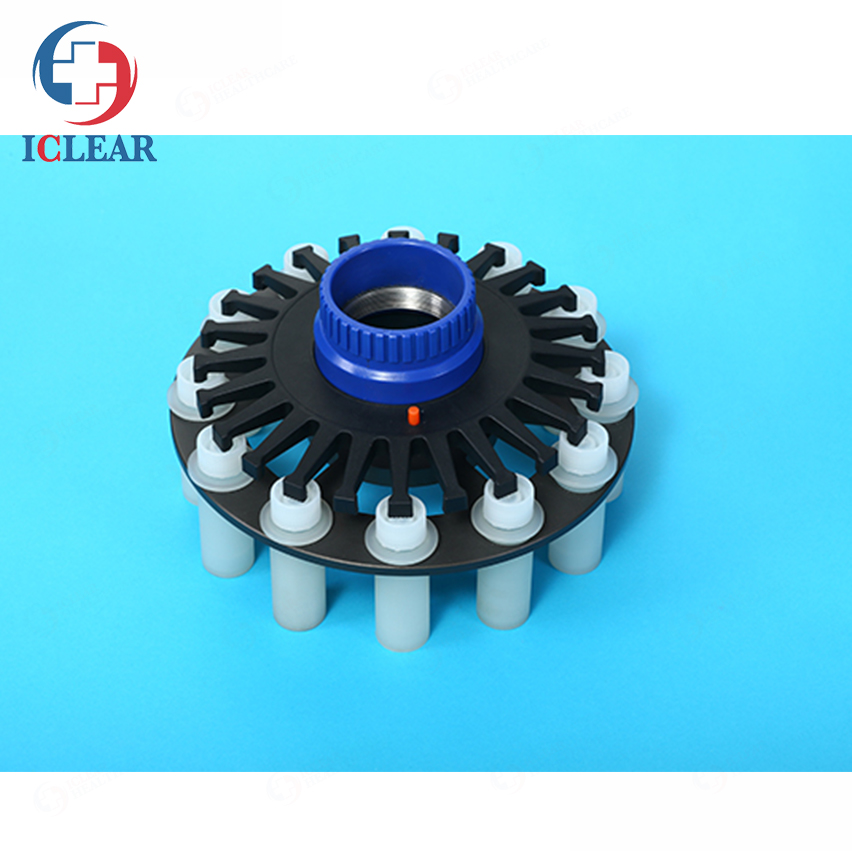

4. Brushless motor realizing no brush particle generation
5. Easy to remove sample tube holder and fix sample tubes
6. Easy to monitor the disruption process through the clear lid
7. Simultaneously homogenize:
CHL-B6 6*2ml tubes or 2*5ml tubes
CHL-B24 24*2ml tubes or 12*5ml tubes
8. Disposable tubes ensure no threat of cross-contamination or sample degradation
9. The CHL-B6 and CHL-B24 vigorously and uniformly shake the tubes providing an efficient, consistent, high yield and quality homogenization usually in 35s or less
Specifications
Type | CHL-B24 |
Display | OLED |
Speed Range(m/s) | 4.00m/s~7.00m/s, increment 0.05m/s |
Speed Range (rpm) | 2430rpm -- 4260rpm, increment 10rpm |
Cycle Duration | 1s -- 90s, increment 1s |
Pause time | 1s -- 120s, increment 1s |
Cycle | 10 |
Programmable | 50 |
Samples | 24 x 2ml/1.5ml/0.5ml or 12 x 5ml grinding tube |
Acceleration Time | <4s |
Deceleration Time | <4s |
Noise | <70 db |
Power | 500W |
Dimensions (W×D×H) | 280×360×385 mm |
Weight (kg) | 25.0 kg |
Power Supply | AC100~240V, 50/60Hz |
