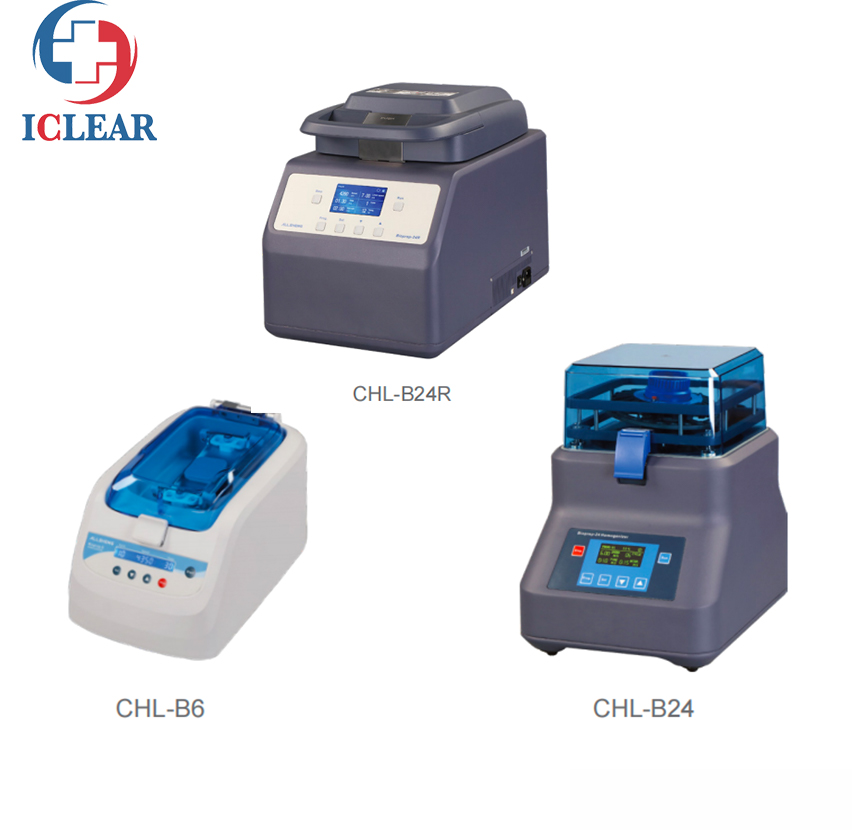

OLED 3D Lab Refrigeration Biological Sample Homogenizer

Band nameICLEAR
Model No.CHL-B24R
CertificateISO
Add to Favorites

Quick Details

Can lyse most samples and preserve the integrity of biomolecules (DNA, RNA, proteins) and drug molecules
Use a separate crushing tube for each sample, no cross-contamination
Beads are available in a variety of materials and diameters for different types of samples

Packaging & Delivery

300×500×360 mm 40.0 kg

Product Description

OLED 3D Lab Refrigeration Biological Sample Homogenizer

CHL-B24R

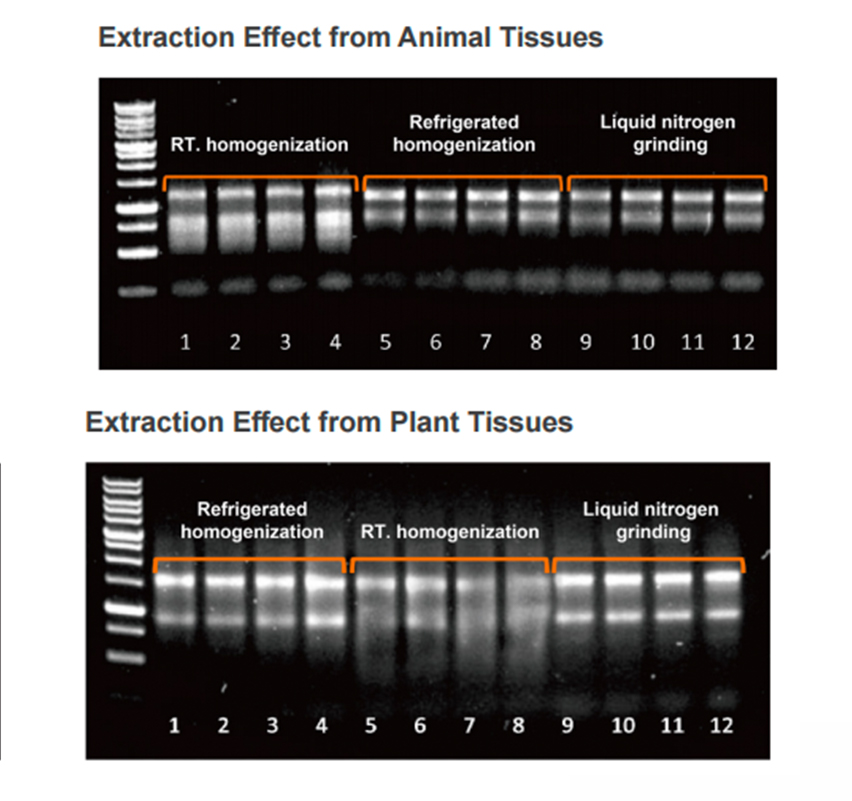

CHL-B24R refrigerated homogenizer has an internal compressor which was upgraded on the basis of a normal B24 homogenizer, Partial active ingredients will be negatively affected when using the conventional methods to homogenizer most of the soft or sensitive under room temperature, while the low temperature can prevent this situation. Therefore the cooling technique is the key effective method to save the complete sample. In addition, the sample will change crisper which can be homogenized easily and efficiently. Thus, B24R refrigerated homogenizer plays an important role in the extraction progress of RNA, DNA, and protein activity determination.



Typical Samples:
-- Animal, Plant, and Human cells;
-- Micro-organisms;
-- Drugs, polymers, lotions, etc.
-- Soil and sediments;
-- Swabs and feces
-- Bone, Brain, tumors
-- Bacterial gram + or -
-- Yeast, fungi, spores
-- Seeds, roots
-- Feces, swabs


Applications:
Any researcher who requires genomic DNA, RNA, or recombinant protein as a starting material will benefit from the unit system.
-- Northern blot analysis, qPCR and microarrays
-- Optimization of recombinant protein expression
-- Library synthesis and Southern blots
-- Pathogen screening of soil or water
-- RT-PCR and differential display
-- Environmental surveys
-- Verification of food safety

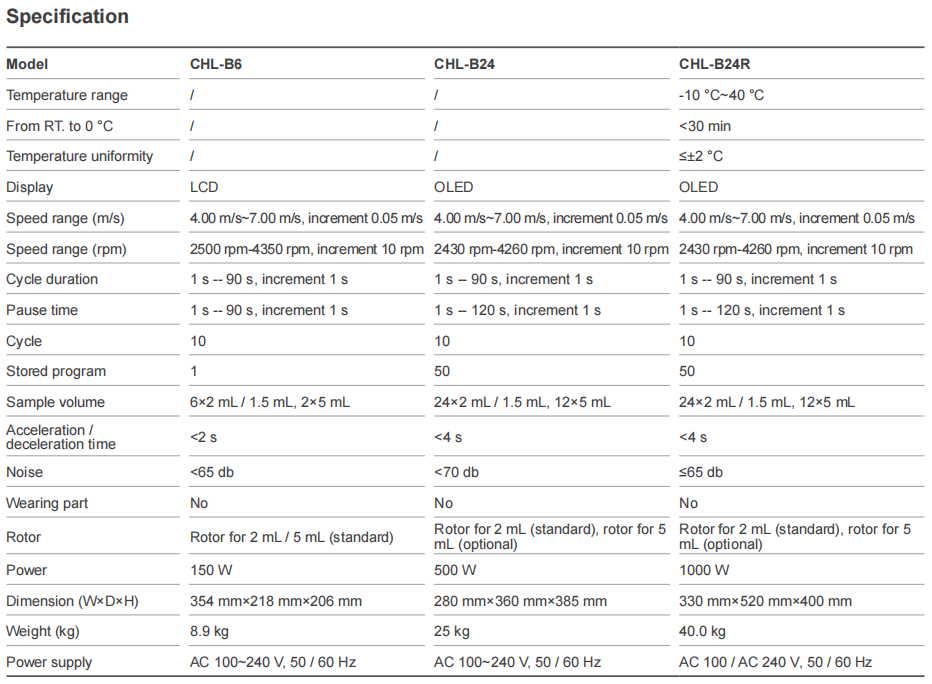

Specifications



Type

CHL-B24R(Cooling Function)
Display OLED
Speed Range(m/s) 4.00m/s~7.00m/s, increment 0.05m/s
Speed Range (rpm) 2430rpm -- 4260rpm, increment 10rpm
Cycle Duration 1s -- 90s, increment 1s
Pause time 1s -- 90s, increment 1s
Cycle 10
Programmable 50

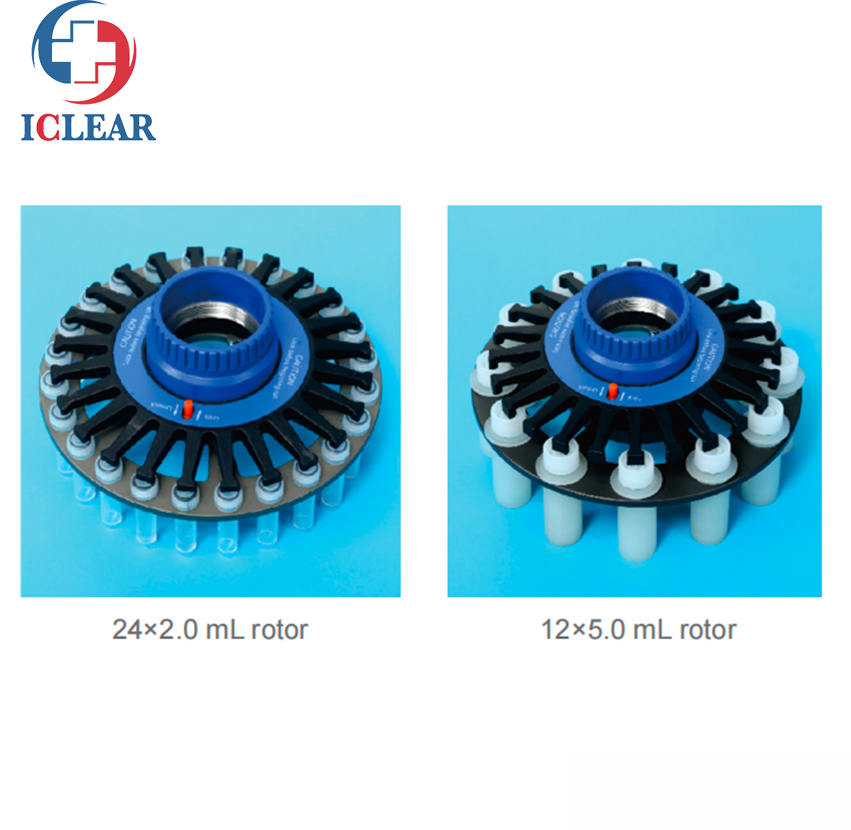

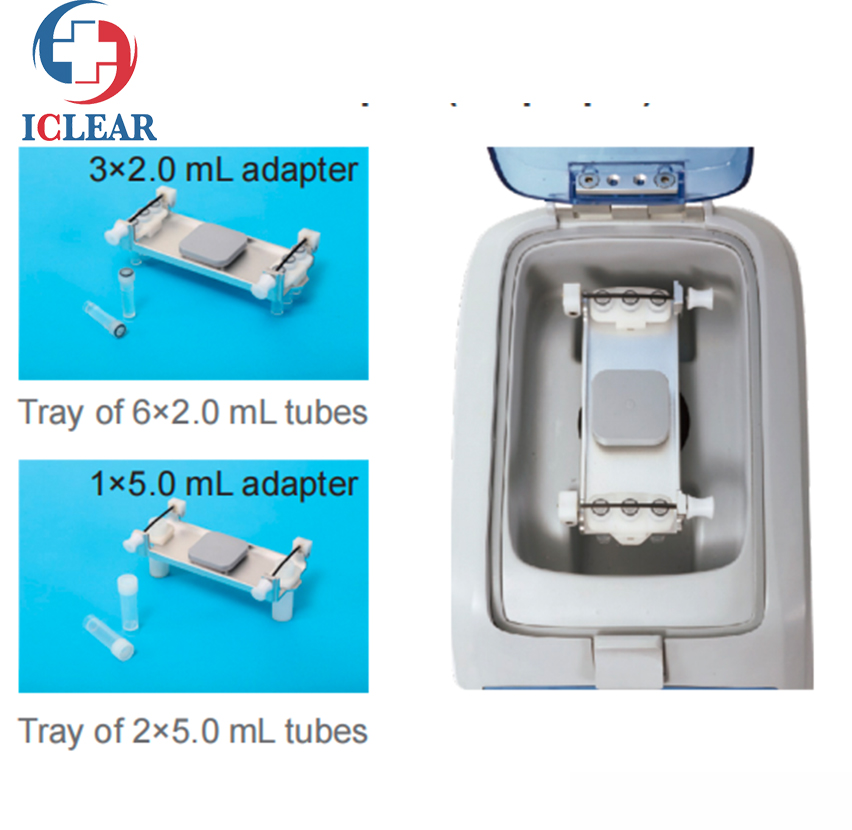

Samples 24 x 2ml/1.5ml/0.5ml or 12 x 5ml grinding tube
Acceleration Time <4s
Deceleration Time <4s
Noise <70 db
Power 150W
Dimensions (W×D×H) 300×500×360 mm
Weight (kg) 40.0 kg
Power Supply AC100~240V, 50/60Hz
Temperature Range -10℃~40℃
From RT.to 0℃ <30min
Temperature uniformity ±2℃
Cooling method Compressor refrigeration
