Medical Thermo-graphic Film Processor Digital X Ray Film Printer

Band nameICLEAR
Model No. CHX-HQ460DY
CertificateISO CE
Add to Favorites

Quick Details

- Dry thermal technology
- Daylight load film cartridges
- Double tray, supports 4 film sizes
- Speed printing, higher efficiency
- Economical, stable, reliable
- Compact design, easy installation
- Straight forward operation, user-friendly

Packaging & Delivery

25kg

Product Description

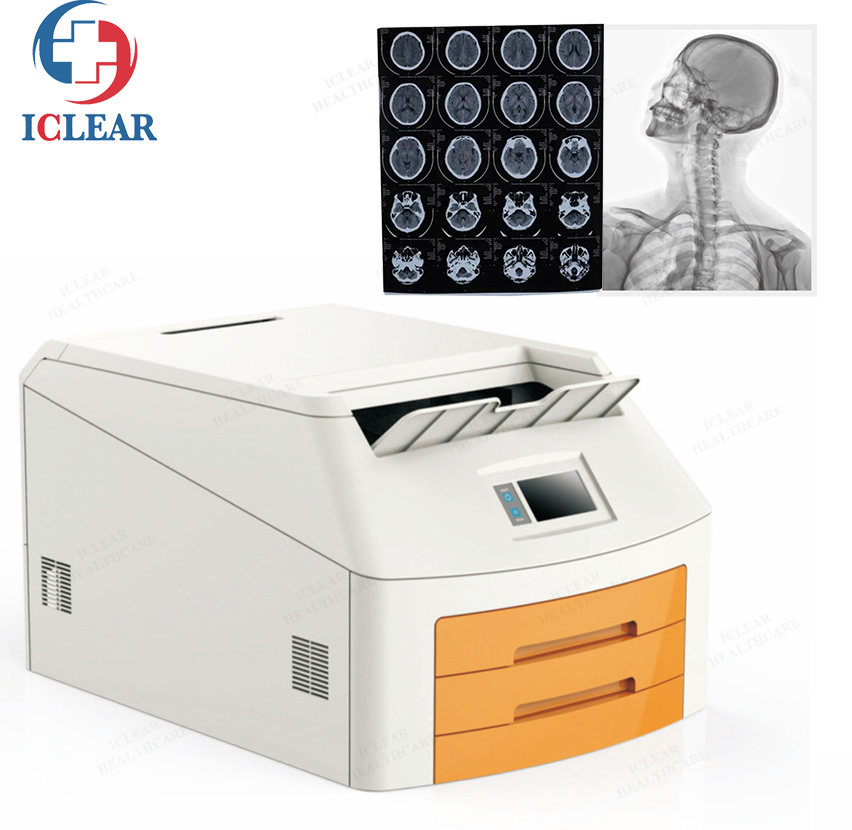

Medical Thermo-graphic Film Processor Digital X Ray Film Printer
CHX-HQ DY Series

It is the one and only domestically engineered medical dry thermal imager.  The CHX-HQ Dry Imager uses the latest direct dry thermal imaging technology which accommodates a full range of applications, including CT, MR, DSA, and US, as well as CR/DR applications for GenRad, Orthopaedics, Dental Imaging, and more. The HQ-Series Dry Imager dedicates to precision in diagnosis with its outstanding image quality and offers affordable imaging catering to your needs.

- Dry thermal technology
- Daylight load film cartridges

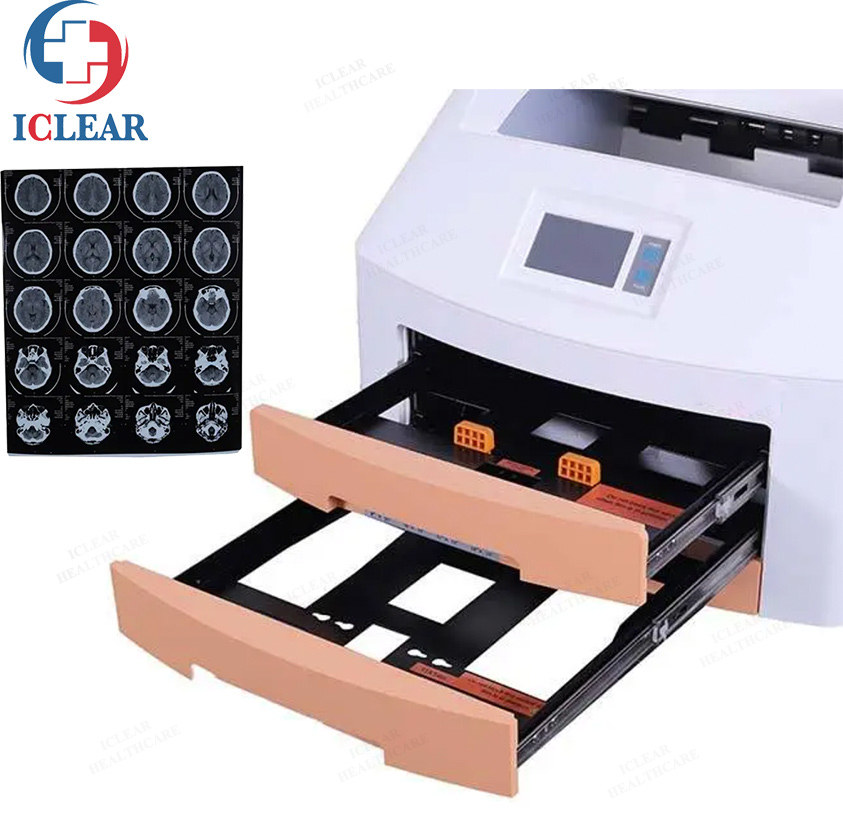

- Double tray, supports 4 film sizes
- Speed printing, higher efficiency
- Economical, stable, reliable
- Compact design, easy installation
- Straight forward operation, user-friendly

Usage

The dry imager is a medical imaging output device. Different from the old method of film processors, our dry imager can be operated under daylight conditions. With the elimination of chemical liquid, this thermal dry printing technology is significantly more environmentally friendly. However, to ensure the quality of the output image, please keep away from the heat sources, direct sunlight, and acid and alkaline gas such as hydrogen sulfide, ammonia, sulfur dioxide, and formaldehyde, etc.

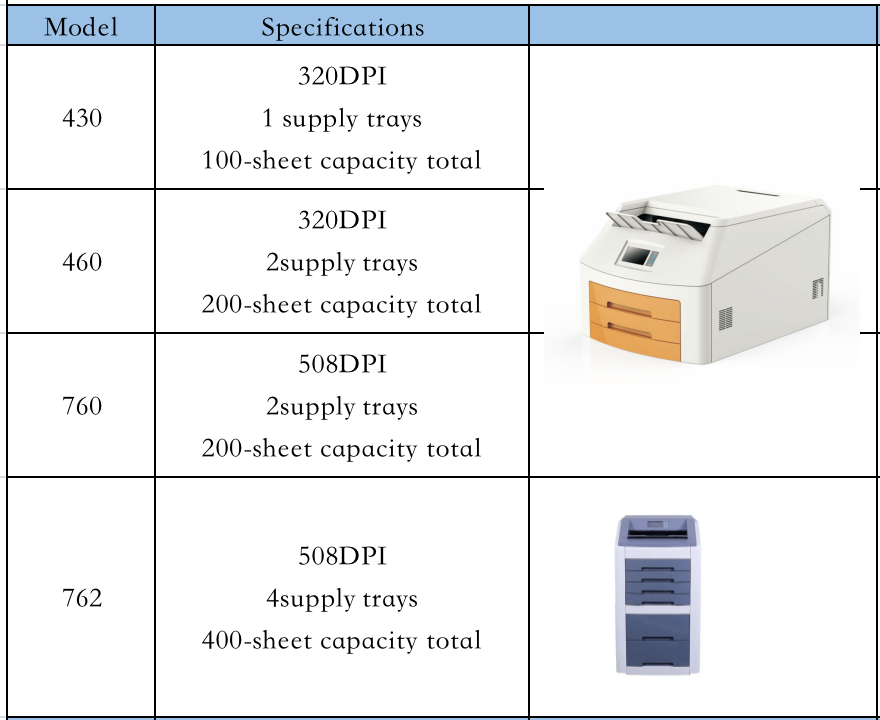

Specifications
Print Technology Direct thermal (dry, daylight-load film)
Spatial Resolution 320dpi (12.6 pixels/mm)
Grayscale Contrast Resolution 14 bits
Film Tray Two supply trays, 200-sheet capacity total
Film Sizes 8''×10'', 10''×12'', 11''×14'', 14''×17''
Applicable film Medical Dry Thermal Film (blue or clear base)
Interface 10/100/1000 Base-T Ethernet (RJ-45)
Network Protocol Standard DICOM 3.0 connection
Image Quality Automatic calibration using a built-in densitometer
Control Panel Touch Screen, Online Display, Alert, Fault, and Active
Power Supply 100-240VAC  50/60Hz  600W
Weight 50Kg
Operating Temperature 5ºC-35ºC
Storage Humidity 30%-95%
Storage Temperature -22ºC-50ºC
