Applications:

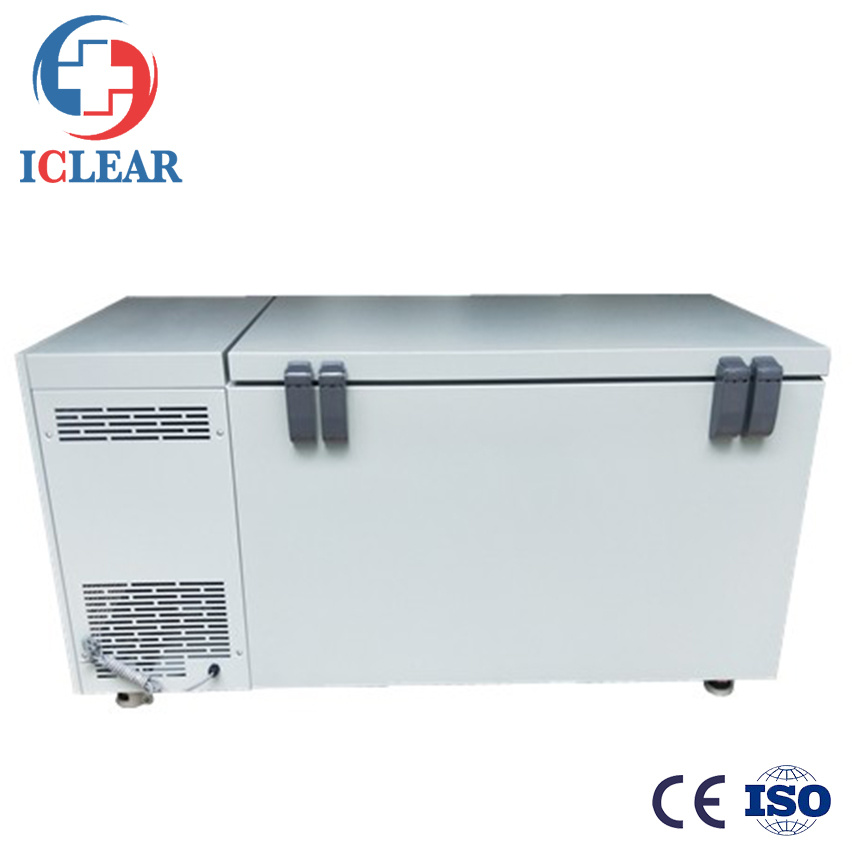

The freezer is designed for long term storage of biological materials, samples and specimens at ultra low temperature and used for low temperature test and cryogenic treatment for special materials, electronic components & devices and metals components; the freezer can be also used for fresh storage of super frozen tuna etc. high-end seafood.
Features:
Unique ultra low temperature patent technology, superior performance (strong refrigeration, fast cooling and lower temperature), high efficiency and lower energy consumption;
Major components such as compressor, thermostat and fan motor are world famous brands, copper tube evaporator and SUS 304 stainless steel interior, reliable and durable, ensure safety of stored samples;
Digital temperature display, the temperature inside freezer is easy to see; High/low temperature and sensor fault alarms, to know abnormal conditions in time;
Double gaskets and thick foam insulation, good thermal insulation and energy saving;
Fit with foot master heavy duty casters, easy moving;
CFC free mixed refrigerants & foaming agent, green and environmentally friendly.
Technical data:
Model |
GC-86W105 |
GC-86W200 |
GC-86W300 |
GC-86W480 |
Type of cabinet |
Horizontal |
Horizontal |
Horizontal |
Horizontal |
Capacity |
105 liters |
200 liters |
300 liters |
480 liters |
Temperature range |
-40°C to -86°C, adjustable |
-40°C to -86°C, adjustable |
-40°C to -86°C, adjustable |
-40°C to -86°C, adjustable |
Climate type |
N |
N |
N |
N |
Power supply |
220V/50Hz 115V/60Hz |
220V/50Hz 115V/60Hz |
220V/50Hz 115V/60Hz |
220V/50Hz 115V/60Hz |
Rated input |
450W |
500W |
600W |
700W |
Protective class |
I/B |
I/B |
I/B |
I/B |
Unit dimension |
1140*760*930mm |
1390*760*930mm |
1690*760*930mm |
1990*860*975mm |
Inner dimension |
410*510*550mm |
710*510*580mm |
1010*510*580mm |
1300*600*600mm |
Net weight |
100 kg |
160kg |
180 kg |
240 kg |
