UV Ultraviolet Transilluminator For DNA/RNA Gel Electrophoresis

Band nameICLEAR
Model No.CHL-CUV Series
CertificateISO CE
Add to Favorites

Quick Details

1. The UV protective glass can be adjusted and fixed according to the operator's demand providing the best UV protection with no interfering with observation.
2. Single-light UV transilluminators carriy 302 nm UVlamps or other models for you to choose in order to adapt to the different dyes such as SYBR-Green SYPRO orange.
3. Dual-light UV Transilluminators meet the different needs of the experiments. 302 nm UV can be used observing DNA/RNA whereas 365 nm UV can be used to cutting bands which can protect DNA from UV damag.
4. The special UV filter glass has excellent transmission efficiency for certain wavelength which ensure that there is a highly detective sensitivity to enhance the capture ability for faint signals.
Rational structural design and high-quality UV lamp produce unsurpassed UV intensity and irradiance uniformity.
5. Small UV Transilluminators make easy the operations and airproof frame make simple the equipment’s maintenance.
6. A cooling fan inside can prolong the service life of machine.

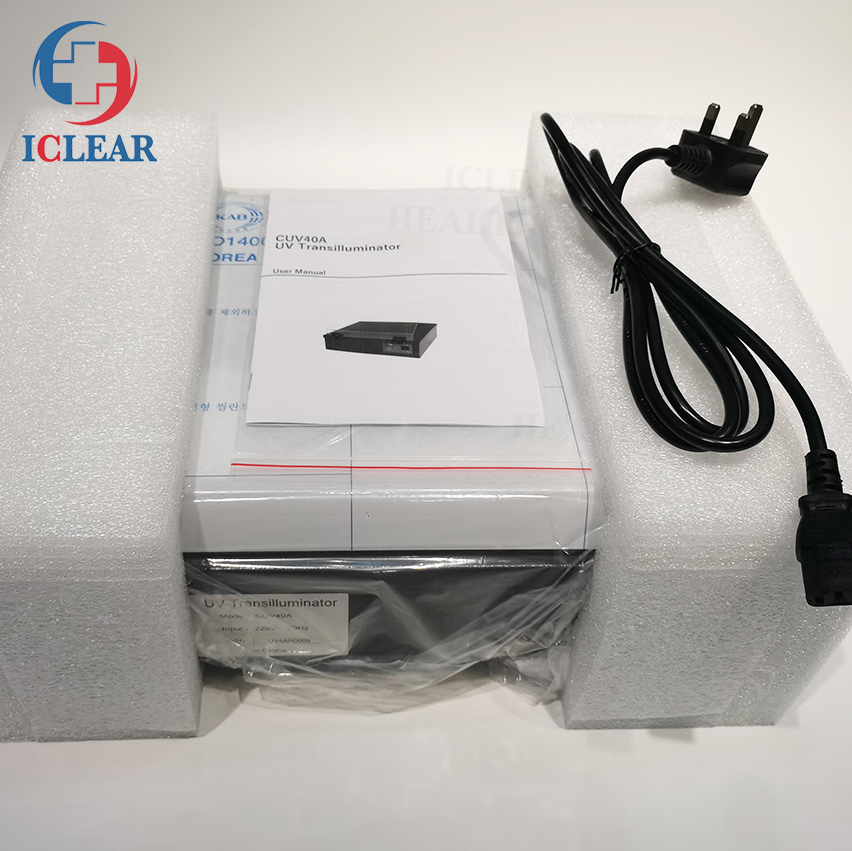

Packaging & Delivery

460*380*200mm 6kg

Product Description

UV Ultraviolet Transilluminator For DNA/RNA Gel Electrophoresis

CHL-CUV Series

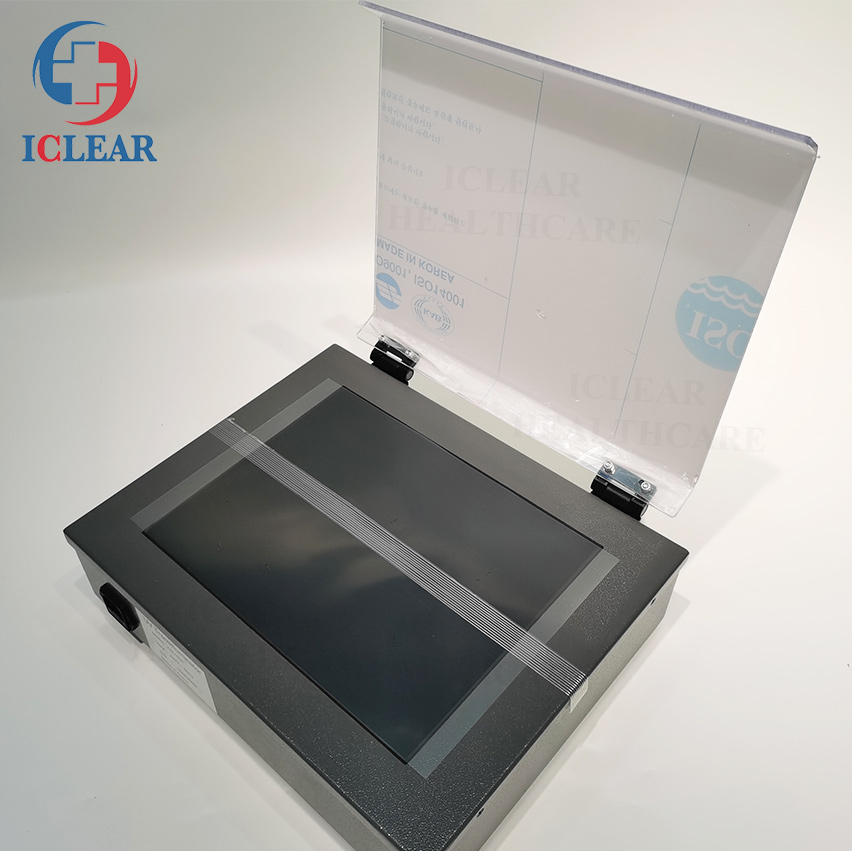

iClear's high quality UV Transilluminators are designed for viewing DNA/RNA in agarose gels stained with ethidium bromide(EB) or other dyes. Transparent hinged cover, with UV-blocking material to protect users from exposure to hazardous UV radiation, is mounted by slip-hinges for easy removal and replacement. These 302nm or 365nm UV lamps produce even distribution at the filter surface for better identification and documentation of viewed gels. The 302nm UV induces high fluorescence and sensitivity in ethidium bromide/DNA complexes producing sharp, distinct bands. At this wavelength, photo-nicking, dimerization and photo-bleaching to gels are minimized. Unsurpassed UV intensity and outstanding irradiance uniformity enable visualization of even trace amounts of DNA. Airproof frame reduces the chance of gel damage or contamination.

The UV transilluminator can be widely used in the laboratory of university, research department and corporation involved in molecular biology, molecular genetics, medical and sanitation, agriculture and other life science fields.

Key features:

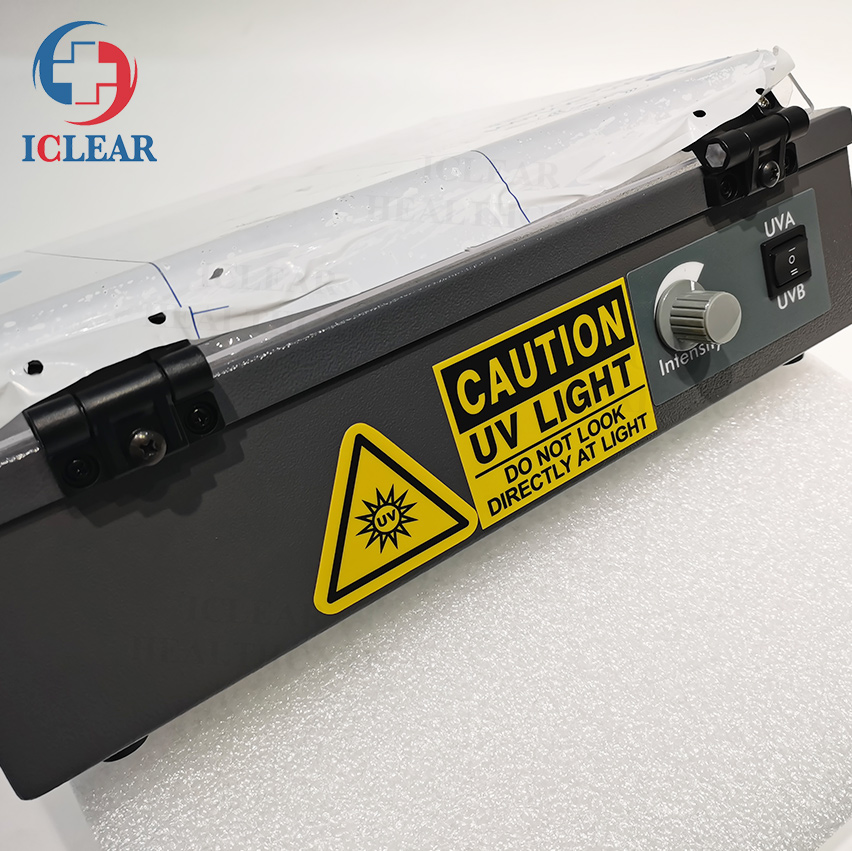

■Unique UV protective glass can be adjusted to the operator's visual angle and fixed providing better UV protection.

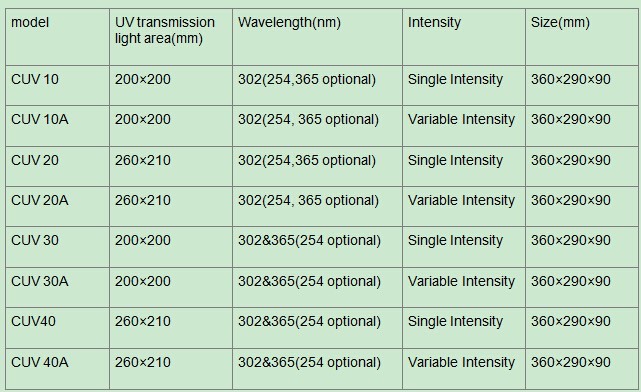

■There are different models for you to choose, single/dual wavelength, single/variable intensity, UV/dual-light. The UV wavelength 254nm, 302 nm or 365nm are selectable according to users’ needs. Different wavelength-selectable fit for different DNA dyes, such as SYBR-Green, SYPRO Orange. Also different wavelength for different experimental purpose: 302nm for detection and analysis of EB stained DNA/RNA, 365nm for gel incision or DNA preparation.
■Dual-light Transilluminator provides two 20cm×20cm work surfaces. White light filter surface is designed for coomassie blue stained protein gels, methylene blue stained DNA gels, silver stained protein gels, autoradiographies, and microtiter plates.
■Excellent transmission efficiency for certain wavelength ensures highly detective sensitivity and increase the capture ability for weak signals.
Rational structural design and high-quality UV lamp produce unsurpassed UV intensity and outstanding irradiance uniformity.
■Small figure and airproof frame make the equipment life longer and maintenance easier.
■ A cooling fan featured inside can improve the life of the machine.
