PRODUCT DETAILS

CCD 800000 Pixels Medical Digital Colposcope for Gynecology

Band nameICLEAR
Model No.CHF-2200
CertificateCE
Add to Favorites

Quick Details

Sony color CCD, 0.8 million effective pixels, 700 TVL.
24 groups of LED light source, high Color rendering index.
Hand-held zoom button, convenient for doctors to observe.

Packaging & Delivery

116x60x37cm 42kg

Product Description

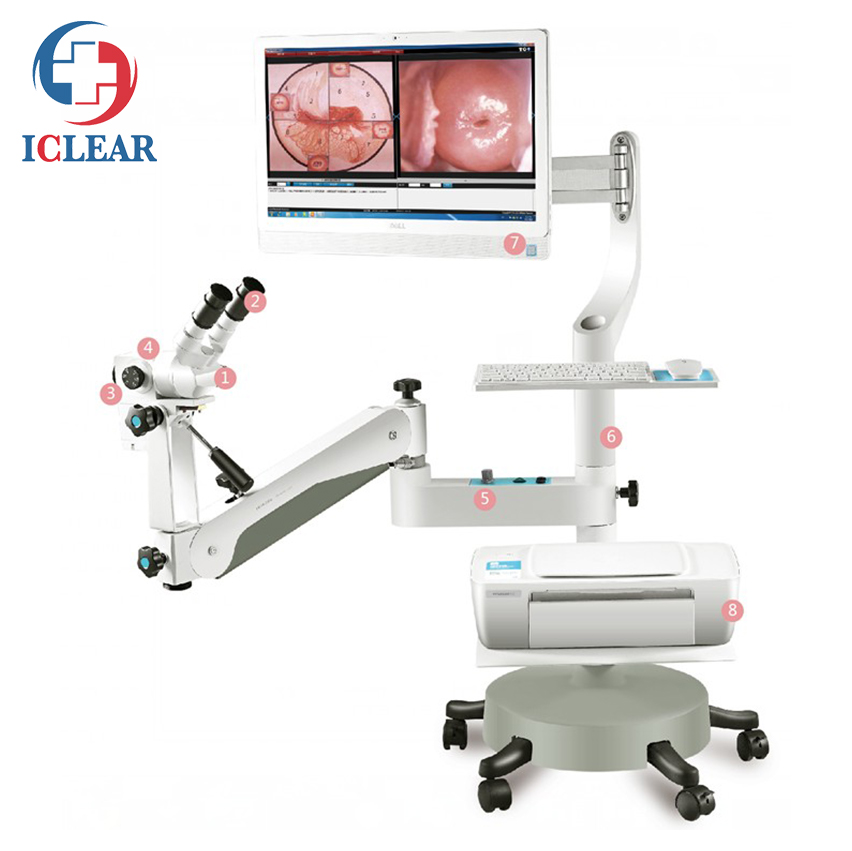

CCD 800000 Pixels Medical Digital Colposcope for Gynecology

CHF-2200


Features
1. Using 1/4 inch Sony CCD, 800,000 effective pixels, 18 times optical zoom, horizontal resolution up to 700 lines.
2. Fully damped head, 360-degree all-round adjustment, automatic hovering at any angle, new upright bracket, adjustable lens height up and down.
3. Four imaging modes, highlighting important lesion tissues and blood vessels, epithelial tissue, and the true restoration of tissue's original color, and detail level.
4. With a foot switch and software two kinds of acquisition, video recording, images can achieve dynamic, static, and full-screen acquisition, each inspection can be collected 100 color images.
5. Adopt 24 groups of energy-saving and eco-friendly white LED light sources, long-time uniform illumination, High color rendering index, and no heat.
6. Hand-held zoom button convenient for doctors to observe tissue pathological changes in real-time.

Specification

Camera 1/4 inch Sony CCD
Effective Pixels 800,000 px
Level Resolution

700TVL

Zoom System: 216x, optical: 18x, digital: 12x
Depth of Field 4.1mm~73.8mm
Working Distance 200~400mm
Field of View

Ф20~380mm

Color Saturation 95%


Application:

video colposcope for gynecology
clinical diagnosis of vagina cervix, and early cervical cancer screening, digital electronic colposcope
