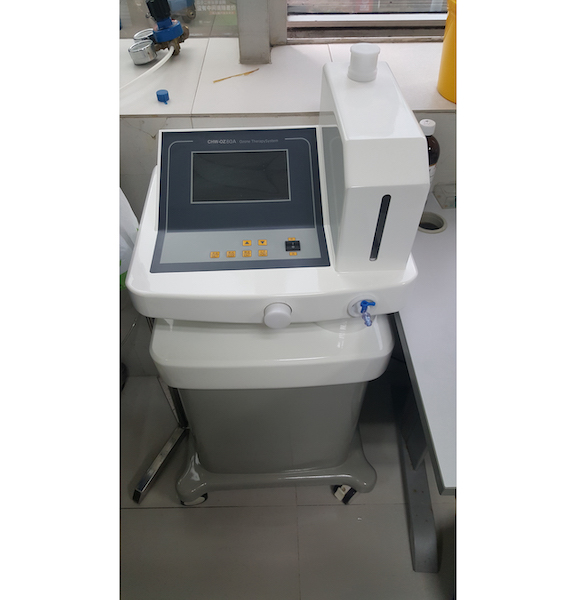

Ozone Treatment Instrument Class III
CHW-OZ80A
It adopts the German imported ozone detection equipment, which combines the cutting-edge core technologies of Italy and Germany to produce pure and non-hazardous gases. The ozone concentration control adopts the world's most advanced ozone generation surface fogging technology. The concentration detection adopts the international standard ultraviolet absorption method, so that the ozone concentration detection accuracy error is ≤0.5%, ensuring that the therapeutic integrated oxygen ratio is the best ratio. The treatment is stable and safe, and the treatment range is wide.
1. It adopts the German original three-oxygen generation detection equipment, the concentration is accurate, the concentration of trioxane can be continuously adjusted, the error is very small, and some safe and reliable treatment for the accurate requirements of the three oxygen concentration is carried out.
2, can output a wide range of concentrations, covering more than 97% of the trioxane concentration required for trioxotherapy.
3, the use of German three oxygen generator, the service life of up to 10 years, to ensure a constant concentration, no patching phenomenon.
4, no maintenance, the instrument is equipped with a complete residual gas degradation system, automatic degradation to remove exhaust gases.
5, multiple input interfaces, multiple air intake interfaces, dual control mode (remote control & near control), intelligent gas alarm device to ensure the instrument's expandable high, intelligent alarm, convenient and free control.
6, a strong after-sales, the company has a comprehensive after-sales service system, the machine free warranty for one year, free maintenance for life. The performance of the instrument is upgraded free of charge, and the concentration of trioxane is detected free of charge every year.
7, strong technical support, three oxygen medical ozone technology experts provide free technical advice, technical updates, technical retraining, the group's many cooperative hospitals at any time to accept clinical field study.
8, super high cost performance, domestic prices, international advanced level of performance.
The main body is composed of temperature and pressure collection unit, oxygen filtration unit, ozone generating unit, ozone filtering unit, ozone concentration online detecting unit and concentration control unit. Equipped with a color LCD touch screen, the user can complete the operation according to the LCD display prompt. An ozone online analysis system is built into the equipment to detect ozone concentration in real time. The complete residual gas degradation unit can quickly deodorize the ozone gas to release new oxygen.
1.1 Technical indicators
1) Power source: 220V ± 22VAC 50 ± 1HZ;
2) Input power: 110W; ±10%;
3) Ozone concentration range: 20~60mg/L;
4) Error range: ±20%;
5) Working environment temperature: +5 ° C ~ +40 ° C (not frozen);
6) Working environment humidity: 75% RH (non-condensing)
1.2 Features

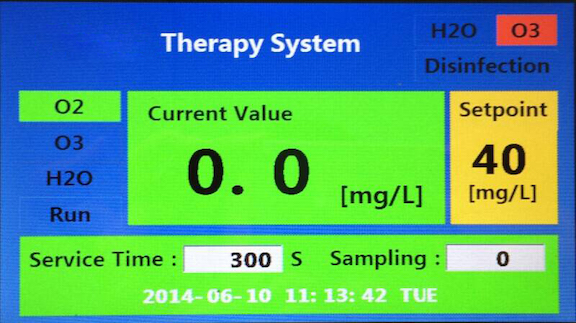

1) Touch color LCD display with friendly interface.
2) The main machine adopts imported PLC control with high control precision and high reliability and stability.
3) The ozone output concentration can be set as needed, and the setting parameters are automatically stored.
4) Adopt online analyzer, stable performance and long service life.
5) The control system can calculate the discharge chamber running time and the number of system operations, and the power loss is not lost.
6) Complete residual gas degradation system, which can quickly deodorize ozone gas to release new oxygen.
1.3 Performance Structure
The main body of CHW-OZ80A ozone treatment instrument is composed of temperature and pressure collection unit, oxygen filtration unit, ozone generating unit, ozone filtering unit and concentration control system.
1. 4 Scope of application
It is used to relieve chronic low back pain caused by lumbar disc herniation, cervical disc herniation, joint pain, hepatitis B, cardiovascular disease, hyperlipidemia, cerebral infarction, and gynecological inflammation.
Ozone therapy device operation process
1. Connect the power cord, turn on the switch, turn on the oxygen cylinder, and the display O2 lights up.
2. Press the “Mode Select” button, select “Disinfection Mode”, press the “Work” button, and the machine will automatically disinfect after 180 seconds. The inlet and outlet two-way valves are closed during disinfection.
3. Add physiological saline. The maximum volume of the water container of this equipment is 500ml. Do not exceed it. After the water is added, close the inlet two-way valve.
4. Water: Press “Mode Select” button, select “H2O”, press “Set” button, press or button to adjust the concentration, press “OK”, then press “Work”, the machine starts 420 seconds water countdown. At the end of 420 seconds, the water is completed, the machine is in the 420 seconds standby countdown, ozone water enters the water bottle, and water can be taken. After the 420 second countdown is over, the machine performs another 420 seconds of water production and reciprocating cycles.
5. Gas production mode: Press “Mode selection” button, select “O3”, press “Set” button, press or button to adjust the density, press “OK”, then press “Work”. The value on the left side of the display is close to the setting. The value, "O3" flashes, you can take the gas. The machine works continuously for 300 seconds and can be taken at any time within 300 seconds.
6. Shutdown: Discharge the water from the machine every afternoon before work, turn off the oxygen cylinder valve, press the switch, and shut down.
7. When disinfecting: use medical alcohol, it is strictly prohibited to use iodophor. The liquid is forbidden to be placed on the console and is not allowed to be pressed.
Teaching and training
Henan and Shenzhen regularly holds a national clinical training course on pain rehabilitation. The cooperative hospitals can participate free of charge. There are several minimally invasive surgery and soft wound treatments every day for clinical observation and study by the partners. We hold several large-scale professional seminars every year to provide a good academic platform for partners.
