SFDA registered domestic large-scale medical ozone therapy device;
Self-correction of ozone concentration under disturbed parameters of pressure and temperature；
Automatic restoration of ozone catalytic reduction system at 60 °C constant temperature and 120 °C programmed heating;
Built-in ozone gas temperature and pressure sensor, gas leakage and overpressure protective valve for its safety and effectiveness;
Adoption of original German SIEMENS S7 series for the main control system;
The efficient and longevity ozone generator adopting advanced German titanium alloy substrate and ceramic plate dielectric surface discharge technology;
light source Ozone Concentration Sensor has won national scientific and technological achievements appraisal for its national initiative technology;
18 national patentsacquired for each technology of the unit.

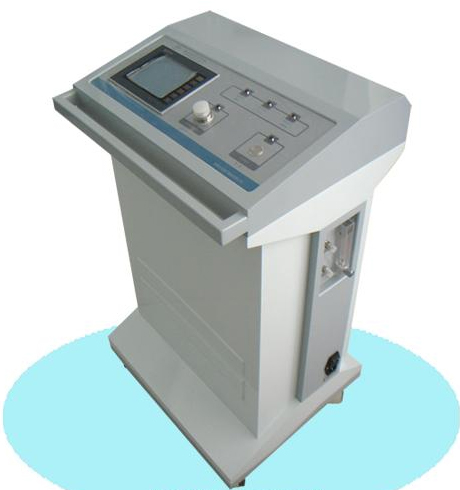

Vertical Medical Ozone Therapy Unit
CHW-OZ100
Features:
SFDA registered domestic large-scale medical ozone therapy device;
Self-correction of ozone concentration under disturbed parameters of pressure and temperature；
Automatic restoration of ozone catalytic reduction system at 60 °C constant temperature and 120 °C programmed heating;
Built-in ozone gas temperature and pressure sensor, gas leakage and overpressure protective valve for its safety and effectiveness;
Adoption of original German SIEMENS S7 series for the main control system;
The efficient and longevity ozone generator adopting advanced German titanium alloy substrate and ceramic plate dielectric surface discharge technology;
light source Ozone Concentration Sensor has won national scientific and technological achievements appraisal for its national initiative technology;
18 national patentsacquired for each technology of the unit.
Clinical Application of Medical Ozone Technology
Intra Cervical and Lumbar Disc injection & Intra-articularto treat Cervical and Lumbar Disc Herniation and Osteoarticular diseases.
Ozone sauna and simultaneous nerve root blockage inlateral vertebra to treat herpes zoster, rash and postherpetic neuralgia.
Ozone infiltration injection on local pain spot totreat motor system soft tissue injury pain, Periarthritis of shoulder and arthritis,etc.
Ozone autologous blood transfusion with ozone RectalInsufflation (MAH+RI) to treat acute / chronic viral hepatitis type B&C, drughepatitis, hepatic protection for chemotherapy (NHL), chroniculcerative colitis.
Ozone autologous blood transfusion to treat:
- Viral hepatitis type C, cardiovascular andcerebrovascular diseases such as: coronary sclerosis, difficult brain blood-supply, apoplectic artery obstructive disease, etc.
- Peripheral vascular diseases such as: arterialobstructive diseases, thrombosis obliterans vasculitis, gout, diabetic limbischemia, etc.
- Hyperlipidemia, strengthen the fat (cholesterol and triglyceride) decomposition, resistance to free radicals and prevent aging.
Ozone sauna to treat refractory skin ulcer and injury, such as diabetic foot, bedsore, burn ulcer surface, etc.
Dentistry and other applications: Periodontitis, decayedtooth disinfection, wound disinfection, etc.
Health care and hairdressing effect: After drinking the ozone water and taking the ozone water bath to lose weight, dispel fatigue,conduce to refection, remove age pigment, etc.
Parameter:
Mains Input: AC220V 50Hz
|
Input Oxygen Pressure: 100-150kPa
|
Power≤260vA
|
Output Ozone Concentration: 5-80mg/L
|
Fuse: （2×）T2A250V
|
Display Error: ≤±3％(Maximum Concentration)
|
Operating Temperature: +5℃-+40℃
|
History Records:1000 items
|
Relative Humidity: 30~80％(No Condensation)
|
Size(L*W*H): 620×525×1010mm
|
Input Oxygen Flow Range: 0.3-4L/Min
|
Weight: 39kg
|
