PRODUCT DETAILS

Operating Theatre Light Medical LED Shadowless Ceiling Lamp

Band nameICLEAR
Model No.CHS-LED5/5 series
CertificateISO CE
Add to Favorites

Quick Details

Illuminancy(adjustable) 40,000-180,000Lux
Lamp Bulb Quantity 61
Bulb Type German OSRAM LED bulb

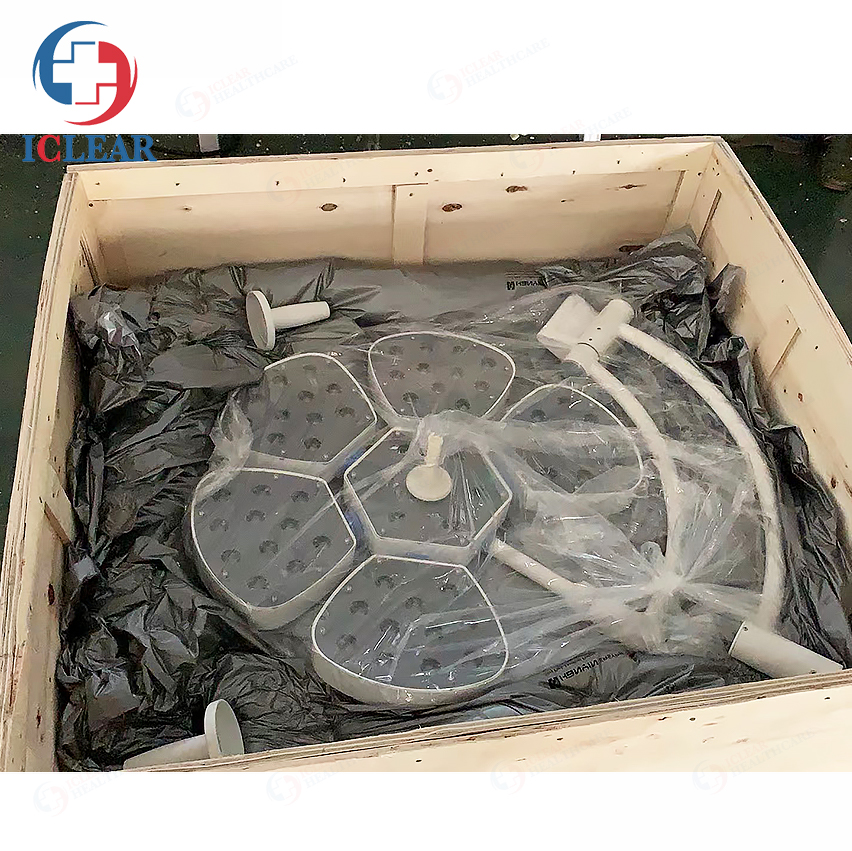

Packaging & Delivery

3 cartons 160kg

Product Description

Operating Theatre Light Medical LED Shadowless Ceiling Lamp
CHS-LED5/5 series


Germany imported lamp beads
Imported French lens
Mould Die-casting Eight edge type Revolving arm
Each LED can be replaced individually, which guarantees maximum economy.


Features

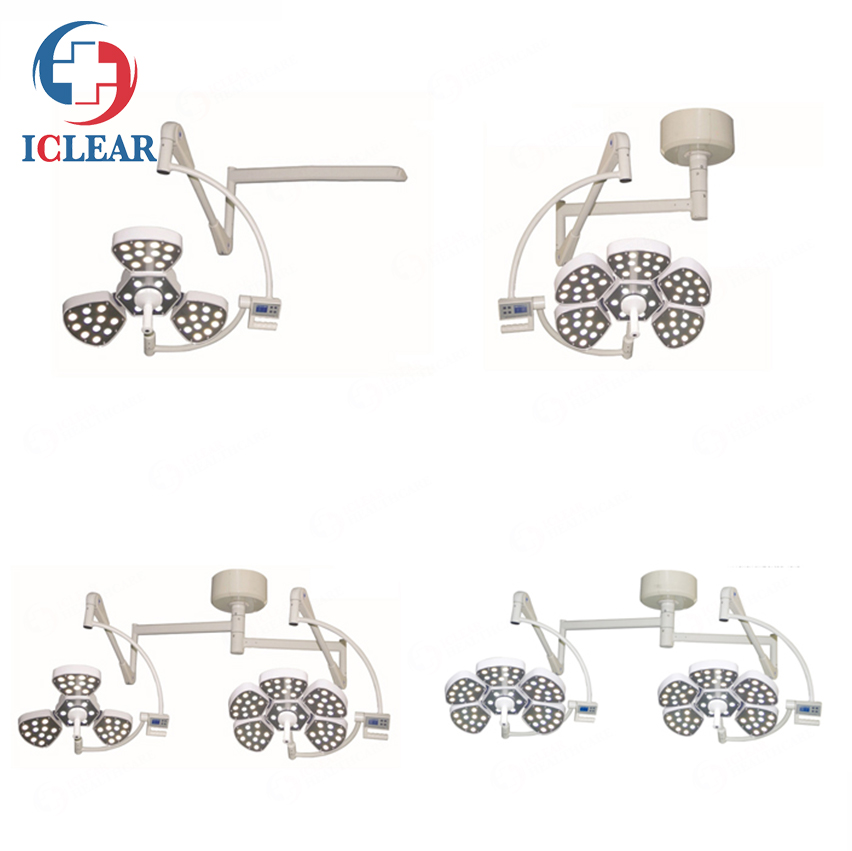

1) Single head, double head, or triple head is optional

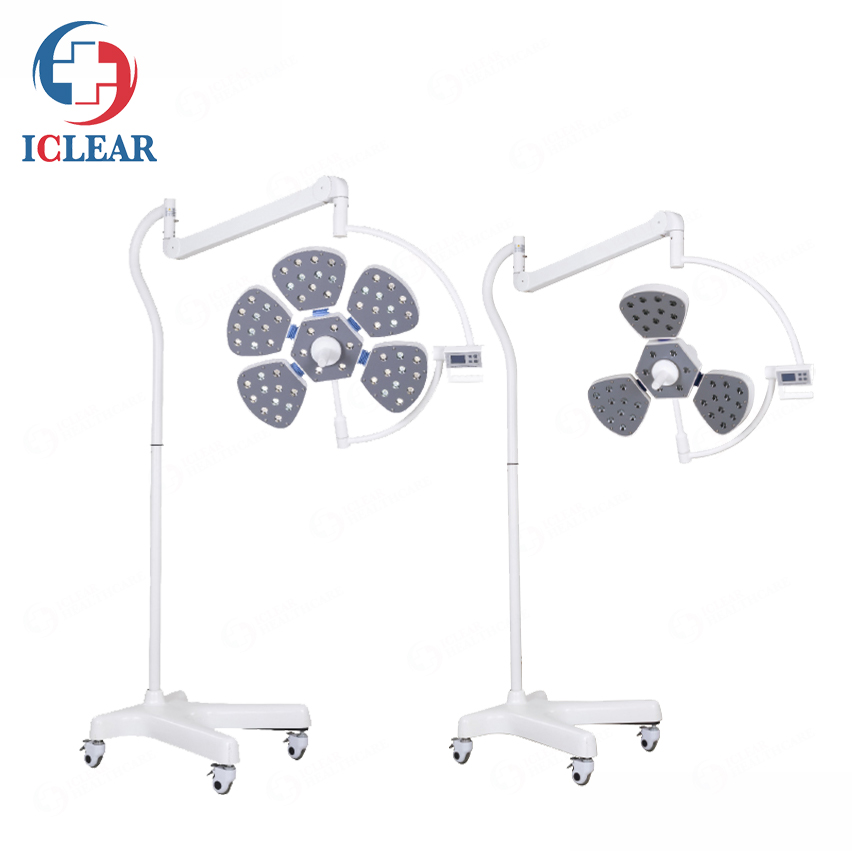

2) Ceiling model, wall-mounted model, or mobile model is optional
3) Camera, monitor, and recorder are optional
4)The max intensity,160000lux is optional
5) The led bulb life is more than 60000 hours
6)Temperature increase over surgeon's head < 1°
7)Led bulb source, more environmental protection, energy conservation
8)360° rotation for all joints, and it can stop at any point smoothly and accurately
9)The intensity and color temperature are adjusted by both the control panel and remote
10)Can be used in hospital ICU operating room, pet hospital, cosmetic surgery hospital, clinic, dental, etc



Technical Parameters LED5 LED3
Illuminancy(adjustable) 40,000-180,000Lux 30,000-160,000Lux
Lamp Bulb Quantity 61 39
Bulb Type German OSRAM LED bulb German  LED bulb
Bulb Life (h) ≥80,000h
Color temp (Kelvin) 3700K ~5000K
Color rendering index(Ra) 85~98
Light Beam Depth 50-180cm
Diameter of Spot (mm) 160-280mm
Light Adjust Range 1%-100%
Consumed power 65 40
Temp Rise (doctor head) < 1℃
Input voltage AC100-240V  50/60HZ
Best Install Height(m) 2.7-3.1m
