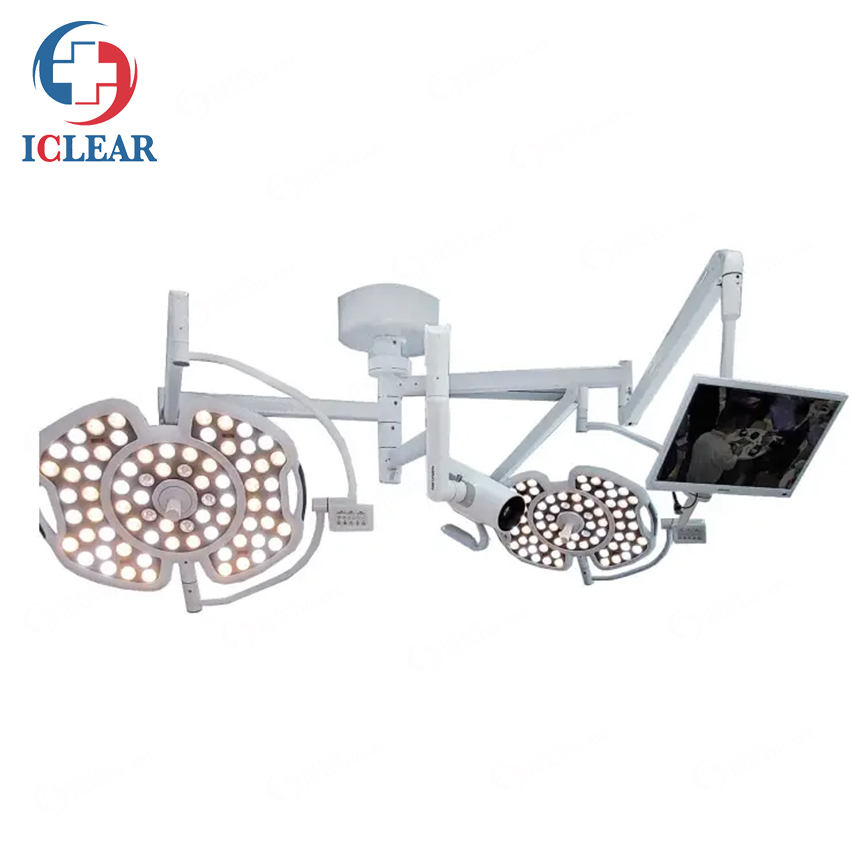

Good Price Integrated Ceiling Operation Lamp with Camera and Monitor

Band nameICLEAR
Model No.CHS-LED series
CertificateISO CE
Add to Favorites

Quick Details

Model LED700
Illuminance(Lux) 40,000-160,000
R9 index yes
R11 index yes
Bulb type OSRAM
Bulb life(hours) >60,000
color temp(k) 3,700-5,000

Packaging & Delivery

2 cartons 112kg

Product Description

Good Price Integrated Overall Surgical Lights Ceiling Operation Lamp with Camera and Monitor

CHS-LED series


Functional characteristics

> The camera system has 4.35 million ultra-high definition pixels, with a central light panel that does not take up space; Equipped with a built-in ND filter and multiple scene modes, it is more suitable for shooting without shadows.

> Adopting a new type of LED cold light source, it is energy-saving, environmentally friendly, and has an ultra-long service life of over 80000 hours. The head temperature rise of the operator is less than 1 ºC.

The lamp head adopts the most scientific radian, with built-in eight zones, molded, and multi-point light source design. The light spot adjustment is flexible, making the light spot illumination more uniform. When the surgical lamp is partially blocked, it can also achieve a perfect shadowless effect.

> Adopting LCD display button control, it can adjust the power switch, illumination, color temperature, etc. to meet the requirements of medical staff for different patient surgical brightness.

> Digital memory function, automatically remembers the appropriate lighting level and does not require debugging when turned on again.

> Multiple centralized control methods with the same power and multiple groups, ensuring that single LED damage does not affect surgical lighting requirements.

> Rotating arm, made of new alloy material with eight edges;

> Balance system 2.2



Specifications

Model LED700 LED500
Illuminance(Lux) 40,000-160,000 30,000-140,000
R9 index yes yes
R11 index yes yes
Bulb type OSRAM OSRAM
Bulb life(hours) >60,000  >60,000
color temp(k) 3,700-5,000 3,700-5,000
Color rendering index(Ra) 85-98 85-98
Lightbeam depth 1300mm 1300mm
Bright adjust range 1%-100% 1%-100%
Temp rise(doctor head ) <1° <1°
light spot 160-280mm 160-280mm



Packing list
No. Name Quantity/Unit
1  Lamp holder 1 unit
2  Rotating arm+fixed seat 1 set
3  Balancing arm 1 set
4  Central surgical field camera 1 set
5  Recording and display terminal (all-in-one machine) 1 set
6  Switching Mode Power Supply 1 piece
7  Disinfection handle 2 pieces
8  Allen wrench 1 set
9  Fixed bolts for installation 1 set
10  Shield bottom support 1 set
11  Large shield 1 set
12  Certificate of conformity 1 copy
13  User Manual 1 copy
