PRODUCT DETAILS

Integrated Automated Nucleic Acid Extraction and Fluorescence Quantitative PCR System

Band nameICLEAR

Model No.CHL-Gene series

CertificateISO CE

Add to Favorites

Quick Details

•Closed Detection

•Automatic Detection

•Multi-Channel Detection

•Intuitive Software

•Open and Compatible

•Multiple Detection Types

•Flexible Throughput

Packaging & Delivery

124×292×427 mm 25kg

Product Description

Integrated Automated Nucleic Acid Extraction and Fluorescence Quantitative PCR System

CHL-Gene series

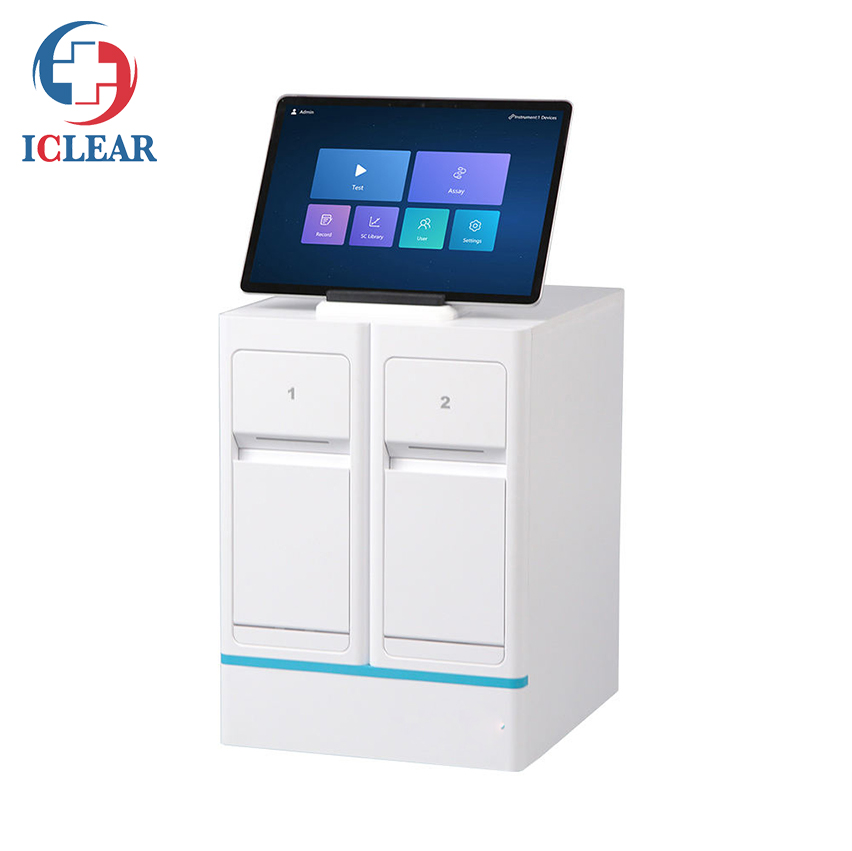

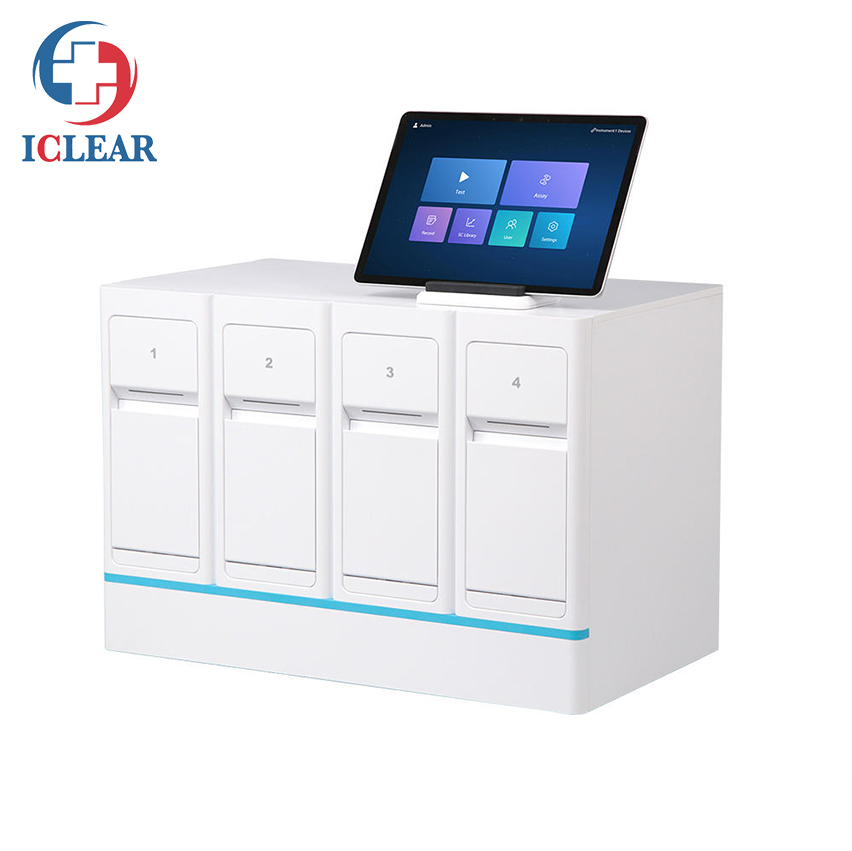

CHL-Gene series automated nucleic acid extraction and PCR system includes three models: Gene 1, Gene 2 and Gene 4, which can handle 1, 2 and 4 samples at the same time. Various models can be freely combined, and up to 16 samples can be extracted and tested at the same time.

The instrument includes 4 fuorescence detection channels, which can achieve multiple detection projects of one sample at the same time, and strict self-checking mechanism ensures the accuracy of the results.

Inaddition, instrument innovatively adds aquantitative detection function, which can freely select the output qualitative or quantitative detection results according to actual needs.

The instrument is small and fexible with 10.5-inch touch screen. Equipped with intuitive interface and stable operation software, it's an ideal choice for on-site fast detection!

Features

•Closed Detection

Disposable independent card box design, each sample corresponds to an independent card box, which avoids contamination between samples, and excellent sealing avoids pollution caused by aerosol leakage.

•Automatic Detection

Adopting reagent freeze-drying technology, reagent card box completes the pre-packaged nucleic acid extraction reagent and PCR reaction reagent before leaving the factory, without manual addition. The operator only needs to manually add samples and magnetic beads and the manual operation time is ≤ 2 min, truly realizing "samples in, results out".

•Multi-Channel Detection

Each sample has 4 channels for detection. The excitation-emission wavelengths are 470-510 nm, 530-565 nm, 585-620 nm and 630-665 nm, respectively. Multiple detection items can be detected simultaneously.

•Intuitive Software

Visualized interface and user authorization management. The administrator has the highest authority.

•Open and Compatible

Gene series automated nucleic acid extraction and PCR system has good adaptability and high software openness. Adopting open software design, which can be adapted to all kinds of magnetic bead extraction and detection kits on the market.

•Multiple Detection Types

According to customer needs, three PCR types are available: qualitative, quantitative, and SNP. The quantitative results are directly obtained by the nucleic acid copy number according to the built -in standard curve to achieve precise detection of the samples.

•Flexible Throughput

The instrument is small and portable. Customers can choose different throughput instruments according to the needs, and each throughput operates independently without affecting each other, which can be expandable.

Specifications

Model		CHL-Gene 1/Gene 2/Gene 4
Throughput		2001/2/4
Consumable well number		4 reagent chambers, supporting pre-packaged liquid reagents
		1 sample chamber with sealing cover
		1 detection well, supporting PCR amplification and fluorescence detection
Sample chamber capacity		Maximum capacity is 3 mL, the working volume is about 2.5 mL
Magnetic method		Bottom magnetic absorption
Extraction temperature	Heating method	Lysis well and elution well can be heated
performance	Heating range	RT. ~ 120 °C
	Temperature accuracy	±0.5 °C
Extraction performance	Extraction time	According to the reagent scheme, generally 25 ~ 30 min for each sample
Extraction performance	Extraction consistency	CV≤5 %
PCR amplification	Average heating rate	Module from 50 °C ~ 95 °C: ≥6 °C/s
	Maximum heating rate	Module from 50 °C ~ 95 °C: ≥10 °C/s
	Average cooling rate	Module from 95 °C ~ 50 °C: ≥4.5 °C/s
	Maximum cooling rate	Module from 95 °C ~ 50 °C: ≥8 °C/s
	Temperature accuracy	≤±0.2 °C
	Module temperature control accuracy	≤±0.2 °C 55 °C
Detection module	Fluorescence detection channel	4 (470-510 nm, 530-565 nm, 585-620 nm, 630-665 nm)
Applicable fluorescent dyes		FAM / HEX / ROX / CY5
Detection time		According to the reagent scheme, generally 35 ~ 50 min for each sample
Sterilization		Each sample channel is equipped with an independent UV sterilization lamp
Software operation		Windows system software, supporting personalized function customization
Report output		Support connecting external printer and printing test reports
External interface		1×RS232 port; 1×B-USB port; 1×LAN port
Information management		Support external code scanner, which can input sample / reagent information
		Expandable LIS system connection
		Expandable cloud database connection
Dimension (W×D×H) mm		124×292×427 / 248×292×427 / 496×292×427
