PRODUCT DETAILS

96-well Plate 6 Gradient Mode Lab Gene Real Time Quantitative PCR QPCR Instrument

Band nameICLEAR

Model No.CHL-Gene496/696

CertificateISO CE

Add to Favorites

Quick Details

* Top imaging technology was adopted to collect 96-well fuorescent signals without detection time diference.
* Fast detection, single channel detection need only 1 second.

* Long-life LED light source: adopting maintenance-free long-life LED light source, no need to replace the light source regularly, and the light intensity distribution is uniform.

Packaging & Delivery

298x530x430 mm 18kg

Product Description

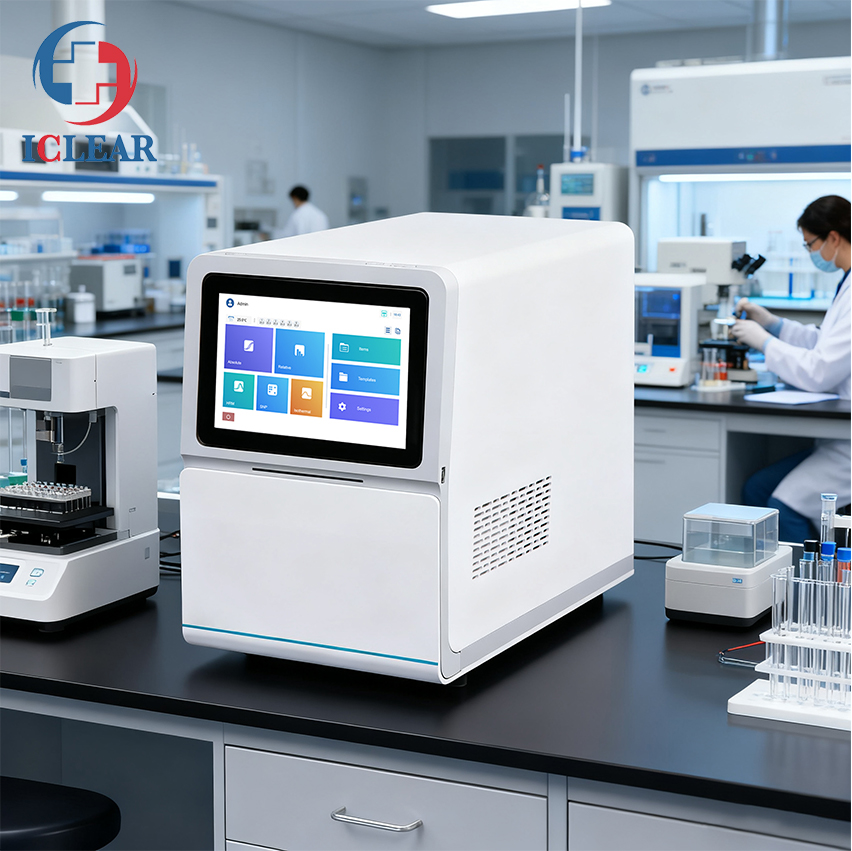

96-well plate 6 Gradient Mode Lab Gene Real Time Quantitative PCR QPCR Instrument

CHL-Gene496/696

CHL-Gene496 / 696 real-time PCR system adopts mature thermoelectric refrigeration technology, brand-newlight source andlight path design.The unique constant-current power and multi-zone independent temperature control method ensure more rapid, correct and stable fuorescence quantitative analysis of the product, while maintaining its excellent performance in low energy consumption. The product is modularized with various confgurations to choose from. Meanwhile, it has been added with functions including independent temperature control, low-temperature storage of sample at 4 °C, and automatic dehumidifcation.

It's mainly applied in gene expression, genotyping (detection), cloning, mutation, methylation analysis, sequencing, medicine, forensic medicine and applied science.

Features

* Top imaging technology was adopted to collect 96-well fuorescent signals without detection time diference.
* Fast detection, single channel detection need only 1 second.

* Long-life LED light source: adopting maintenance-free long-life LED light source, no need to replace the light source regularly, and the light intensity distribution is uniform.

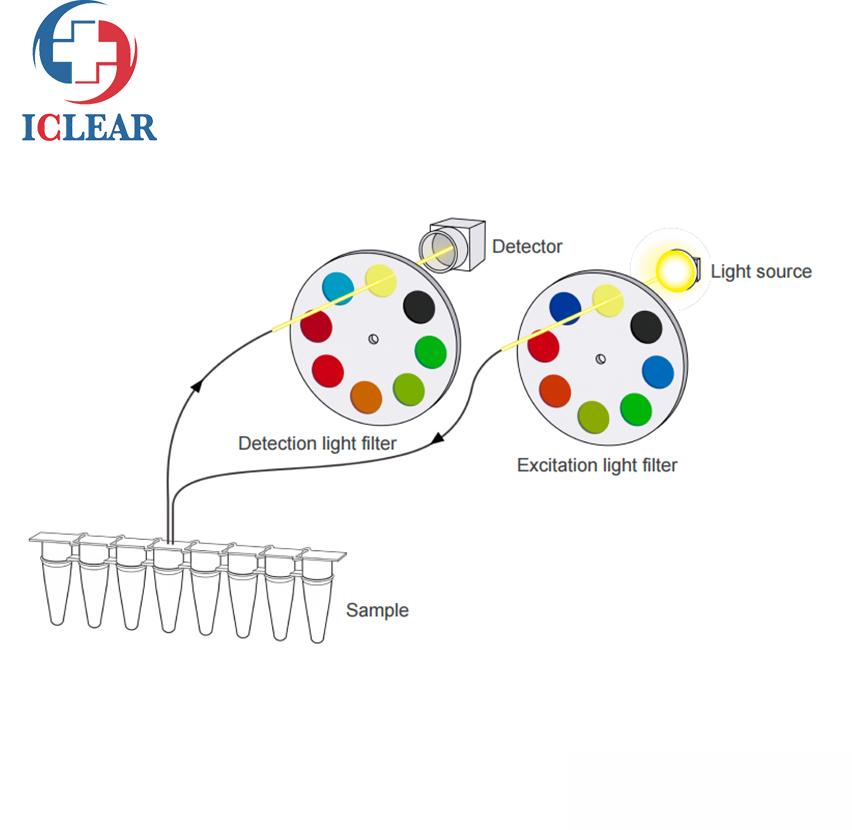

* The excitation and detection channels adopt independent flter wheels. The flter can be switched quickly, and the channels can be freelycombined,whichcancopewithmultipledetectionexperiments without expanding the channel.

* Using optical fber conduction to improve the fuorescence signal strength, reduce the optical conduction loss, and eliminate the edge efect in the optical path.

Specifications

Model	CHL-Gene496/Gene696
Detection channel / applied dyes	CHL-Gene 496 / 496A
	F1: FAM, SYBR Green I, etc.
	F2: HEX, JOE, VIC, etc.
	F3: ROX, TEXAS-RED
	F4: Cy5, Quasar-670
Detection channel / applied dyes	CHL-Gene496A/Gene696A
	F1: FAM, SYBR Green I, etc.
	F2: HEX, JOE, VIC, etc.
	F3: ROX, TEXAS-RED
	F4: Cy5, Quasar-670
	F5: Cy5.5
	F6: Can be customized, default is FRET

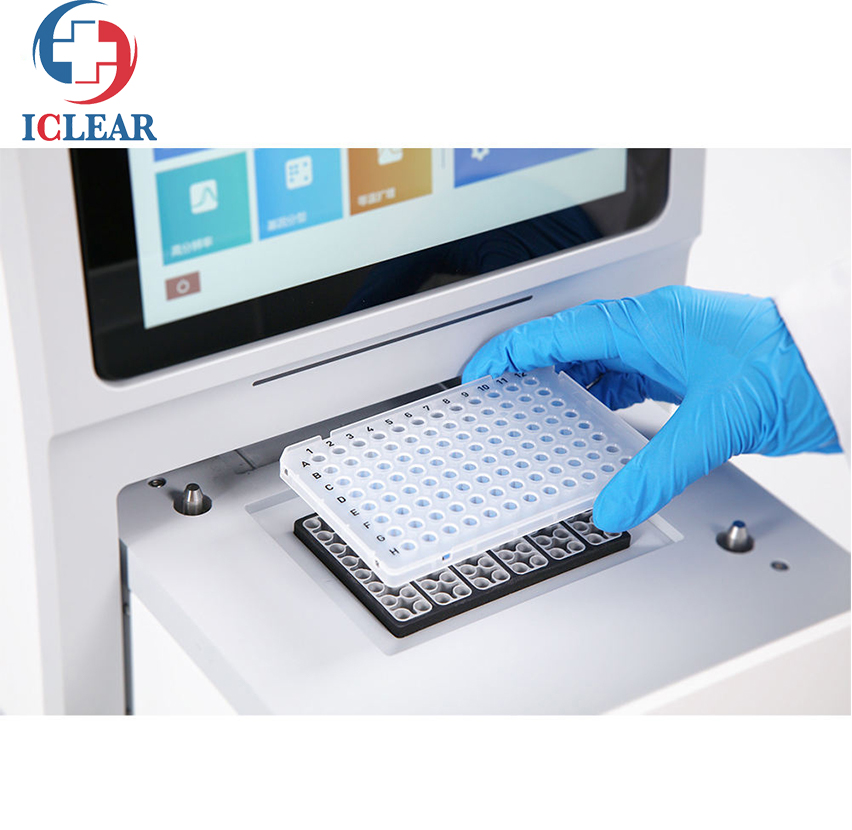

Applicable centrifuge tube (496 / 696)	0.2 mL 96-well plate, single tube, 8-strip tube
Applicable centrifuge tube (496A / 696A)	0.1 mL 96-well plate, single tube, 8-strip tube
Sample system size	10~100 μL
Linear range	100 ~1010 Copies/μL
Min. detection range	1 Copy
Excitation light source	High power white LED
Detecting element	High-performance CMOS
Ct repeatability	CV ≤1 %
Sample linearity (Ct)	\|r\| ≥0.999
Temp. range	4~99.9 °C
Temp. control mode	Block control / tube control
Average heating rate	3.5 °C/s
Average cooling rate	2.5 °C/s
Temp. uniformity	±0.2 °C @95 °C
Temp. accuracy	±0.15 °C
Temp. control precision	0.1 °C
Melting temp.	Minimum differentiation 0.1 °C
Gradient mode	6 gradient temperature control
Gradient temp. range	1~40 °C
Thermo lid temp.	30~110 °C
Display screen	10.1-inch touch screen
Dimension (WDH)	298 mm×530 mm×430 mm
Input power	100~240 VAC 50~60 Hz
External port	USB (Type A)×3, LAN ×1
Wireless function	Expandable wireless transmission function, support LIS function
Data export format	Excel, PDF
