Infrared optical detection technology

Automatically scanning blood and location of the plasma interface from time to time with accurate positioning

Internal thermal printeEr SR curve display and print-out

Automatically adjusting the ESR results under the detecting temperature (15.C -32.C)to the ESR values at 18℃ closely related with Westergren results

The results are not interfered by as jaundice hemolysis or chyle

Dimension  320mm×260mm×158mm (L×W×H)

Net weight  5.0 kg

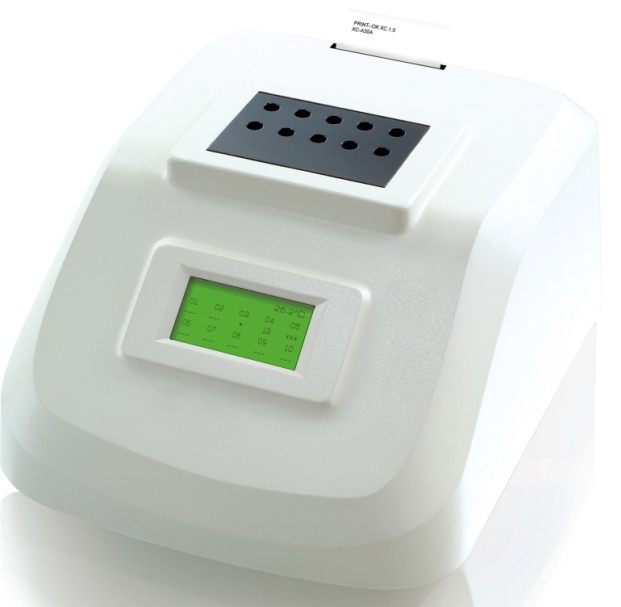

ESR Analyzer / Erythrocyte Sedimentation Rate Analyzer

CHL-A10

Features
Infrared optical detection technology
Automatically scanning blood cells and location of the plasma interface from time to time with accurate positioning
Internal thermal printer, ESR curve display and print-out

Automatically amending the ESR results under the detecting temperature (15°C ~32°C)to the ESR values at 18°C, closely related with Westergren results

The results are not interfered by high levels of hemoglobin, bilirubin or triglyceride

Technical Parameters
Measuring principle        Infrared barrier
Measuring time               30 minutes
Measuring precision        <0.2 mm
Reproducibility                 < 3%
Temperature Precision     <0.3°C
Sample volumn                <1.6mL whole blood anticoagulant
Reading channel              10
Display                              LCD screen with backlight
Interface                            RS-232 serial port
Print                                   Internal thermal recorder
Operation conditions         Temperature  15C°~32°C
Humidity                            ≤85%
Power supply                     AC 220V/110V ±10%, 50/60 Hz
Dimension                         320mm×260mm×158mm (L×W×H)
Net weight                         5.0 kg
