Descriptions:

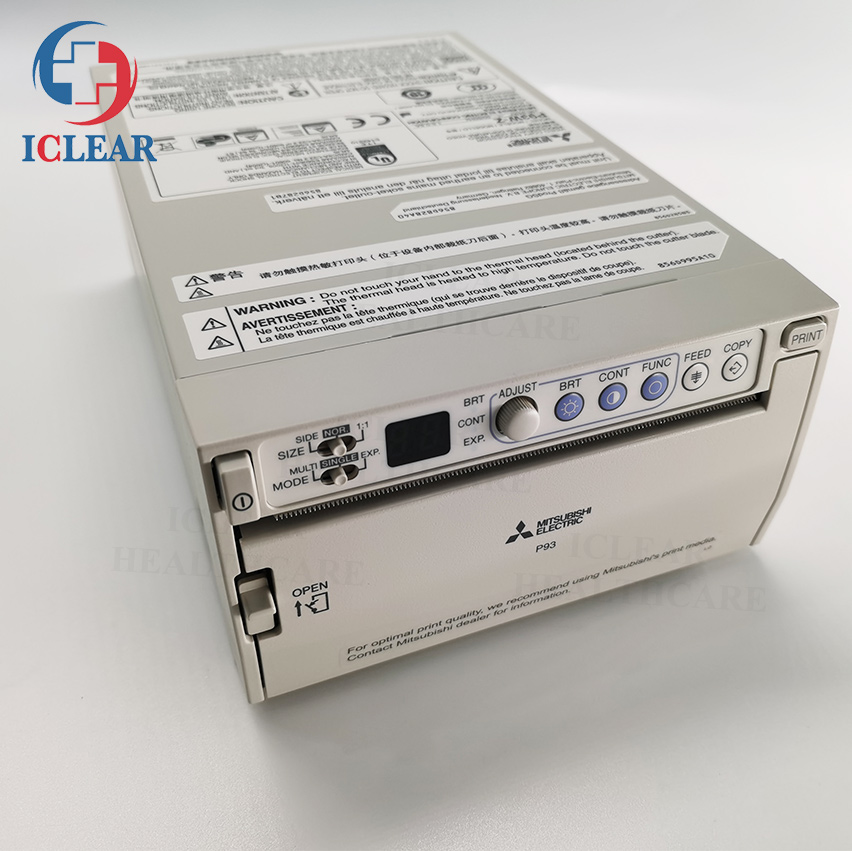

It is a black and white ultrasound scanner video image printer.
Applications: Mainly used for ultrasound scanner image output.
Features:
| High-speed printing; |
| High stability; |
| The high-density print head and thermal paper matched to reproduce detailed images; |
| High precision and appropriate size of print options; |
| Front-button easy to operation; |
| Mitsubishi unique large area, easy to read LED digital display; |
| A variety of image size can be easily set by the user; |
| Widely used in medical diagnosis. |
Specifications:
Printing Method: Direct thermal printing;
Thermal Head: Thin-film thermal head(1280dots);
Gradations: True 256 gray balance;
Resolution: 325 DPI;
Printed Picture Size: 4"(W) x 12 5/8"(H);
Effective Pixels: EIA 1280 dot x 508 lines; CCIR: 1280 dot x 608 lines
Memory: 10 frames
Input/Output: Video In BNC, CCIR, or EIA composite video signal, 1.0
Vp-p, 75 ohms/ high impedance selectable
Video Out: BNC, Loop-through, or E to E selectable
Print Speed: Approximately 3.3seconds (High-Speed Mode)
Remote Terminal: Stereo Mini-jack
Power Requirements: 100V to 240V, 50/60 Hz, 1.5A to 0.8A (Worldwide)
Dimensions (WHD): 154× 89.5× 256mm(W× H× D)
Weight: 2.8kg
Safety Standards: UL60950-1 Listed CSA C22.2 No. 60950-1 UL60601-1 Listed CSA No. 60601-1
Supplied Accessories: AC Power Cord
Operation Manual (CD ROM)
Thermal Head Cleaning Sheet
BNC Video Connecting Cable
K65HM High Gloss Paper (1 Roll)
Media (not included): K65HM High Gloss Paper
K91HG High-Density Paper
K61B Standard Paper
