0.001mg/L-1mg/L Total Organic Carbon Analyzer (TOC)

Band nameICLEAR
Model No.CHL-TOC1
CertificateISO CE
Add to Favorites

Quick Details

Detection limit: 0.001mg / L
Detection accuracy: ± 5%
Detection range: 0.001mg/L-1.000mg/L
Analysis time: 4min
Response Time: within15 min
Sample temperature :1-95 ℃
Ambient temperature: 10~40℃ temperature variation ± 5 ℃ / d or less
Internal sample flow rate:  0.5 mL/min

Packaging & Delivery

Basic dimensions: (L*W*H) 39cm×20cm×22cm
30KG

Product Description

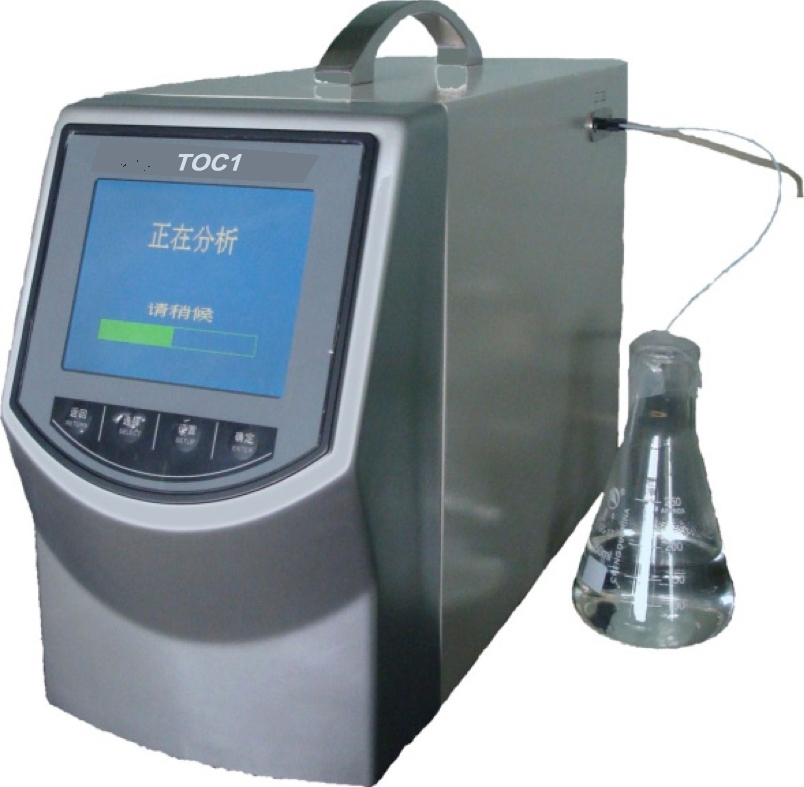

0.001mg/L-1mg/L Total Organic Carbon Analyzer (TOC)

CHL-TOC1
Introduction
CHL-TOC1 TOC analyzer is a high performance testing analysis instrument. It adopts dual wavelength ultraviolet nano-catalytic oxidation method, with its oxidation capacity increased over 100 times than traditional single-wavelength ultraviolet oxidation. It is of high sensitivity, excluding the influences of catalyst or carrier gas import impurities. It meets the latest requirements of "United States Pharmacopoeia", "European Pharmacopoeia" and "Chinese Pharmacopoeia", and it can be widely used to measure the organic carbon contained in ultra-pure,
pharmaceutical water, drinking water, bio-chemical products, etc.

Features
1. Adopts ultraviolet catalytic oxidation method , and do not need catalyst and carrier gas;
2. We invent the titanium dioxide catalytic coating spiral pipe independently, which is designed for measuring the TOC contained in pharmaceutical water determination;
3. The function of buzzer alarm when it exceeds the upper limit value, which protects the device and avoids misoperation;
4. Optional external line monitoring devices, to meet the needs of online monitoring;
5. Optional automatic sampling device;
6. Meet the "TOC Inspection Act" of CP2010 version and the system suitability requirements of USP chapter 32 to 643;
7. Achieve the CMC certification, Zhejiang system No. 01010406-2.
8. Without adding acid reagent, oxidants, and any gas, no additional maintenance fees.

Parameter
1. Power supply: AC 220V/50Hz
2. Power frequency: 50Hz ± 1Hz
3. Basic dimensions: (L*W*H) 39cm×20cm×22cm
4. Power: 100W
5. Detection limit: 0.001mg / L
6. Detection accuracy: ± 5%
7. Detection range: 0.001mg/L-1.000mg/L
8. Analysis time: 4min
9. Response Time: within15 min
10. Sample temperature :1-95 ℃
11. Ambient temperature: 10~40℃ temperature variation ± 5 ℃ / d or less
12. Internal sample flow rate:  0.5 mL/min
13. Relative humidity: ≤ 85%
14. Repeatability error: ≤ 3%

Application
1. It can measuring the TOC value contained in pure water, deionization water and WFI;
2. Pharmaceutical and biological chemical cleaning validation: The instrument can be used to monitor the water during circulation cleaning in pharmaceutical and biochemical  industry;
3. Monitor the TOC value contained in the purified water of semiconductors.
