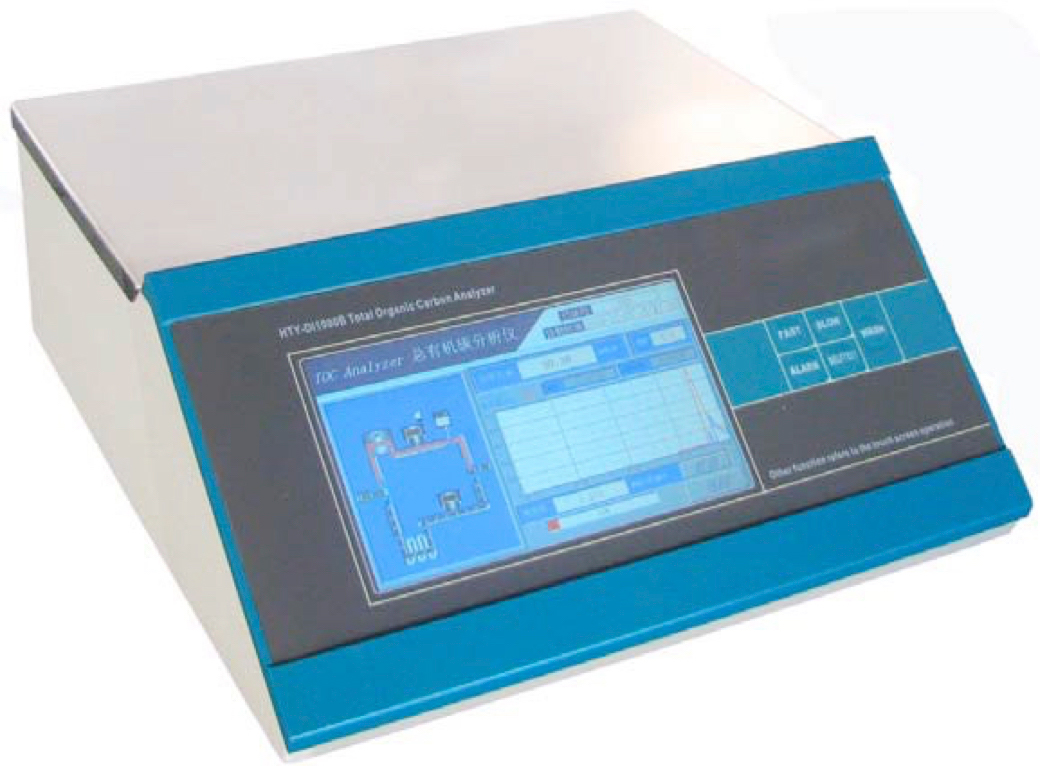

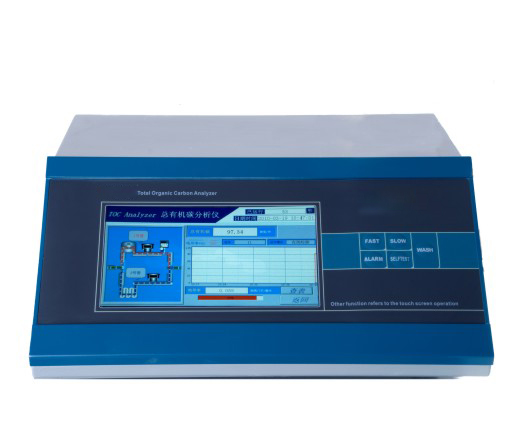

0.01ug/L-1000ug/L Total Organic Carbon Analyzer
CHL-TOC1B
CHL-TOC1B is a computerized, high sensitivity TOC analyzer developed by Tailin. It is used to detect the TOC concentration in purified water, water for injection （WFI） and ultra-purified water. It can display many parameters such as TC, conductivity, Detection lot No., Running mode etc. What’s more, it has the online monitor function.

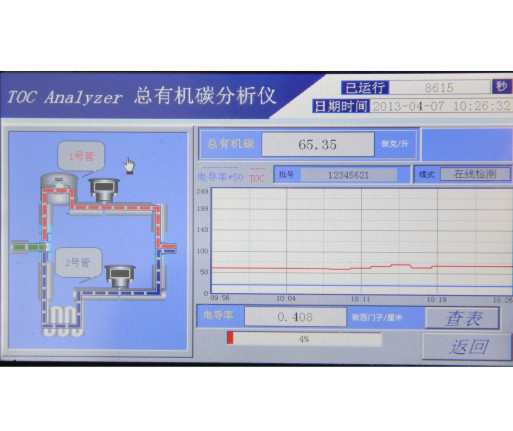

The shortest analyzing interval time is 10 second, while the fastest online detecting time is 10 minutes. The history records are displayed in graphic which could visually show the change of TOC and conductivity.
The working principle is to oxidize the organic matters by UV lamp and convert them into CO2. Then the HTY-CI1000C adopts conductivity detection method to detect the concentration of CO2. After detecting the TC (Total Carbon) and TIC (Total Inorganic Carbon), we can get the TOC (Total Organic Carbon) in the water sample. TOC= TC-TIC.
Features
1.It doesn’t need any acid reagent, oxidant and gas, without additional maintenance cost.
2.High performance CPU, and it is easy to operate because of the large touch screen and graphic menu design.
3.It is specially designed for the deionized water which TOC is no more than 1.000mg/L (1ppm), and the offline and online detection modes can be free switched.
4.Large memory for record storage and the users can look up and print out the record of any date.
5.Fast speed, shortest analyzing interval time is 10 seconds, and shortest offline detection time is 10 minutes
6.It combines the TOC and conductivity meter functions in one machine, so that it could detect the TOC and conductivity at the same time.
7.Compact design, less weight, portable and less energy consumption.
8.Buzzer alarm for over limit, it can warn the operator when it is over the set result.
9.The system compatibility is easy to be inspected based on the USP<643> and EP<2.2.44>
10.Passed the CMC certification (China Metrology Certification).
Parameters
1.Power supply:220 V ± 22 V
2.Frequency: 50 Hz ± 1 Hz
3.Rated power: 100 W
4.Dimensions(LxWxH):14 cm × 32 cm × 32 cm
5.TOC Detection range: 0.01 µg/L～1000.00 µg/L (0.01ppb- 1000ppb)
6.Conductivity Detection range: 0.055 µS/cm ~10.000 µS/cm
7.Detection limit: TOC 0.01 µg/L; conductivity: < 1.0µS/cm
8.Detection accuracy:±5%
9.Analyze time: shortest analyzing interval time is 10s, while the shortest offline analyzing time is 10minutes
10.Feedback time:10 min
11.Sample temperature: 1~95 ℃
12.Ambient temperature: 10~40 ℃
13.Sample flow rate: 0.5 ml/min
14.Relative Humidity≤ 85%
15.Reproducibility tolerance:≤ 3%
Applications
1.It be used to detect the total organic carbon concentration in purified water, water for injection(WFI) and deionized water;
2.It can detect the TOC in the ultra-pure water of semiconductor industry
3.It has the online function to monitor the pharmaceutical preparation system, chip process and ultra-pure water system in the semiconductor industry, deionized water preparation process in power plants.
