PRODUCT DETAILS

Touch Button 6.3M Pixels Lab Gel Electrophoresis Doc Imaging Analyzer

Band nameICLEAR

Model No.CHL-G630

CertificateISO CE

Add to Favorites

Quick Details

Gel and blot imaging and analysis are easy and accurate.

User can safety view the gel in the darkroom through the observational – window.

Two operating gateway supply convenient gel - cutting.

The operation of excitation sources , motorized lens and the imaging taken are controlled by the GIS 1-D software.

Packaging & Delivery

68*56*102cm 67kg

Product Description

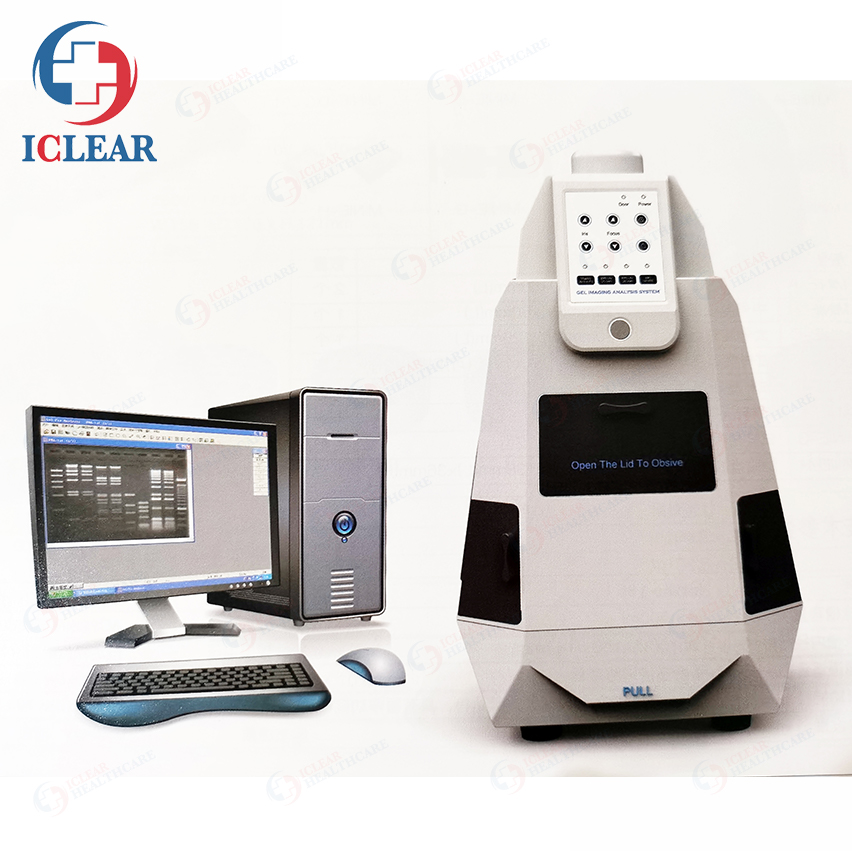

Touch Button 6.3M Pixels Lab Gel Electrophoresis Doc Imaging Analyzer
CHL-G630

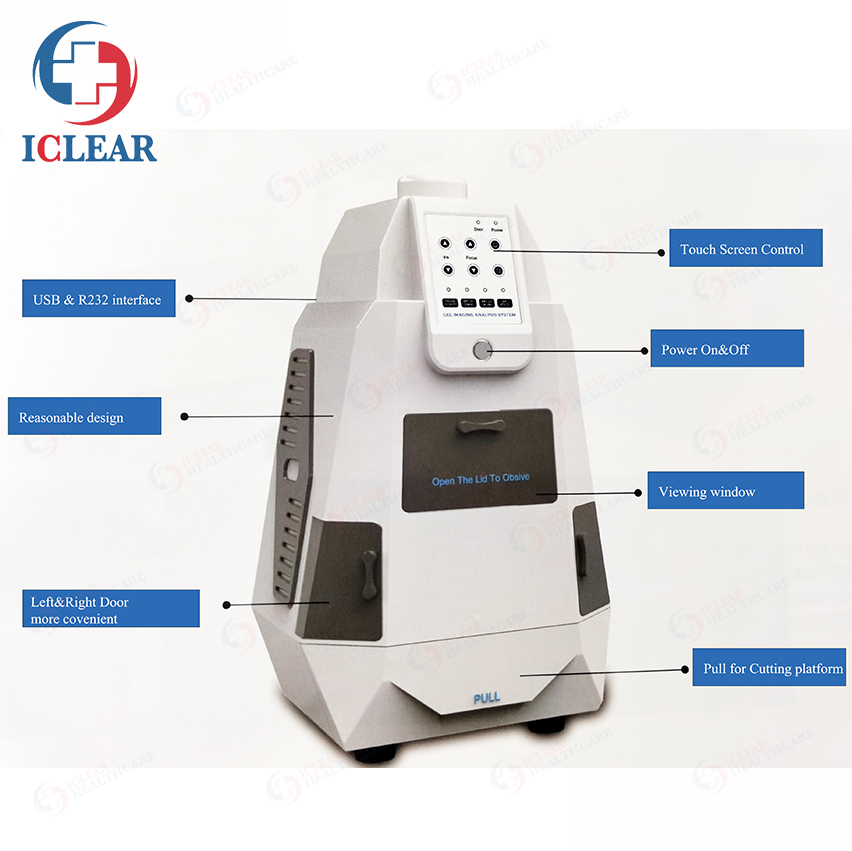

Characteristic feature
1- Exquisite design, user-friendly operation, ABS plastic case, lightweight, small size.
2. Drawer-style gel platform left and right sides of the door design and hidden observation window, convenient to take and place the gel, observation, cutting. Built-in gel placement center indicator, easy to gel positioning placed in the center position.
3- All open the window to open the door with overlapping dislocation seal structure design, enhance the darkroom of the UV transmission effect and space airtight effect, the maximum to avoid UV damage to the human body.
4. Double intensity transmission UV wavelength: 302nm, reflection wavelength: 254,365nm, transmission ultraviolet area: 250mm X 200mm.
5. Equipped with imported low-light high-resolution digital CCD, easy to capture the weak spectrum, real-time browsing display, easy to operate. Six times the optical manual or automatic zoom lens, easy to observe the scaling of the gel.
6. Adopts multi-layer coating filter group, effectively filter out the background interference noise; through the computer to achieve the control of zoom, focus, aperture, UV lamp and white light function; can also be achieved the control of to control zoom, focus, aperture, UV Lights and white light through the panel.
7. With open the door automatically off the Uv, power-off-delay, leakage protection functions, maximum protection of the user from harm.
8. With ultrathin clear panel, using the international leading UV-screen UV white light conversion technology.
9. Configure dedicated gel imaging analysis software; with advanced swimlane, automatic identification function, help to identify, move, adjust, and a number of swimlanes and bands. Export various experimental reports to text or Excel format files. Calculation and comparison of nucleic acid, protein molecular weight, optical density, migration rate, PH value and percentage content. And has 1D and 2D analysis, DotBlot image processing analysis; Analysis function of colony and clone counting image. Used for DNA, RNA, protein and other electrophoresis gel image collection, observation and analysis and preservation.

Specifications

Model	CHL-G630
Camera	Imported low illumination and
Camera	high-resolution digital CCD
Zoom lens	F=1:1.2,2/3 inch imported 6 times zoom lens
Effective Pixels	3072 X 2048.
Pixel density	12bit
Pixel size	2.4X2.4um
Resolution	6.3 million pixels
Sensitivity	Can detect the double chain DNA of EB staining
Sensitivity	below 20pg.
Signal to noise ratio	> 56db
Filter	590nm
UV light transmission area	168X 210mm
Visible light transmittance area	200x 250mm
Phosphorus screen white light	210X 260mm
transmission area	210X 260mm
Transmission UV wavelength	312nm
Reflectance UV wavelength	254.365nm
Transmission UV lamp power	302nm (8W)
Reflectance UV lamp power	254nm (11W) s 365nm (11W)
Input power	AC220V/110V,50/60Hz
Fuse	250V 3A ID 5x20
Dimensions (WXDXH)	W.450X D.440X H.770mm
Net weight	21.5kgs
