Overview
Tap density is the corresponding mass in unit volume. Powder density is usually smaller than its real density due to the gap among or inside particles. It is divided into bulk density and tap density by different test methods. Bulk density is obtained by evenly and continuously loading measuring cup in identified volume with bulk powder, weigh cup and powder to calculate bulk density. Tap density is measured after tapping bulk powder under certain requirements.

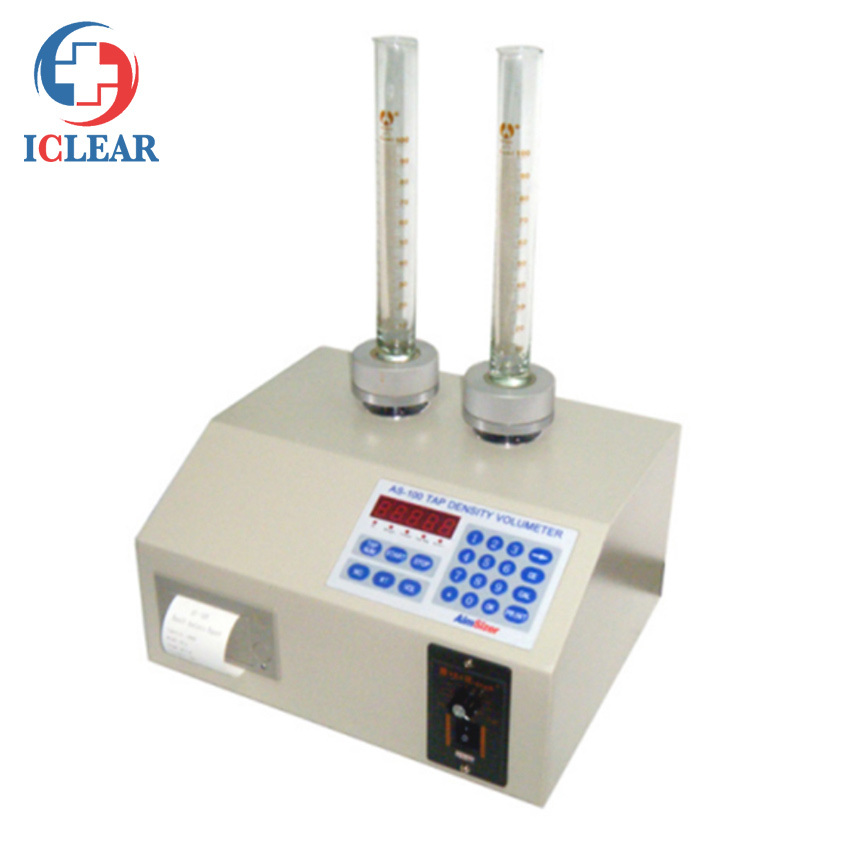

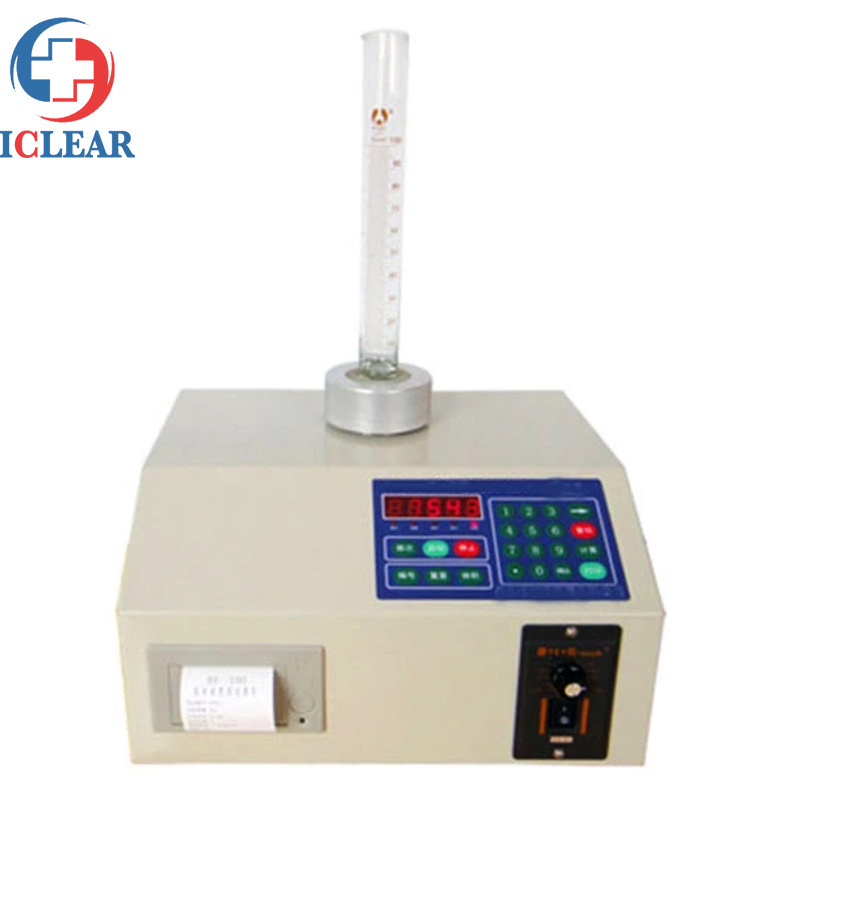

CHL-TD100 is manufactured according to both National standard
GB/T 5162-2006/ISO3953:1993 and USP. It complies with all required specifications of GB/T 5162-2006/ISO3953:1993
It comprises a speed-adjustable motor, vibrating assembly, micro-computer and micro printer featuring compact structure, robustness, and easy operation.
Specifications
Sample weight: ≤500.00g
Tapped sample volume: ≤250.00ml
Number of tapping: 0-99999
(set 0 to output bulk density)
Motor torch: 0.86 N.m.
Frequency: 0-300rpm (adjustable)
Magnitude: Max 15mm
(adjustable in integer from 1-15mm)
Repeatability: ≤1%
Accuracy: ≤1%
Input power: AC 220V (50Hz/60Hz)
