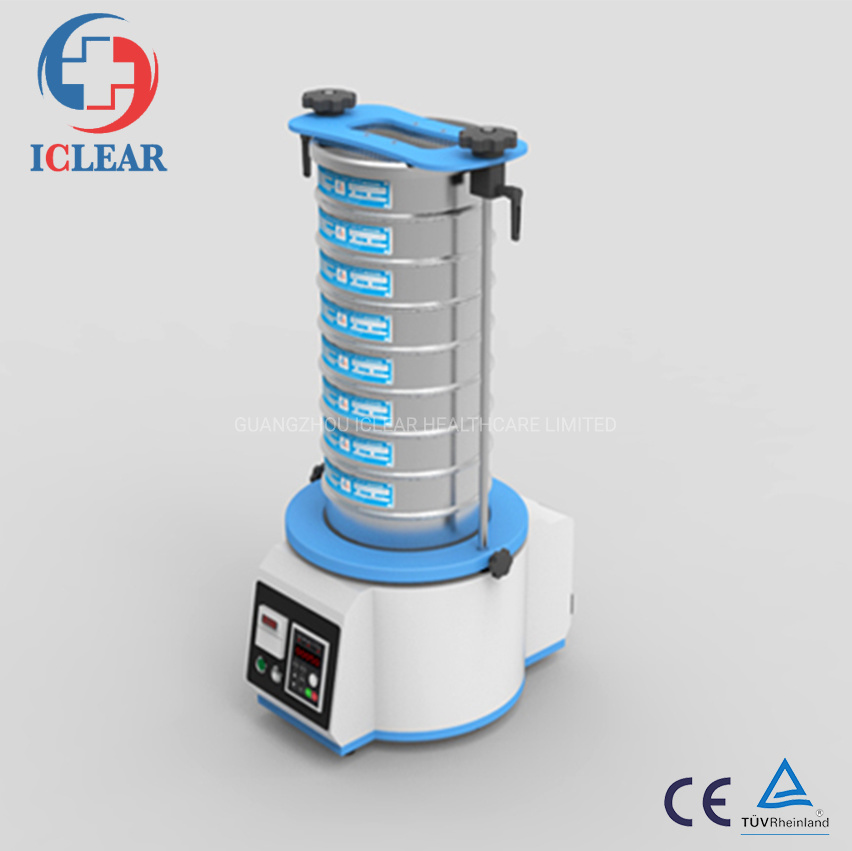

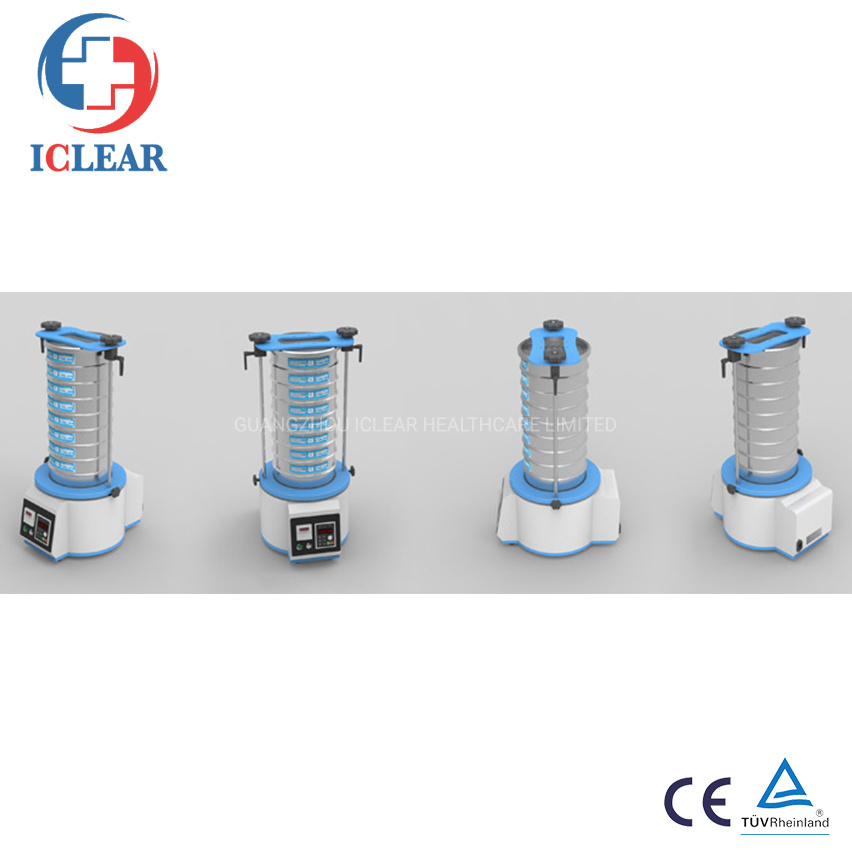

3D 13 Layers Mechanical Vibrating Lab Sieve Shaker Sieving Machine

Band nameICLEAR
Model No.CHL-ID400
CertificateISO CE
Add to Favorites

Quick Details

Microprocessor control and digital display of all functions
Intermittent mode for sieving low density voluminous material reducing sieving time
Micro-mode and micro-intermittent mode for micro sieving of fine materials 20 µm to 100 µm
Programme selection for storing up to 10 individual sieve programmes
Energy-saving mode - the instrument switches automatically to standby
Modular system for wide-ranging application options
Optimum power consumption prevents warming up of the sieving system
Up to 13 test sieves can be used simultaneously per working cycle

Packaging & Delivery

300*405*685mm    68kg

Product Description

3D 13 Layers Mechanical Vibrating Lab Sieve Shaker Sieving Machine
CHL-ID400


  • Dry and micro-precision sieving
  • Precise sieving with automatic amplitude control
  • Usable as testing equipment
  • Simple, ergonomic operation

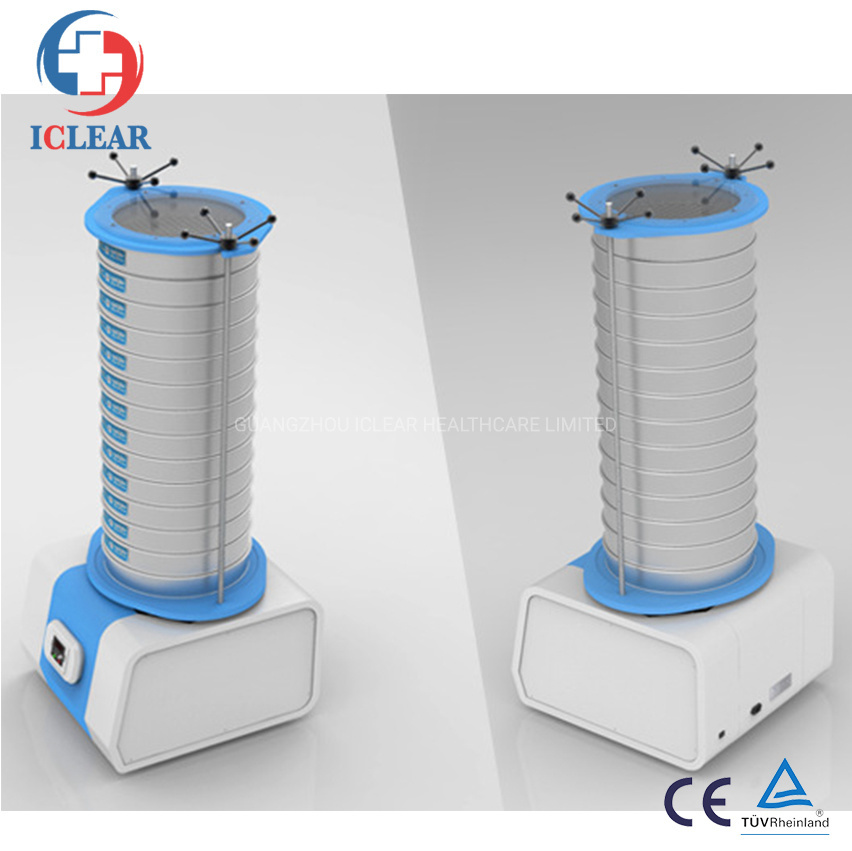

  • Up to 13 test sieves can be used simultaneously per working cycle

IDEAL FOR

        SIEVING

        MEASURING THE QUANTITATIVE

        PARTICLE SIZE DISTRIBUTION OF

        SOLIDS AND SUSPENSIONS

        SEPARATING

        FRACTIONING

Overview

Precise sieving with automatic amplitude control

      The high performance Vibratory Sieve Shaker CHL-ID400 offers everything you need for fast determination of quantitative particle size distribution in the laboratory. As a shaking sieve system with an electromagnetic drive oscillates the sieve stack into regulated vertical oscillations, and is the ideal solution for sieving sample quantities up to 3 kg and a measurement range from 20 μm to 125mm. The sieve shaker is perfectly suited for fast quality control of incoming and outgoing products, offers user-friendly operation and is low-noise, robust and long-lasting. Perfect for quantitative particle size analysis of solids and suspensions of all kinds through dry or wet sieving with woven test sieves or micro-precision sieves. ICLEAR top model with automatic amplitude control, programme selection and the ability to be used as a calibratable and validatable test instrument in test equipment monitoring according to ISO 9001 and much more.

Features of Vibratory Sieve Shaker

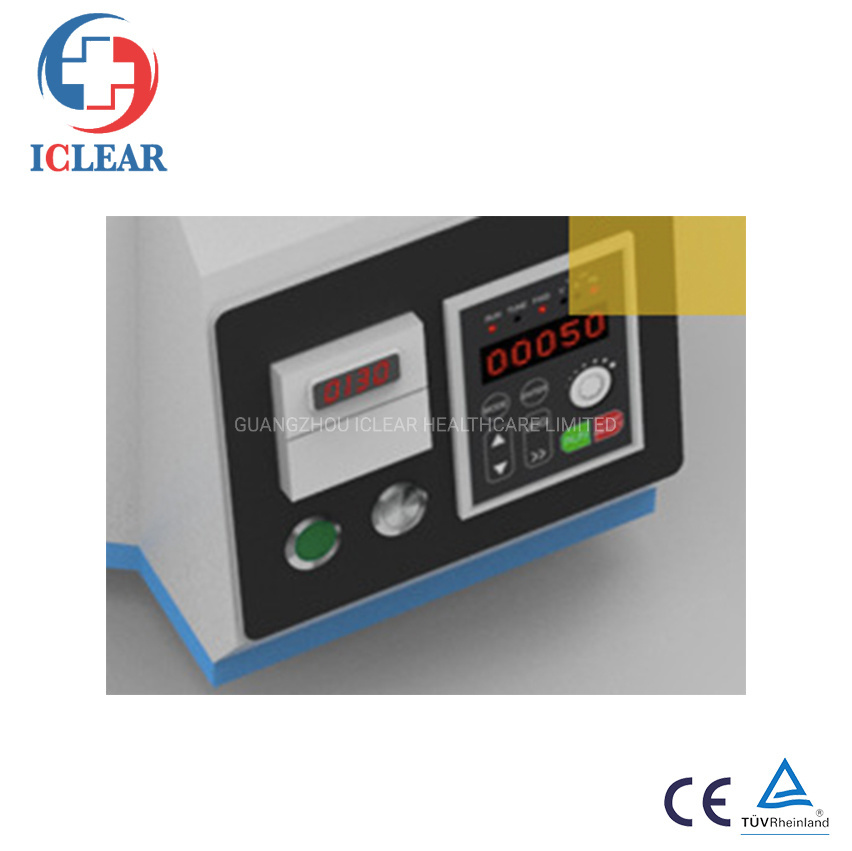

  • Microprocessor control and digital display of all functions
  • Intermittent mode for sieving low density voluminous material reducing sieving time
  • Micro-mode and micro-intermittent mode for micro sieving of fine materials 20 µm to 100 µm
  • Programme selection for storing up to 10 individual sieve programmes
  • Energy-saving mode - the instrument switches automatically to standby
  • Modular system for wide-ranging application options
  • Optimum power consumption prevents warming up of the sieving system
  • Up to 13 test sieves can be used simultaneously per working cycle


Technical Data

Optimal for material type:

solids, suspensions

Item No.:

CHL-ID400

Method of analysis:

sieving

Sieving action:

three-dimensional

Measuring range:

20um - 125mm

Max. sample quantity approx.:

25kg

Sieving time approx.:

00:01:00 - 99:59:59

Sieve diameters:

400mm

Max. number of sieves per sieve stack:

9 /13

Max. weight of sieve stack:

56kg

Max. height of sieve stack:

960mm

Amplitude:

0.8 - 4mm

Amplitude control:

automatic

Intermittent mode

yes

Dry sieving:

yes

Wet sieving:

no

Noise level:

63 dB

Electrical details:

100-120V/200-240V AC ,50-60Hz, 1500W

Plug types:

GB/EU/US/UK standard

Net weight:

68kg

Dimensions (W x D x H):

mm

Product standard:

CE

Patent:

design patent/ noise improve patent

Accessories:

user manual, warranty card
