PRODUCT DETAILS
Portable Dynamic EEG System 16 Lead 24 Hours EEG Holter
Band nameICLEAR
Model No.CHO-CMS4100
CertificateISO CE
Add to Favorites
Quick Details
Calibrating voltage:sine signal 5mm/50uv;deviation:±5%;
Sensitivity:10uV/mm±5%
Noise level:5uV
Packaging & Delivery
127(L)*80.5(W)*31.5(H) mm 1kg
Product Description

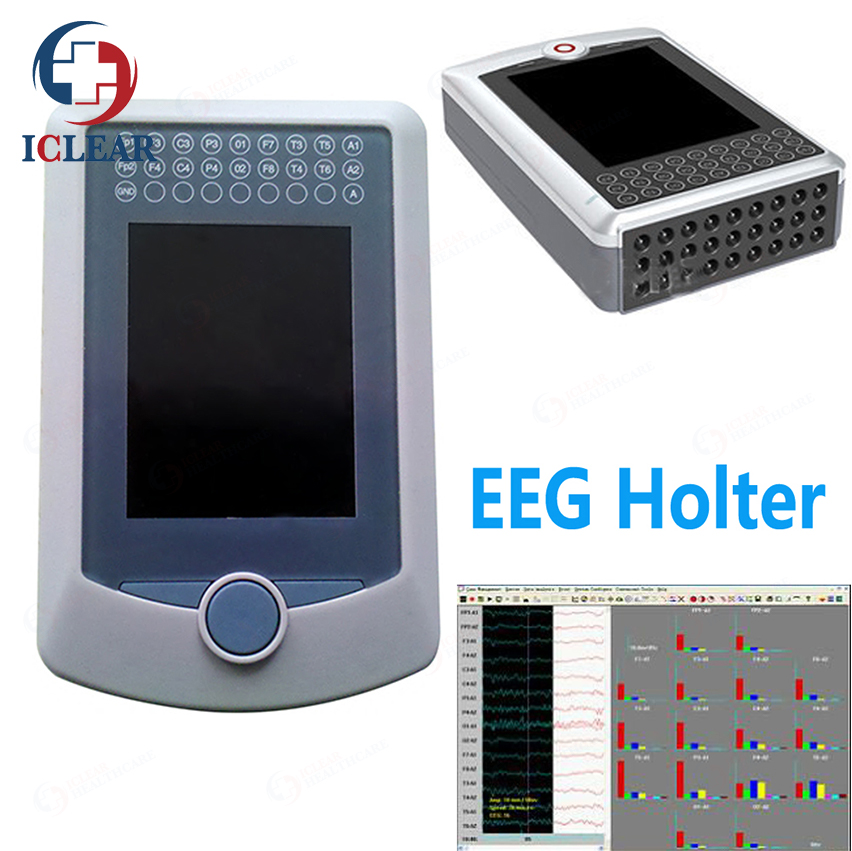

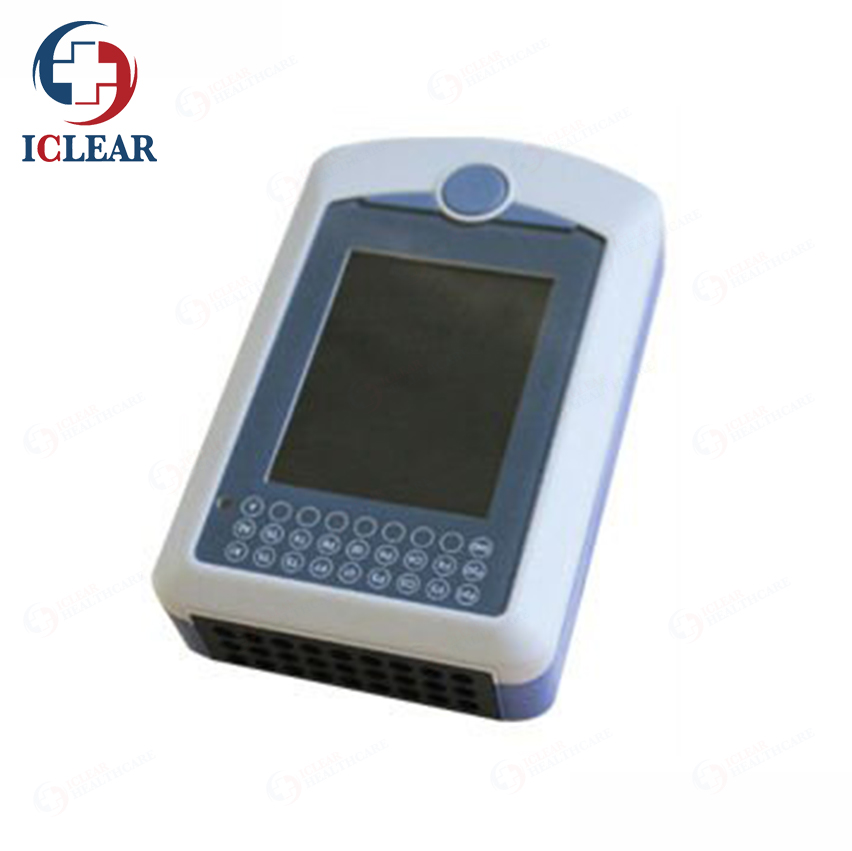

Portable Dynamic EEG System 16 Lead 24 Hours EEG Holter
CHO-CMS4100
Introduction
Dynamic EEG System consists of a record box and analysis software. The record box has an easy and simple operation interface. It achieves sync sampling for 16 channels of EEG waveform on an SD card and continuous recording for up to 24 hours. The stored EEG waveform can be replayed. The interface of analysis software is clear and convenient for operation, through which EEG waveform stored in record box can be replayed and analyzed.
Normal Working Conditions
a.The range of environment temperature:5°C~40°C
b. Relative humidity range:≤85%
c.Voltage range:direct current 3.5~4.2V
d.Atmospheric pressure range:70 kPa~106 kPa
Main Technical Index
Calibrating voltage:sine signal 5mm/50uv;deviation:±5%;
Sensitivity:10uV/mm±5%
Noise level:5uV
Common mode rejection ratio(CMRR):≥90dB6,Frequency Characteristics:Instrument input 0.8Hz~30 Hz ;-3 dB,50uV sinusoidal AC signal should not be distorted;
scanning speed: 30mm/s±5%
EEG waveforms of 16 leads display on the screen
A succession of more than 24 hours collecting record
Product security type: Built-in power type B
Transport and Storage Conditions
a)The range of Environment temperature: -20°C~55°C
b)Relative Humidity range: ≤85%
c)Atmospheric pressure range: 70kPa~106kPa
