Anterior Segment Analyzer
Scansys TA517

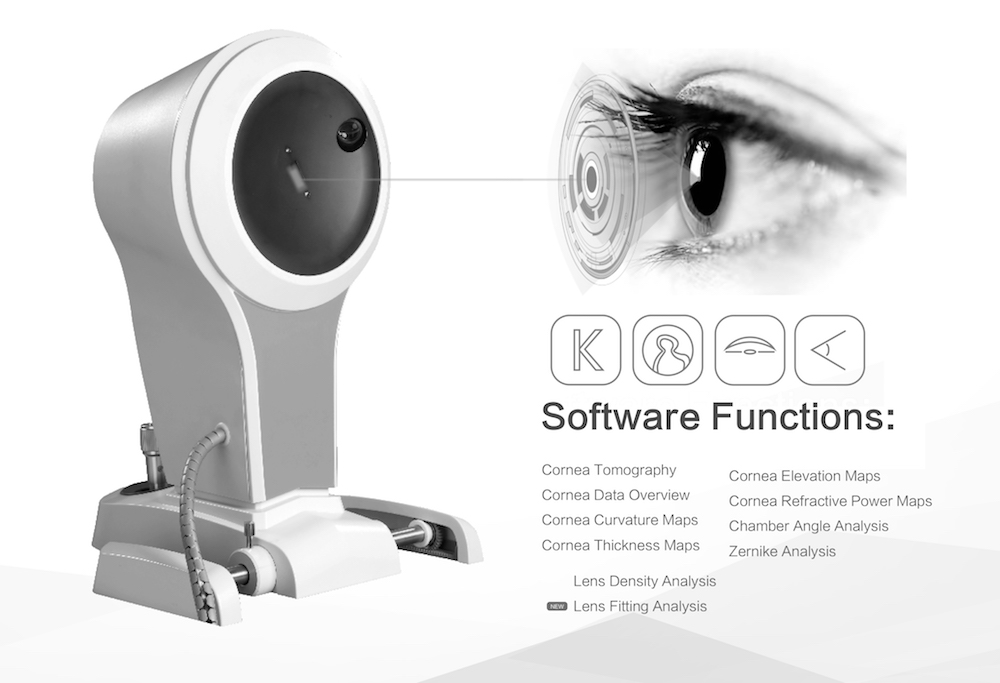

Scansys anterior segment analyzer provides a professional solution for front and back cornea diagnosis. The device applies Scheimpflug camera which can collect 35840 data points and generates 28 cornea tomography images in high resolution. Scansys can provide a series of topography maps including cornea curvature maps, cornea thickness maps, cornea elevation maps, etc. It provides good assistance to clinicians in anterior segment diagnosis. Meanwhile, Scansys also provides chamber angle analysis, anterior chamber depth, anterior chamber volume,etc. It facilitates
clinicians in glaucoma disease diagnosis.
Analytical Functions Introduction
Cornea Tomography
The cornea tomography images shot by Scheimpflug camera can give a general understanding to clinicians about patients' cornea conditions. As can be seen from above, the image displays whole cornea (from limbus to limbus) . The clinician can evaluate the patient's ACD and see if the shape of the iris is normal. Meanwhile, Scansys can calculate the density of selected area to help clinicians to see if the patient's has opacity in the lens.
Cornea Data Overview
Based on the images shot by Scheimpflug, Scansys can calculate a series of cornea data such as K value for front and back cornea, curvature values, etc to help clinicians has a further understanding of patient's cornea conditions.
4 Maps Refractive
The refractive maps shows sagittal curvature maps for front cornea, and elevation maps for front and back cornea as well as cornea thickness map and other parameters for cornea such as steep K value, flat K value, cornea apex thickness, pupil center position and thinnest position for cornea thickness. These data are helpful in most of the cornea disease screening.
Lens Fitting Analysis
Based on the topography maps generated by Scansys, the system can recommend several lenses suitable for patient's cornea and simulate the images of patient's wearing lenses with fluorescein observed by slit lamps. This will accelerate the work flow of lens fitting and save the trouble for patient to accept real fluorescein during lens fitting.
Chamber Angle Analysis
Scansys can calculate a chamber angle value based on the tomography images and its exclusive AOD graph gives a trend analysis for the distance between cornea back surface to iris. It also provides cornea volume, anterior chamber volume and anterior chamber depth calculation. These analyses is helpful to glaucoma diagnosis.
Lens Density Analysis
Scansys calculates the lens density value for cross section and longitudinal section which is helpful in cataract diagnosis.
